Turck

20 to 250 VAC, 10 to 300 VDC, Turck Inc. M1341000 Inductive Sensor, 15 MM Sensing Distance, 2-Wire

Short Description

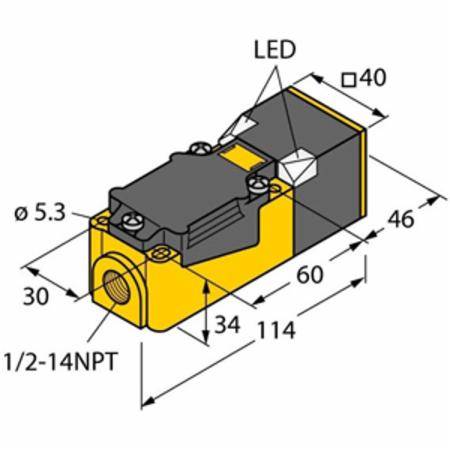

40 MM x 40 MM x 120 MM, 15 MM Sensing Distance, 20 to 250 VAC, 10 to 300 VDC, 0.02 KHz, Plastic, 1NO-1NC Output, 2-Wire, Inductive Sensor

Inductive Sensor; Operating Voltage 20 to 250 Volt AC, 10 to 300 Volt DC; Number of Wires 2; Switching Frequency 0.02 Kilo Hertz; Sensing Distance 15 Millimeter; Output Configuration 1NO-1NC; Material Plastic; Operating Temperature -25 to 70 Deg C; Size 40 Millimeter Width x 40 Millimeter Depth x 120 Millimeter Height; Enclosure IP67; Mounting Type Flush; Vibration Resistance 55 Hertz; Shock Resistance 30 Gram; Switching Status Indication LED (Red); Power-On Indication LED (Green)

MFG #: M1341000

EECO #: TUBI15CP40FZ3X2

Brand: Turck
UPC #: 047101066821
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111946
Material
Plastic
Number of Wires
2
Enclosure
IP67
Operating Voltage
20 to 250 Volt AC, 10 to 300 Volt DC
Output Configuration
1NO/1NC
Operating Temperature
-25 to 70 Deg C
Sensing Distance
15 Millimeter
Features
  • High Luminance Corner LED
  • Optimum View on Supply Voltage and Switching State from any Position
  • Terminal Chamber
  • Inductive Sensors Detect Metal Objects Contactless and Wear-Free
  • For this they use a High Frequency Electromagnetic AC Field that Interacts with the Target
  • Inductive Sensors Generate this Field via an RLC Circuit with a Ferrite Coil
TURCKIE00187_B49
TURCKIE00275_1_3
TURCKIINST00006
Qty Unit price
Ea
1 $122.70

Slqt
1 $122.70

Stpk
1 $122.70

Unit
1 $122.70
