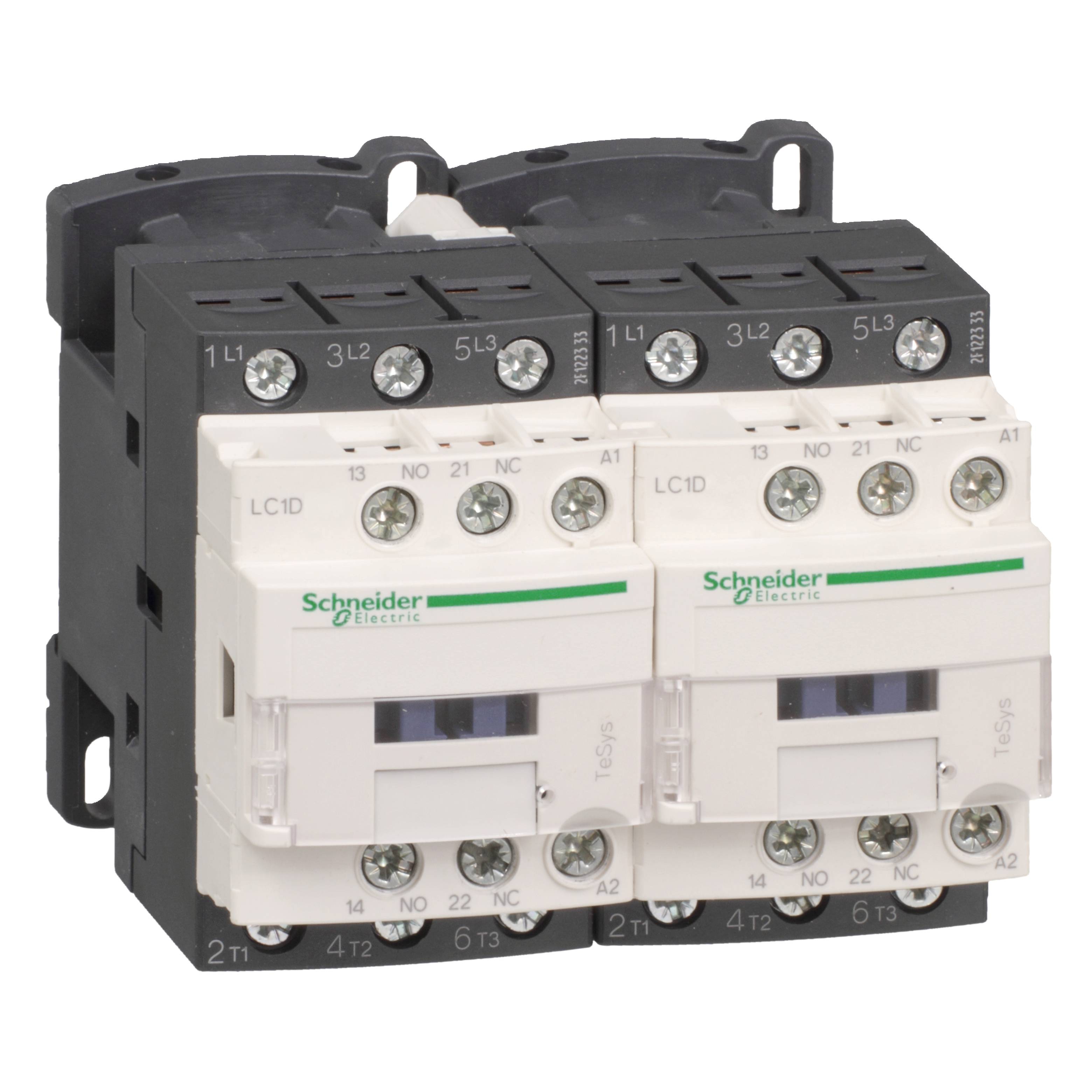

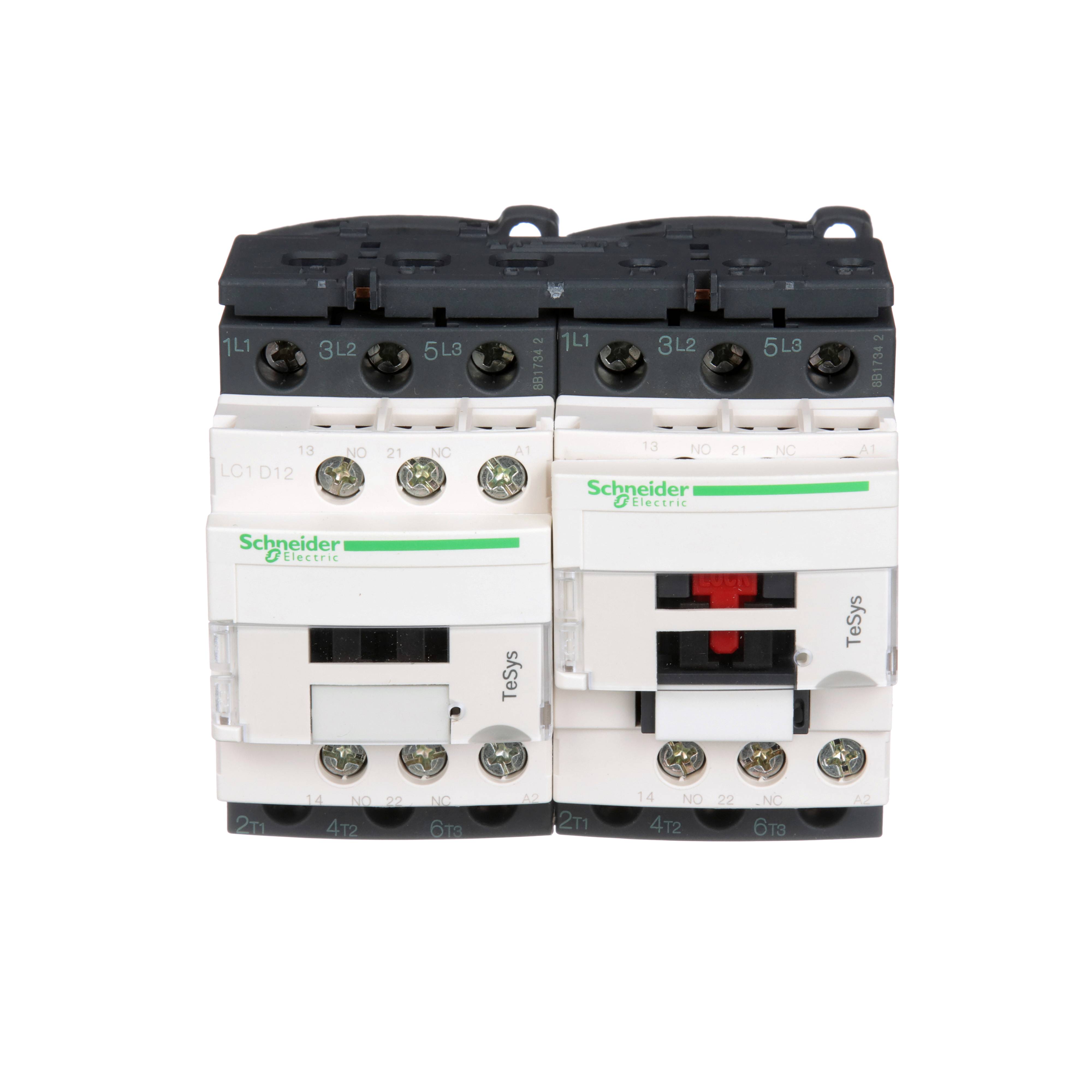

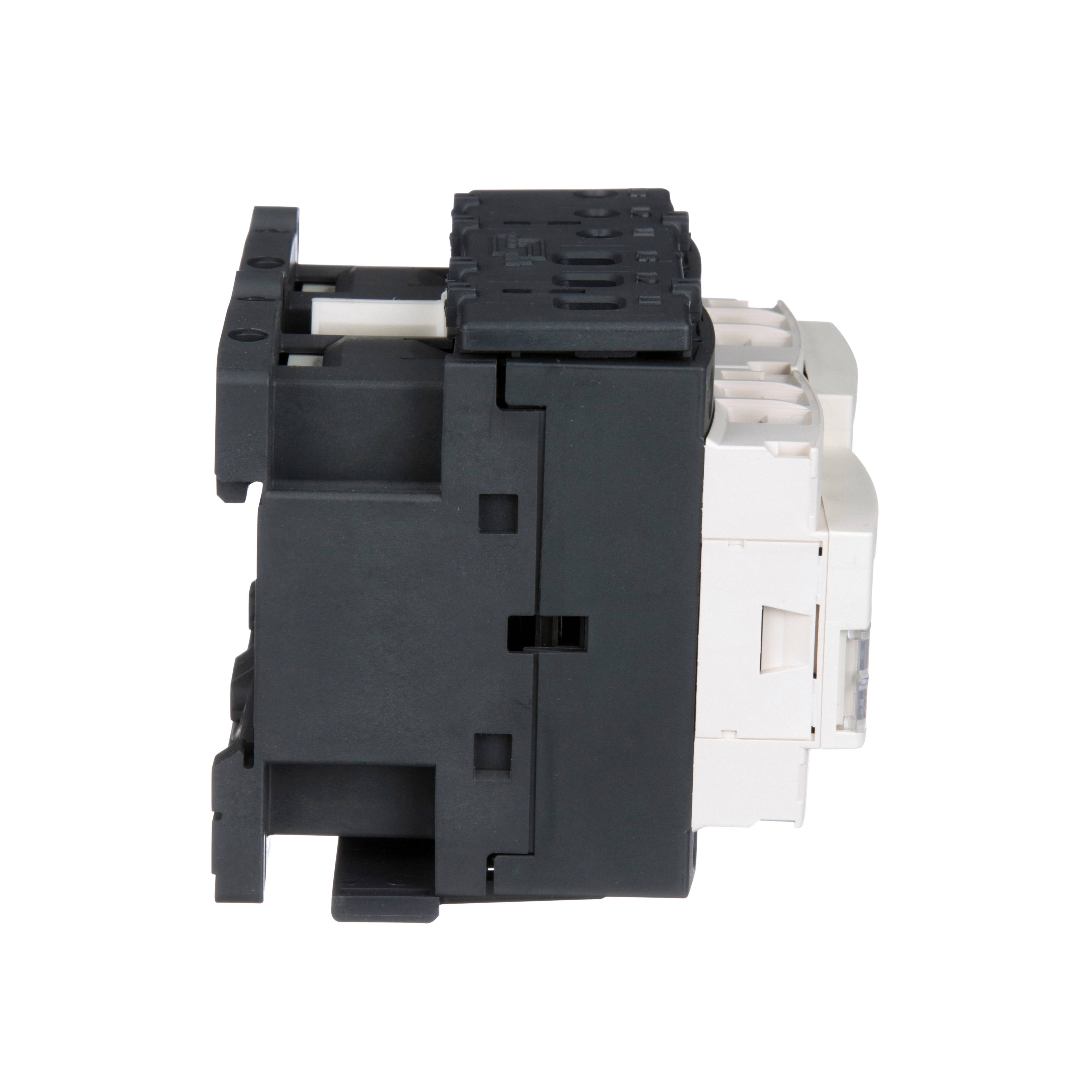

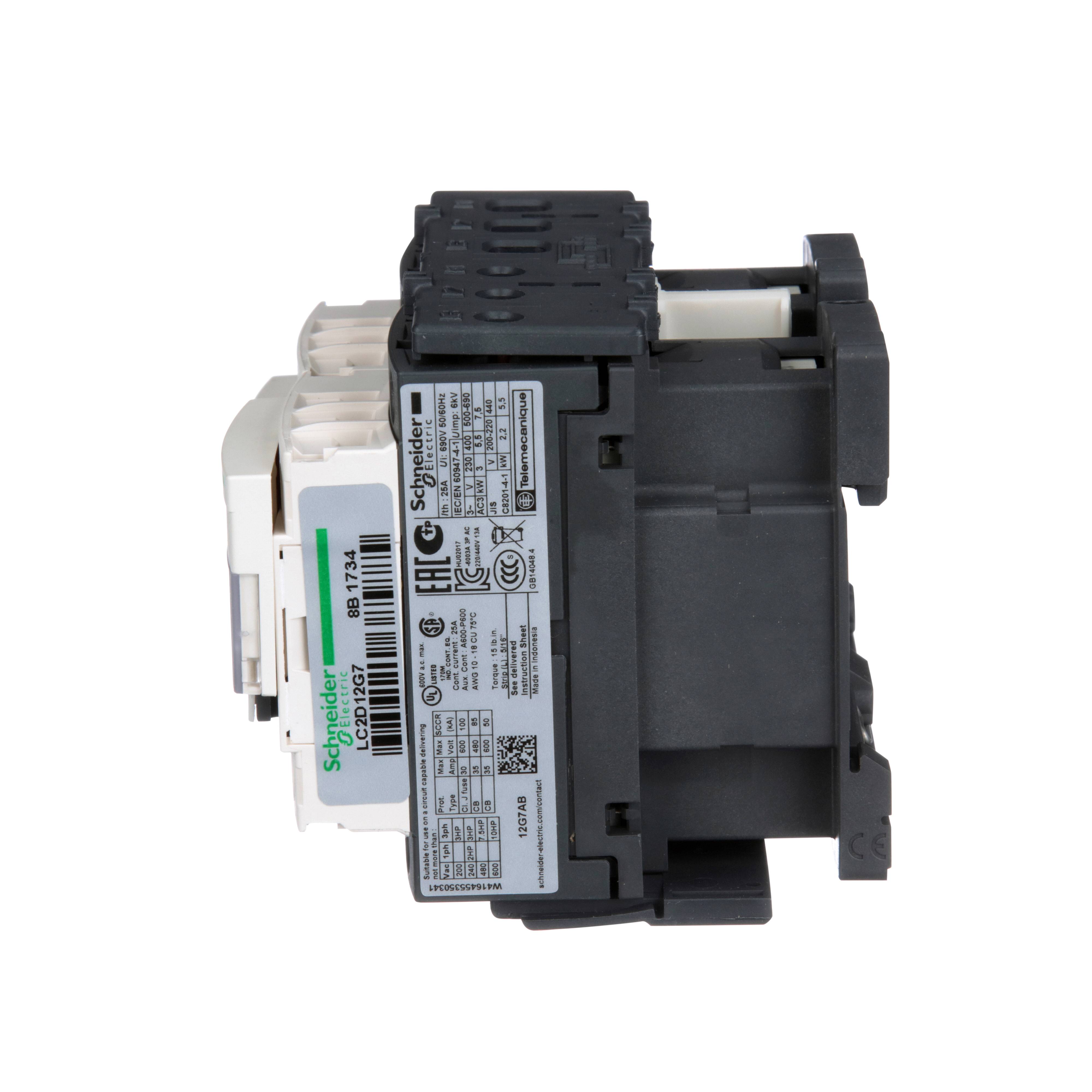

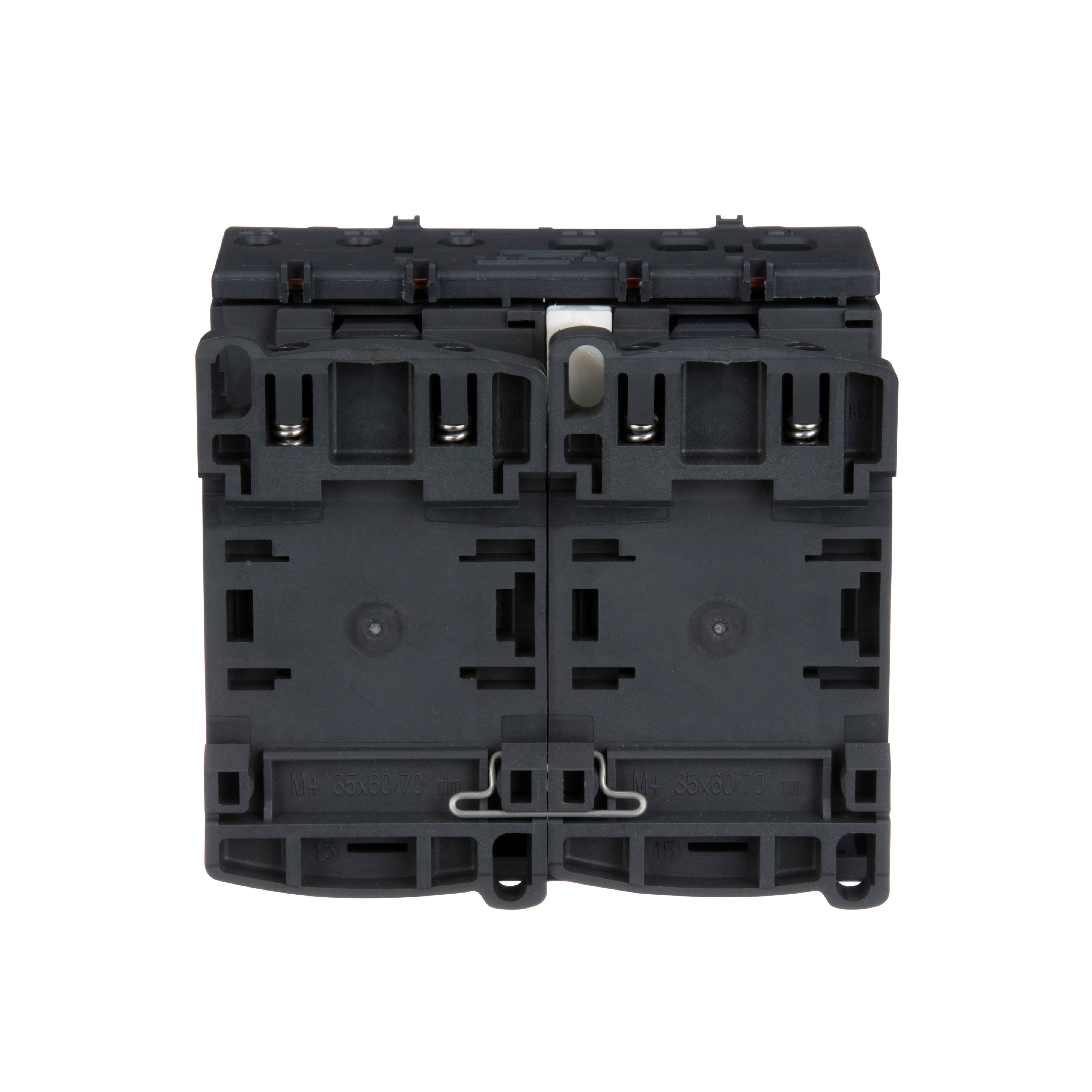

Square D™ TeSys™ D LC2D12G7 D-Line Mechanical Standard IEC Contactor, 120/690 VDC, 300 VDC V Coil, 12/25 A, 3NO Contact, 3 Poles

Short Description

Experience reliable performance and robust design with the Square D™ TeSys™ D LC2D12G7 D-Line Mechanical Standard IEC Contactor. Engineered for versatility, this contactor supports a wide voltage range and is perfect for demanding applications. Elevate your electrical systems with this high-quality solution!Enhanced by AI

Square D™ TeSys™ D IEC Contactor, D-Line Mechanical Standard, Series: LC2D, 120/690 VDC, 300 VDC Coil, 12/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 60 Hz, 0.36/1.56 W, Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 25/60 A at 600 VAC Contact, Screw Clamp, 77/86/90 mm, Screw Clamp Terminal, IP2X, 3600 cycles/hr Operating Cycles, -20 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 90 mm W x 86 mm D x 77 mm H

MFG #: LC2D12G7

EECO #: TQLC2D12G7

Brand: Square D
UPC #: 785901207429
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
Motor Control and Resistive Load Applications
Coil Voltage
120/690 VDC, 300 VDC
Contact Type
Reversing
Mounting Type
Rail/Surface
Terminal Type
Screw Clamp
Contact Rating
10/60 A at 600 VAC, 25/60 A at 600 VAC
Enclosure Type
IP2X
Connection Type
Screw Clamp
Frequency Rating
60
Contact Configuration
3NO
Operating Temperature
-20 to 60/-40 to 70
Size
77/86/90
Type
D-Line Mechanical Standard
Series
LC2D
Wattage
0.36/1.56
Includes
Protective Cover
Dimensions
90 mm W x 86 mm D x 77 mm H
Maximum Load Current
12/25
Features
  • 25 A at 60 deg C for power circuit and 10 A at 60 deg C for signaling circuit
IDW_DOCUMENT_26c71783689ad0cc8e84d92e3b09307af9285e620c571520507f78db1b06aaa0
IDW_DOCUMENT_4ba5bcb6a5e5fd52838854288edfe235d0a81ed57340e9dba8e91316207f324b
IDW_DOCUMENT_8b5aad9b5548b4be53b5e21854e43d9101a80bba7c618ee0e4aa523bf0187032
Qty Unit price
Ea
1 $193.38
