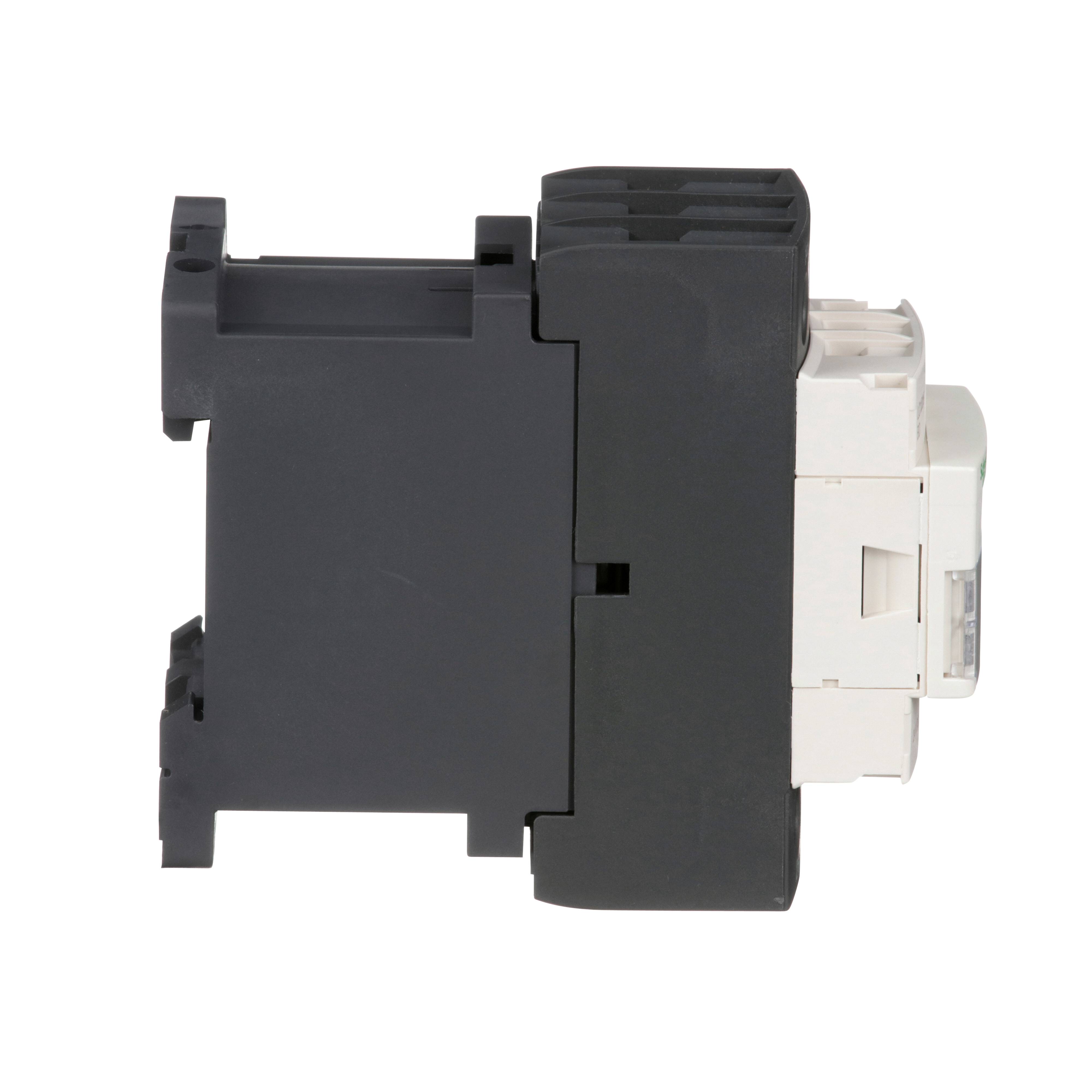

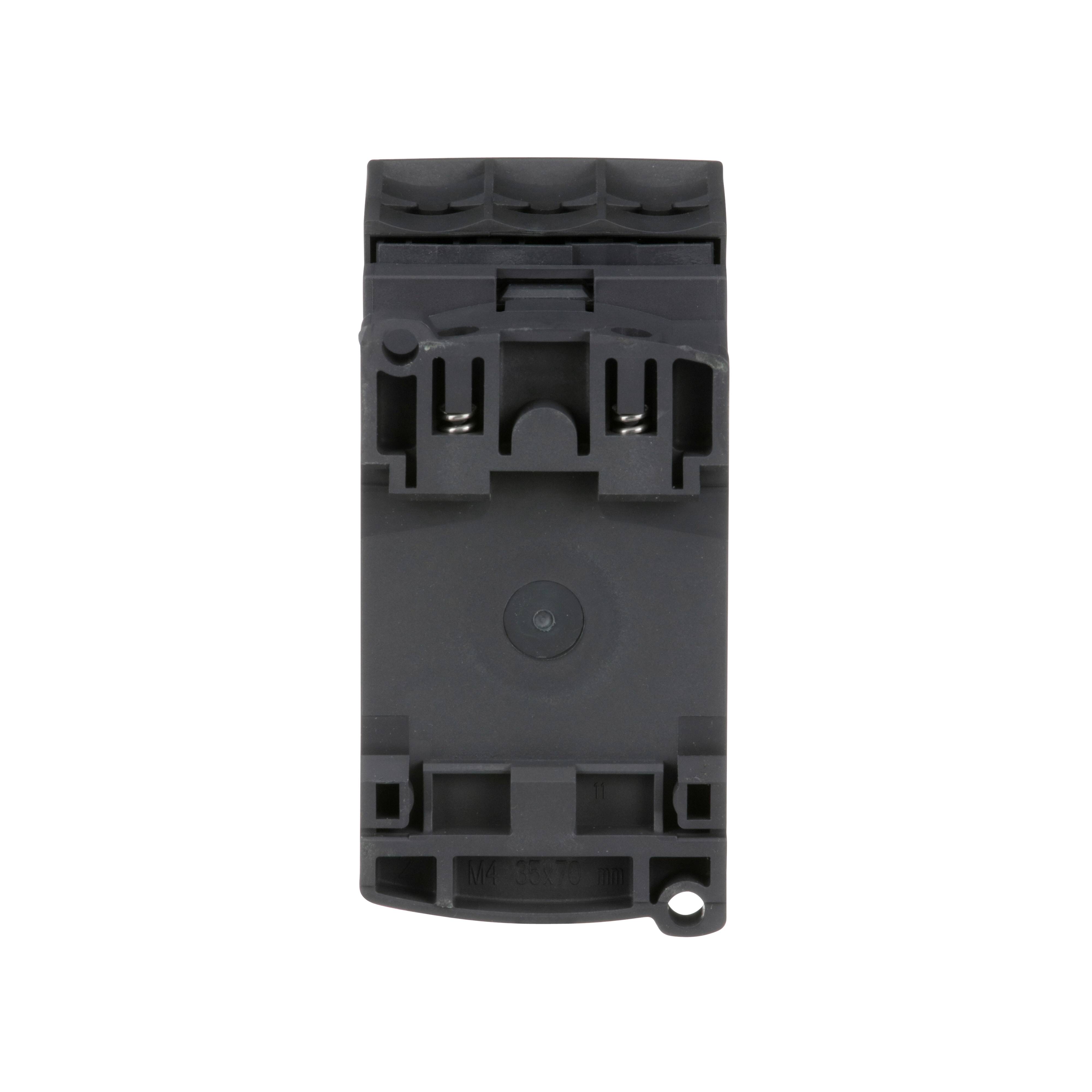

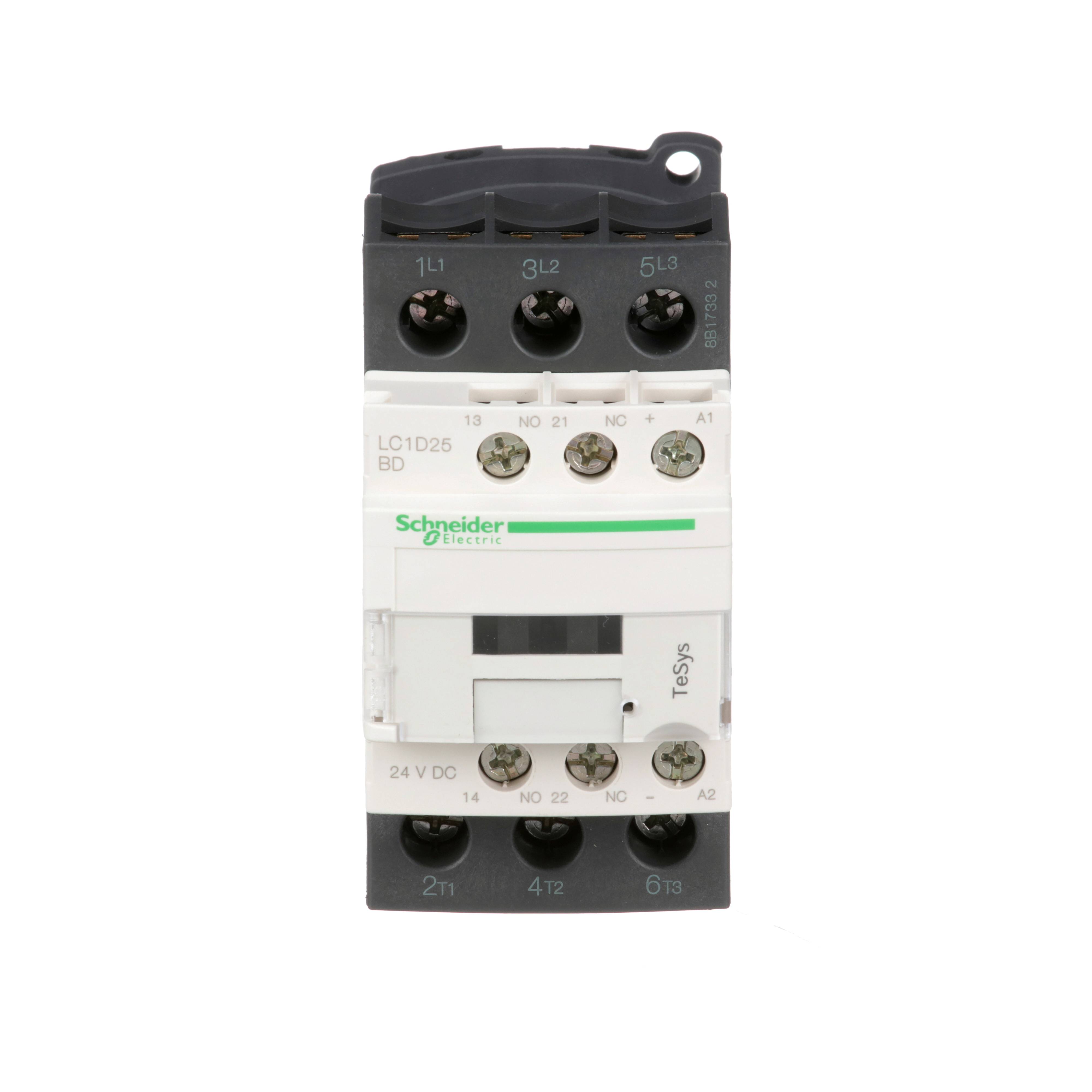

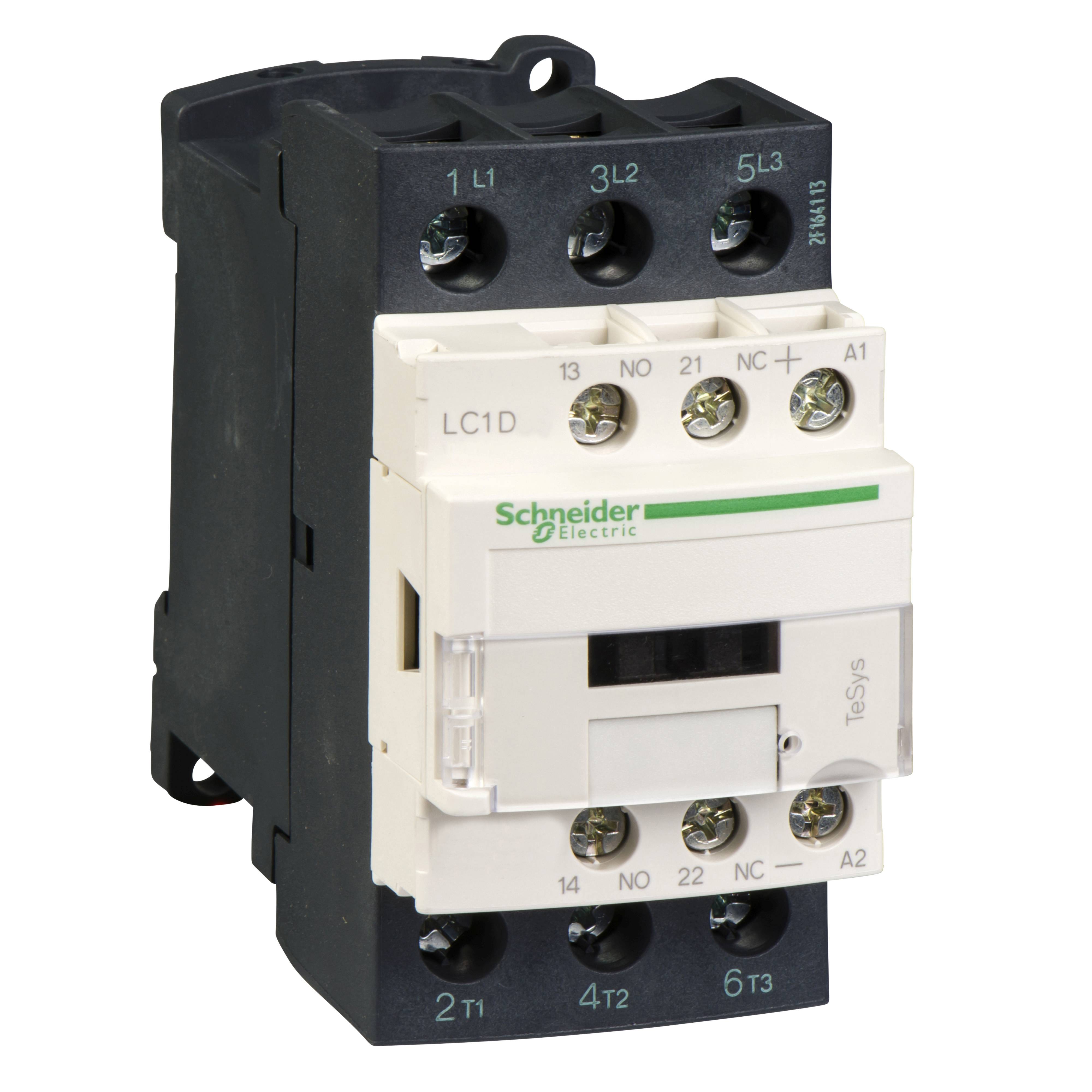

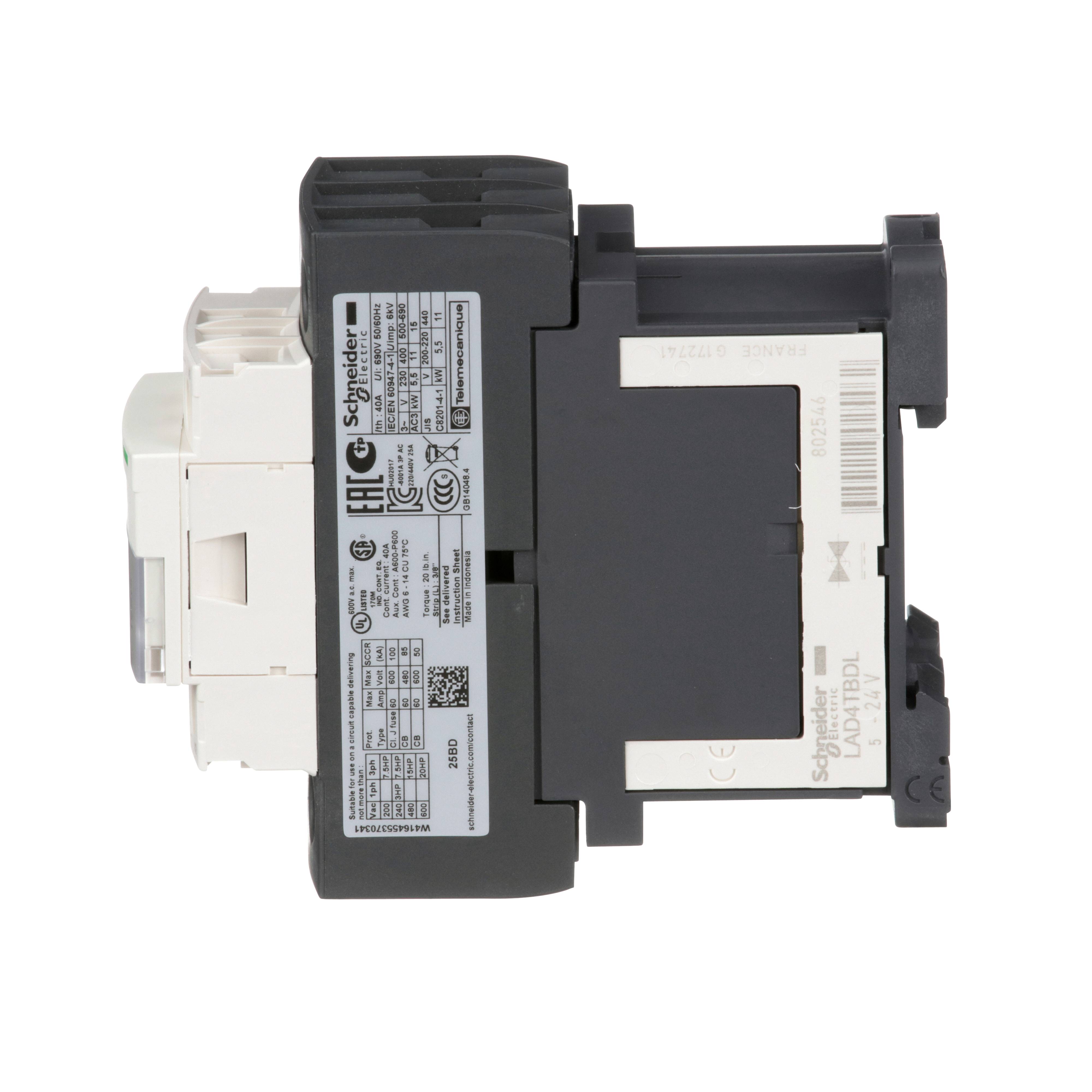

PrintSchneider Electric Square D™ TeSys™ D LC1D25BD Direct On-Line Standard IEC Contactor, 690 VAC, 24/300 VDC V Coil, 25/40 A, 3NO Contact, 3 Poles
Enhance your electrical control systems with the Schneider Electric Square D™ TeSys™ D LC1D25BD Contactor, designed for reliable performance at 690 VAC and 24/300 VDC. With a robust 25/40 A capacity and versatile 3NO contact configuration, it’s perfect for your industrial applications.Enhanced by AI
Schneider Electric Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 690 VAC, 24/300 VDC Coil, 25/40 A Maximum Load Current, 5.4 W Coil, 3 Pole, 50/60 Hz Frequency, 1.25/3.2 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 40/60 at 600 VAC Contact, Screw Clamp Connection, 101/45/85 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 101 mm D x 85 mm H Dimensions
EECO #: TQLC1D25BD
