Schneider Electric TeSys™ D LADN11 Auxiliary Contact Block, 690 VAC, 10 A, 2 Contacts

Short Description

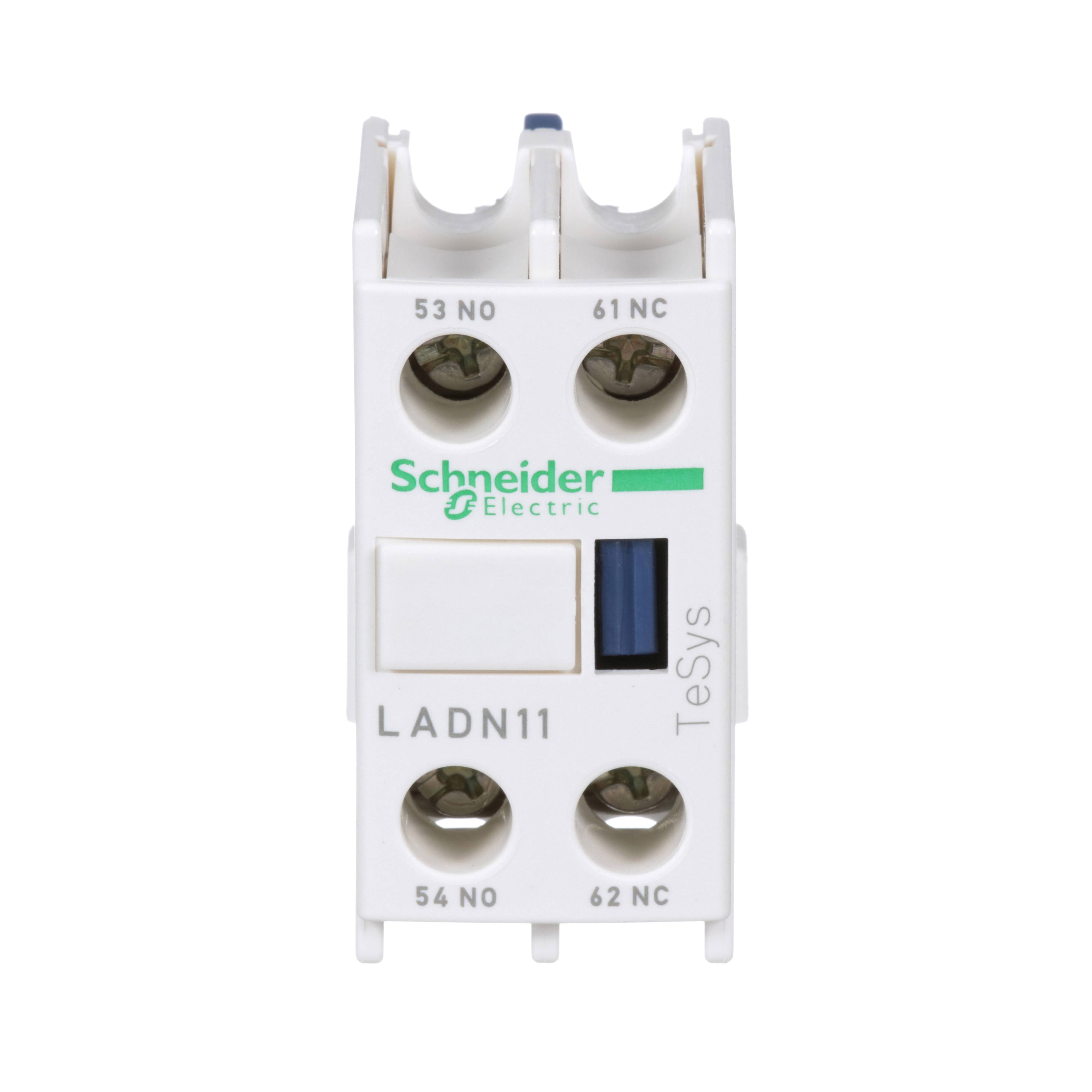

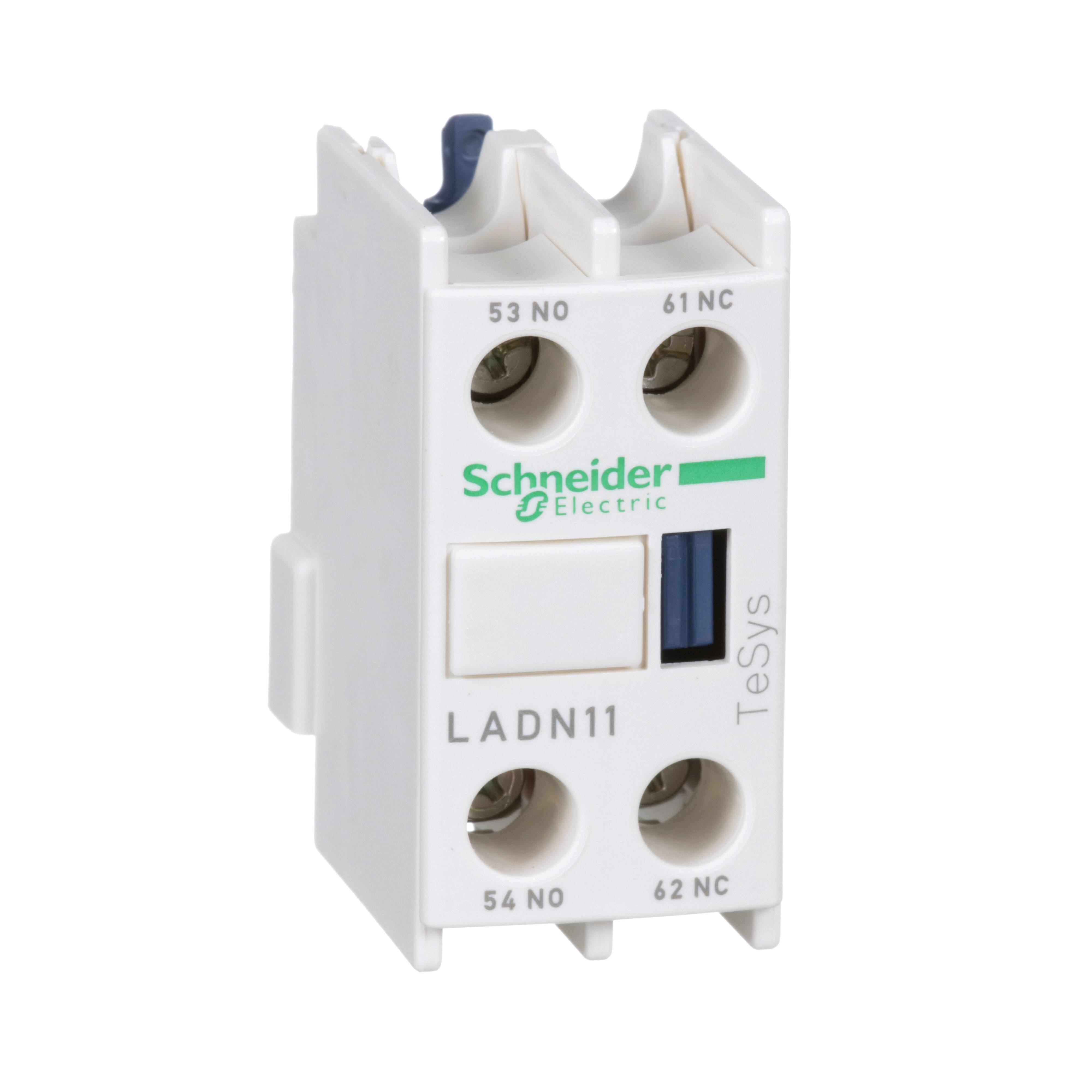

LADN11 is a Schneider Electric add-on auxiliary contact block for TeSys™ D and TeSys™ F contactors. It provides 1NO+1NC instantaneous contacts rated up to 10 A 690 V AC. It can be used in safety applications thanks to its NC certified mirror contact. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/Reach).

Schneider Electric TeSys™ D Auxiliary Contact Block, Series: LAD, 690 VAC, 10 A, 25 to 400 Hz Frequency, 2 Contacts, >10 MOhm Contact Resistance, Front Clip-On Mounting, 30000000 Cycles Operating Cycles, -5 to 60 deg C Operating, Environmental Conditions: -60 to 80 deg C Storage Temperature, For Use With: TeSys D™ CR1F Contactor

MFG #: LADN11

EECO #: TQLADN11

Brand: Schneider Electric
UPC #: 785901213659
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Mounting Type
Front Clip-On
Voltage Rating
690
Frequency Rating
25 to 400
Operating Temperature
-5 to 60
Environmental Conditions
-60 to 80 deg C Storage Temperature
Series
LAD
Amperage Rating
10
Number of Contacts
2
Suitable For Use With
TeSys D™ CR1F Contactor
Features
  • Screw clamp terminal
  • IP2X protection
  • Instantaneous operation
  • 3000 m operating altitude
  • 1.5 ms overlap time
  • 1.5 ms non-overlap time
  • GG fuse protection
  • 5 kA minimum switching current
  • 17 V minimum switching voltage
  • 250 A at <= 690 VDC conforming to IEC 60947-5-1, 140 A at <= 690 VAC conforming to IEC 60947-5-1 IRMS rated making capacity
  • 10 A at 60 deg C control circuit conventional free air thermal current
IDW_DOCUMENT_477a39a510ac65bccb2e6e3af58d8f7bfc41ed543c4ece989fa319106fe7993b
IDW_DOCUMENT_eb21b795a142dabfa1a068a191d45eea41df0f8865fac03091cf172446c9475a
Qty Unit price
Ea
1 $10.80
