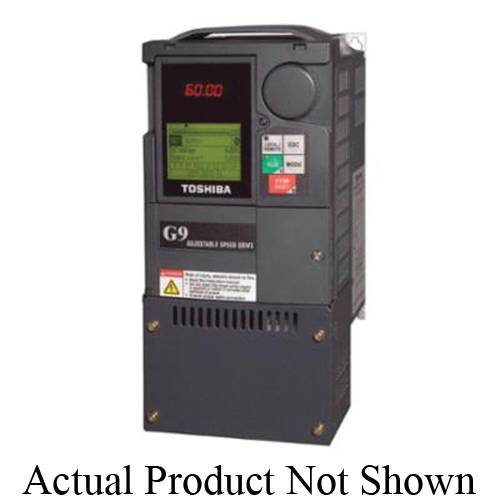

Toshiba VT130G9U4270 G9® Series Low Voltage Severe-Duty Adjustable Speed AC Drive Power Unit, 460 VAC, 35.7 A, 25 hp, 9.1 in W x 7.6 in D
Share Share Print Print
Toshiba

Toshiba VT130G9U4270 G9® Series Low Voltage Severe-Duty Adjustable Speed AC Drive Power Unit, 460 VAC, 35.7 A, 25 hp, 9.1 in W x 7.6 in D

Short Description

The G9 adjustable speed drive is the most advanced low voltage, severe duty drive ever offered by Toshiba. Designed with the end-user in mind, this drive combines a rugged, proven power platform with the latest in power devices and an advanced micro-processor to provide users with a smarter, stronger, more reliable drive with flexible application control.

Toshiba Adjustable Speed AC Drive Power Unit, Low Voltage Severe-Duty, Series: G9® Series, 460 VAC, 35.7 A, 25 hp, 9.1 in Width, 7.6 in Depth, 19.3 in Height, NEMA 1 Enclosure, LED/LCD Display

MFG #: VT130G9U4270

EECO #: TOVT130G9U4270

Brand: Toshiba
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26111503
Application
Manufacturing, Mining, Service/Repair, Oilfield, Quarry, Metal and Timber
Display Type
LED/LCD
Enclosure Type
NEMA 1
Voltage Rating
460
Type
Low Voltage Severe-Duty
Depth
7.6
Width
9.1
Height
19.3
Series
G9® Series
Includes
Ground Lug and Door-Mounted Electronic Operator Interface
Horsepower
25
Amperage Rating
35.7
Features
  • Eight programmable discrete inputs
  • Three programmable discrete outputs
  • Regenerative power ride-through
  • Two-wire/four-wire RS485
  • Auto-restart operation/catch a spinning motor
  • Built-in dynamic braking circuit
  • Built-in real-time clock
  • Save, restore and clone multiple drive settings
  • Superior control allows the user ultimate flexibility
Toshiba_348XDSB41AP_Catalog
Toshiba_AS1P4075AA_Catalog
