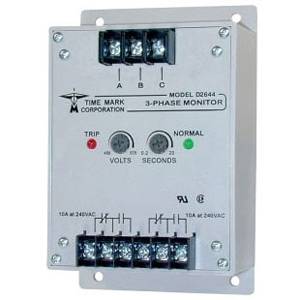

Time Mark Corporation C2644 Power Monitor

Short Description

480 VAC, 3-Phase, 60 Hz, DPDT, ABS Enclosure, Surface Mount, Phase Reversal, Phase Loss, Power Monitor

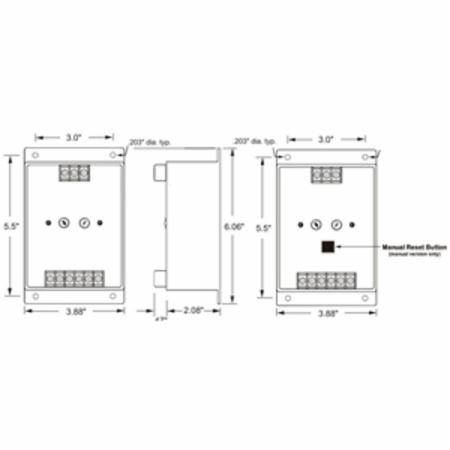

Power Monitor; Type Phase Reversal, Phase Loss; Voltage Rating 480 Volt AC, 3-Phase; Frequency Rating 60 Hertz; Contact Configuration DPDT; Reset Type Automatic; Mounting Surface; Operating Temperature -20 to 131 Deg F; Approval UL, CSA; Overall Dimension 3.88 Inch Width x 2.08 Inch Depth x 5.5 Inch Height; Power Consumption 4.5 Watt; Enclosure Material ABS Plastic; Response Time 0.2 to 20 Second; Dead Band 2 Percent; Contact Rating 10 Amp at 240 Volt AC (Resistive); Humidity Tolerance 97 Percent

MFG #: C2644

EECO #: TMC2644

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Reset Type
Automatic
Voltage Rating
480 Volt AC, 3-Phase
Frequency Rating
60 Hertz
Mounting
Surface
Contact Configuration
DPDT
Operating Temperature
-20 to 131 Deg F
Type
Phase Reversal, Phase Loss
Features
  • The Model 2644 3-Phase Monitor Continuously Monitors 3-Phase Wye or Delta Systems for Abnormal Conditions
  • The Solid-State Electronic Sensing Circuitry Drives an Internal DPDT Relay, Allowing the Model 2644 to Operate Two Motor Control Circuits or a Control Circuit and an Alarm Circuit
  • An Adjustable Trip Delay Reduces or Eliminates Nuisance Tripping Caused by Momentary Voltage Fluctuations on Motor Start-Up
  • An Optional Restart Delay Gives Approximately a 3.5-Minute Delay When the Relay Drops Out, to Allow Compressor Head Pressures to Bleed Off, in the Event of Short-Term Power Failures
  • Made in USA
TIMEMKE00012_1_2
Qty Unit price
Ea
1 $95.00

Slqt
1 $95.00

Stpk
1 $95.00

Unit
1 $95.00
