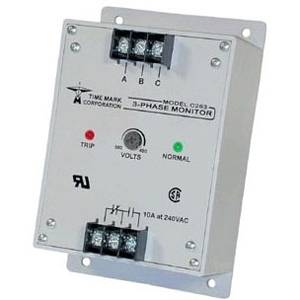

Time Mark Corporation C263 Power Monitor

Short Description

480 VAC, 3-Phase, 60 Hz, SPDT, ABS Enclosure, Surface Mount, Phase Reversal, Phase Loss, Power Monitor

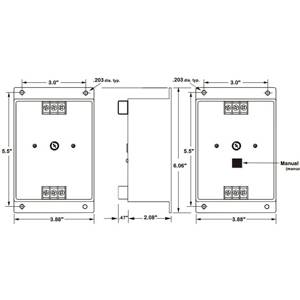

Power Monitor; Type Phase Reversal, Phase Loss; Voltage Rating 480 Volt AC, 3-Phase; Frequency Rating 60 Hertz; Contact Configuration SPDT; Reset Type Automatic; Mounting Surface; Operating Temperature -20 to 131 Deg F; Approval UL, CSA; Overall Dimension 3.88 Inch Width x 2.08 Inch Depth x 5.5 Inch Height; Power Consumption 4.5 Watt; Enclosure Material ABS Plastic; Response Time 50 Millisecond; Dead Band 2 Percent; Contact Rating 10 Amp at 240 Volt AC (Resistive); Humidity Tolerance 97 Percent

MFG #: C263

EECO #: TMC263

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Reset Type
Automatic
Voltage Rating
480 Volt AC, 3-Phase
Frequency Rating
60 Hertz
Mounting
Surface
Contact Configuration
SPDT
Operating Temperature
-20 to 131 Deg F
Type
Phase Reversal, Phase Loss
Features
  • The Model 263 Continuously Monitors 3-Phase Power Systems for Phase Loss, Low Voltage and Phase Reversal
  • The Monitor Consists of a Solid-State Sensing Circuit, Driving an Electromechanical Relay
  • Applying Correct Voltage and Phase Rotation Energizes the Relay
  • When Properly Adjusted a Fault Condition will Cause the Relay to De-Energize, Even When Regenerated Voltage is Present
  • Made in USA
TIMEMKE00011_1_2
Qty Unit price
Ea
1 $77.00
