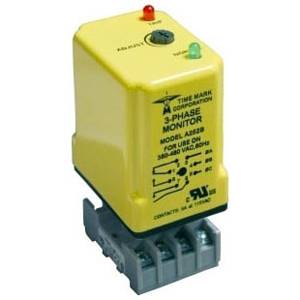

Time Mark Corporation A252B Power Monitor

Short Description

480 VAC, 3-Phase, 60 Hz, SPDT, ABS Enclosure, 8-Pin Socket Mount, Phase Reversal, Phase Loss, Power Monitor

Power Monitor; Type Phase Reversal, Phase Loss; Voltage Rating 480 Volt AC, 3-Phase; Frequency Rating 60 Hertz; Contact Configuration 1-SPDT; Reset Type Automatic; Mounting 8-Pin Socket; Enclosure NEMA 1; Operating Temperature -20 to 131 Deg F; Approval UL, CSA; Overall Dimension 1.75 Inch Width x 3.52 Inch Depth; Power Consumption 1.5 Watt; Enclosure Material ABS Plastic; Response Time 50 Millisecond; Dead Band 2 Percent; Voltage Sensing Under Voltage Protection; Contact Rating 5 Amp at 115 Volt AC (Resistive); Humidity Tolerance 97 Percent

MFG #: A252B

EECO #: TMA252B

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Reset Type
Automatic
Voltage Rating
480 Volt AC, 3-Phase
Frequency Rating
60 Hertz
Mounting
8-Pin Socket
Enclosure
NEMA 1
Contact Configuration
1-SPDT
Operating Temperature
-20 to 131 Deg F
Type
Phase Reversal, Phase Loss
Features
  • The Model 252 3-Phase Monitor Continuously Monitors 3-Phase Power Lines for Abnormal Conditions
  • When Properly Adjusted, the Model 252 Monitor will Detect Phase Loss on a Loaded Motor Even When Regenerated Voltage is Present
  • When the Fault is Corrected the Model 252 will Automatically Reset
  • The Device Consists of a Solid-State Voltage and Phase-Angle Sensing Circuit, Driving an Electromechanical Relay with One SPDT and One SPST Contact
  • When Correct Voltage and Phase Rotation are Applied, the Internal Relay will Energize
  • A Fault Condition will De-Energize the Relay
  • Made in USA
TIMEMKE00009_1_2
Qty Unit price
Ea
1 $71.00

Slqt
1 $71.00

Stpk
1 $71.00

Unit
1 $71.00
