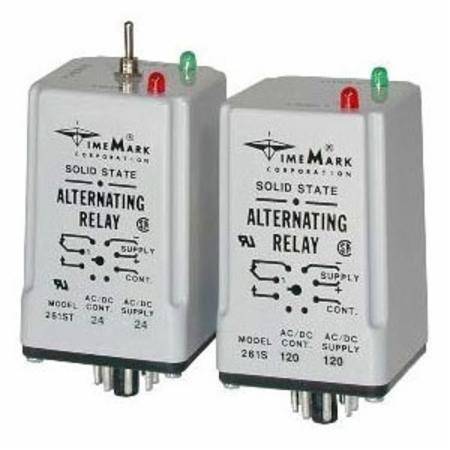

Time Mark Corporation 261ST-120V Solid State Alternating Relay

Short Description

120 VAC/VDC, 0.01 A, 8-Pin Socket, Solid State Alternating Relay

Solid State Alternating Relay; Input Voltage 120 Volt AC/DC; Load Current 0.01 Amp; Operating Temperature -20 to 140 Deg F; Mounting 8-Pin Socket; Size 1.95 Inch Width x 3.77 Inch Depth; Approval UL, CSA; Switch Type Toggle; Operating Duty Continuous; Enclosure Material ABS Plastic; Humidity Tolerance 0 to 97 Percent

MFG #: 261ST-120V

EECO #: TM261ST120

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122333
Approval
UL, CSA
Load Current
0.01 Amp
Mounting
8-Pin Socket
Operating Temperature
-20 to 140 Deg F

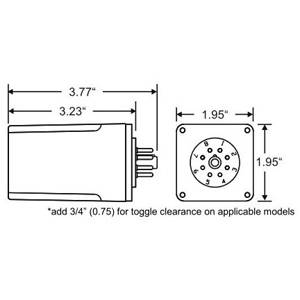

Size
1.95 Inch Width x 3.77 Inch Depth
Input Voltage
120 Volt AC/DC
Features
  • The Model 261 Series Alternating Relay is Designed for Duplex Pumping Systems Where it is Desirable to Equalize Pump Run Time
  • The Solid-State Alternating Circuit Drives an Internal Electromechanical Relay
  • A Continuous Power Source and Control Switch are Required
  • The Control Switch (Float, Pressure or Other Isolated Contact) is Connected Between the L1 Terminal and the Control Terminal
  • Each Time the Control Switch is Opened the Output Contacts will Change States
  • Indicator Lights on the Case Show the Internal Relay Status
  • Made in USA
TIMEMKE00008_1_2
Qty Unit price
Ea
1 $52.00

Slqt
1 $52.00

Stpk
1 $52.00

Unit
1 $52.00
