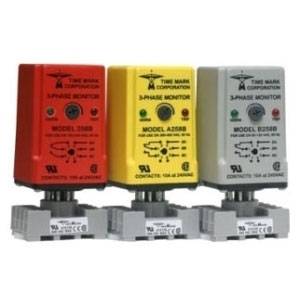

Time Mark Corporation 258B240V Phase Monitor
Share Share Print Print
Time Mark

Time Mark Corporation 258B240V Phase Monitor

Short Description

208/240 VAC 60 Hz 3-Phase, SPDT, ABS Enclosure, 8-Pin Socket Mount, Phase Monitor

Phase Monitor; Circuit Type 3-Phase; Voltage Rating 208/240 Volt AC; Frequency Rating 60 Hertz; Power Rating 2.4 Watt; Output Type Relay SPDT up to 240 Volt AC 60 Hertz 10 Amp Maximum; Operating Temperature -20 to 131 Deg F; Auxiliary Supply 160 to 240 Volt AC; Contact Rating 10 Amp at 240 Volt AC; Mounting 8-Pin Socket; Weight 5 Ounce; Size 1.95 Inch Length x 1.95 Inch Width x 3.8 Inch Height; Application Motor Control, Phase Loss Alarm; Approval UL, CSA; Case Color Yellow; Enclosure Material ABS Plastic; Enclosure Rating NEMA 1; Response Time 50 Millisecond; Dead Band 2 Percent; Voltage Sensing Under Voltage; Phase Sensing Phase Reversal, Phase Loss, Protection; Humidity Tolerance 97 Percent

MFG #: 258B240V

EECO #: TM258B240V

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122300
Approval
UL, CSA
Application
Motor Control, Phase Loss Alarm
Output Type
Relay SPDT up to 240 Volt AC 60 Hertz 10 Amp Maximum
Circuit Type
3-Phase
Frequency Rating
60 Hertz
Mounting
1.95 Inch Length x 1.95 Inch Width x 3.8 Inch Height
Auxiliary Supply
160 to 240 Volt AC
Features
  • The Model 258 Continuously Monitors 3-Phase Power Lines for Abnormal Conditions
  • When Properly Adjusted the Model 258 Monitor will Detect Phase Loss on a Loaded Motor Even When Regenerated Voltage is Present
  • This Device Consists of a Solid-State Voltage and Phase Angle Sensing Circuit, Driving an Electromechanical Relay
  • When Correct Voltage and Phase Rotation are Applied the Internal Relay will Energize
  • A Fault Condition will De-Energize the Relay
  • When the Fault is Corrected, the Monitor will Automatically Reset
  • Made in USA
