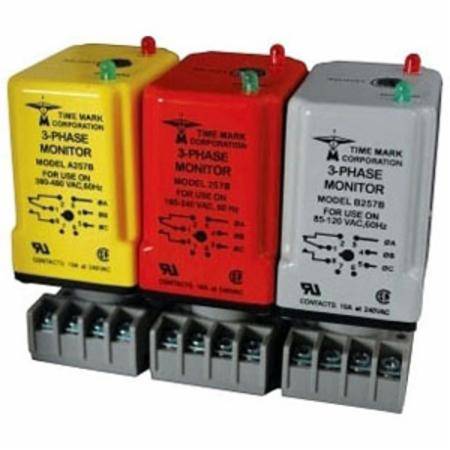

Time Mark Corporation 257B Power Monitor

Short Description

208/240 VAC, 3-Phase, 60 Hz, ABS Enclosure, 8-Pin Socket Mount, Phase Reversal, Phase Loss, Power Monitor

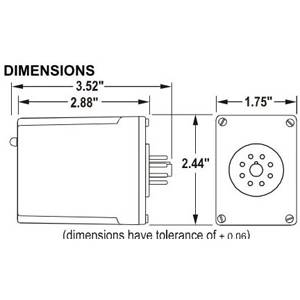

Power Monitor; Type Phase Reversal, Phase Loss; Voltage Rating 208/240 Volt AC, 3-Phase; Frequency Rating 60 Hertz; Reset Type Automatic; Mounting 8-Pin Socket; Enclosure NEMA 1; Operating Temperature -20 to 131 Deg F; Approval UL, CSA; Overall Dimension 1.75 Inch Width x 3.52 Inch Depth; Power Consumption 2.4 Watt; Case Color Red; Enclosure Material ABS Plastic; Response Time 50 Millisecond; Dead Band 2 Percent; Voltage Sensing Under Voltage Protection; Output Contact SPDT 10 Amp at 240 Volt AC (Resistive)

MFG #: 257B

EECO #: TM257B

Brand: Time Mark
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121106
Reset Type
Automatic
Voltage Rating
208/240 Volt AC, 3-Phase
Frequency Rating
60 Hertz
Mounting
8-Pin Socket
Enclosure
NEMA 1
Operating Temperature
-20 to 131 Deg F
Type
Phase Reversal, Phase Loss
Features
  • The Model 257 Continuously Monitors 3-Phase Power Lines for Abnormal Conditions
  • When Properly Adjusted, the Model 257 Monitor will Detect Phase Loss on a Loaded Motor Even When Regenerated Voltage is Present
  • This Device Consists of a Solid-State Voltage and Phase Angle Sensing Circuit, Driving an Electromechanical Relay
  • When Correct Voltage and Phase Rotation are Applied, the Internal Relay will Energize
  • A Fault Condition will De-Energize the Relay
  • When the Fault is Corrected, the Monitor will Automatically Reset
  • Made in USA
