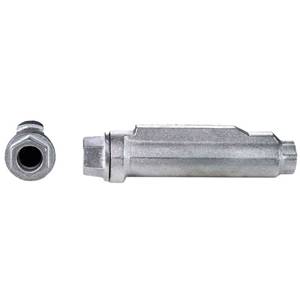

T&B® XJG24-TB Conduit Expansion Coupling With Internal Bonding Jumper, 3/4 in, For Use With Rigid Conduits, Malleable Iron, Zinc Plated

Short Description

T&B® pioneered many industry standard rigid fittings including Chase® nipples and Erickson® couplings. The innovation continues with BlueKote® conduit bodies and many new features and products for ordinary and hazardous locations.

T&B® Conduit Expansion Coupling, Series: XJG, 3/4 in, For Use With: Rigid Conduits, Malleable Iron, Zinc Plated, 2.43 in OD x 10 in L x 2.75 in H

MFG #: XJG24-TB

EECO #: TBXJG24TB

Brand: Thomas & Betts
UPC #: 786210880822
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39131707
Used On
Rigid Conduit
Approval
UL
Material
Malleable Iron
Trade Size
3/4 inch
Application
For contraction and expansion of a conduit run without reducing the mechanical or bonding integrity of the raceway
Ground Type
Internally Grounded
Size
3/4
Series
XJG
Diameter
2.43 Inch
Dimensions
2.43 in OD x 10 in L x 2.75 in H
Maximum Movement
4 Inch
Suitable For Use With
Rigid Conduits
Constructional Feature
Rain Tight
Features
  • True internal bonding jumper-no external grounding strap required, tamper proof internal jumper protected from the environment
  • Exceeds code requirements for long conduit runs to permit linear movement
  • No disassembly necessary to install
  • Fast, simple and requires fewer steps
  • Internal bonding jumper tinned copper braid, packing PTFE/synthetic fiber material
  • PTFE/synthetic fiber material packing
  • 4 in movement
OCLINCE01463_33
THOBETE39439_1_2
THOBETINST00377
IDW_DOCUMENT_7fffd522ea2932e1231b5f2e7c4b6d48d184a6282f3505f02f12d11b16652348
Qty Unit price
Ea
1 $107.66

Slqt
1 $107.66

Stpk
1 $107.66

Unit
1 $107.66
