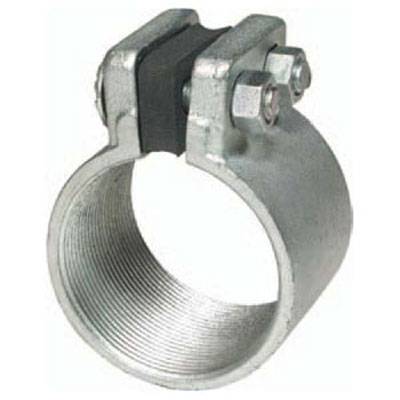

T&B® SPCP250 Split Coupling With Neoprene Gasket, 2-1/2 in, For Use With Rigid/IMC Conduits, Malleable Iron, Zinc Plated
Share Share Print Print
ABB

T&B® SPCP250 Split Coupling With Neoprene Gasket, 2-1/2 in, For Use With Rigid/IMC Conduits, Malleable Iron, Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Split Coupling, Series: SPCP, 2-1/2 in, For Use With: Rigid/IMC Conduits, Malleable Iron, Zinc Plated, 3-1/16 in W

MFG #: SPCP250

EECO #: TBSPCP250

Brand: Thomas & Betts
UPC #: 786210928562
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39131707
Material
Malleable Iron
Application
For joining threaded conduit in retrofit installations or in tight areas
Size
2-1/2
Series
SPCP
Dimensions
3-1/16 in W
Suitable For Use With
Rigid/IMC Conduits
Features
  • Fast installation
  • Neoprene gasket provides a concretetight seal
  • Joins threaded conduit even when the conduit can't rotate
  • Approved for direct burial applications
  • To join threaded conduits in retrofit installations or in tight areas
  • Furnished with two screws
