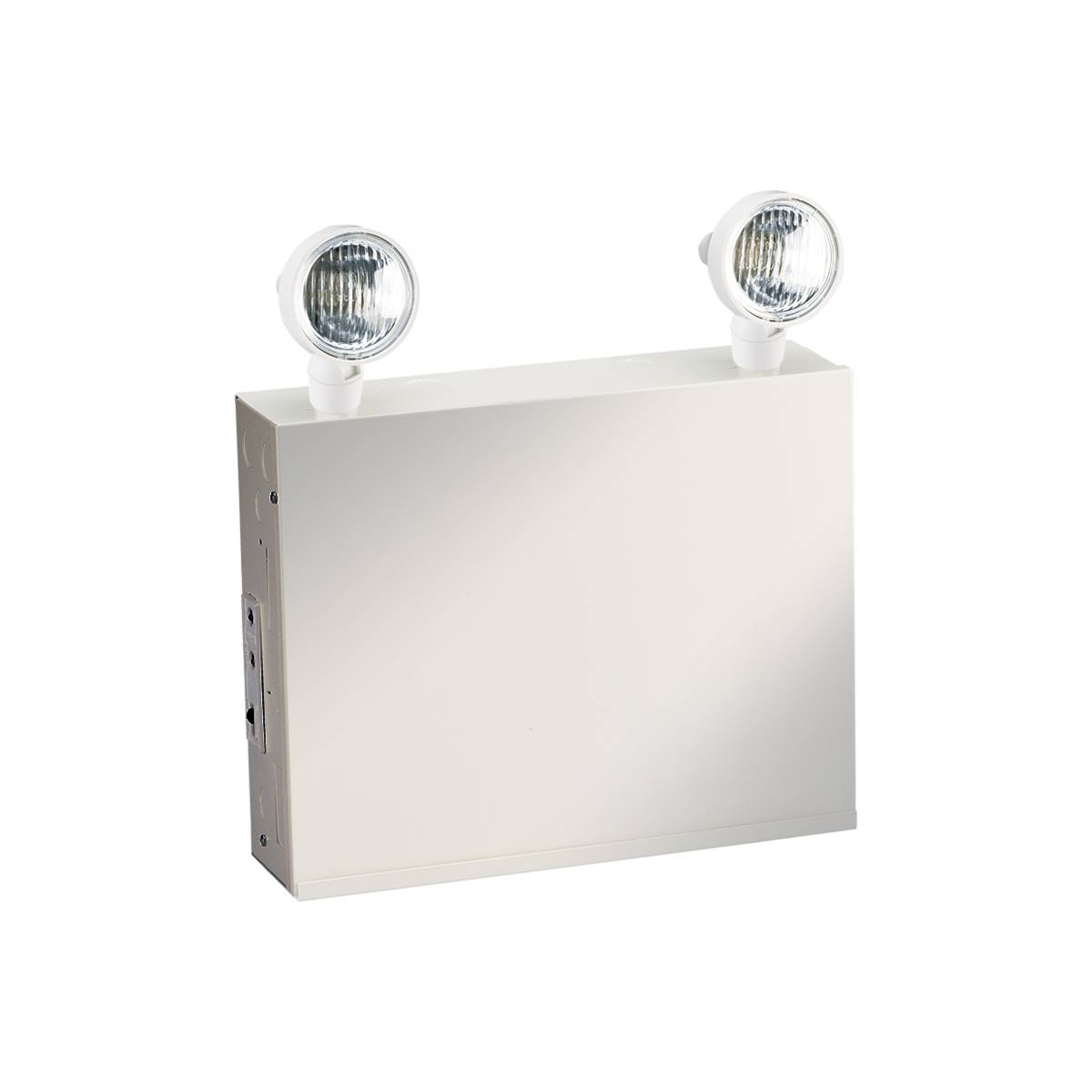

Lumacell® RG12S200AT Self-Powered Emergency Lighting Unit, 120/347 VAC, 12 VDC, Steel

Short Description

The RGS series battery units combine long life expectancy, high performance design and a reasonable initial cost outlay. Ideally suited for a range of commercial applications, the long life lead acid battery is specifically recommended for environments where the unit will be exposed to large variances in ambient temperature.

Lumacell® Emergency Lighting Unit, Self-Powered, Series: RG12S, 120/347 VAC, 12 VDC, 200 W Fixture, 0.41/0.14 A, 60 Hz Frequency, Lead Acid Battery Power Source, Wall Mounting, 10-1/4 in H x 16-1/8 in W x 5-1/2 in D Dimensions, Steel, Factory White
MFG #: RG12S200AT

EECO #: TBRG12S200AT

Brand: Lumacell®
UPC #: 624616174605
Attributes
Features
Documents
Product Information
Attributes
Color
Factory White
UNSPSC
39111709
Material
Steel
Application
Institutional, Industrial, Commercial and Hospitality Applications
Mounting Type
Wall
Voltage Rating
120/347 VAC, 12 VDC
Frequency Rating
60
Type
Self-Powered
Series
RG12S
Dimensions
10-1/4 in H x 16-1/8 in W x 5-1/2 in D
Amperage Rating
0.41/0.14
Features
  • With sealed dustproof transfer relay, test switch, diagnostic LED indicator light, electronic lockout, brownout circuit, auto test
  • Rugged steel cabinet with corrosion-resistant undercoating
  • Removable front panel on cabinet provides easy access and allows the unit to be mounted at ceiling height
  • Solid state pulse type charger current limited, temperature compensated, short circuit proof and reverse polarity protected
  • Long life, maintenance-free lead acid battery
  • 0.41 A at 120 VAC, 0.14 A at 347 VAC
