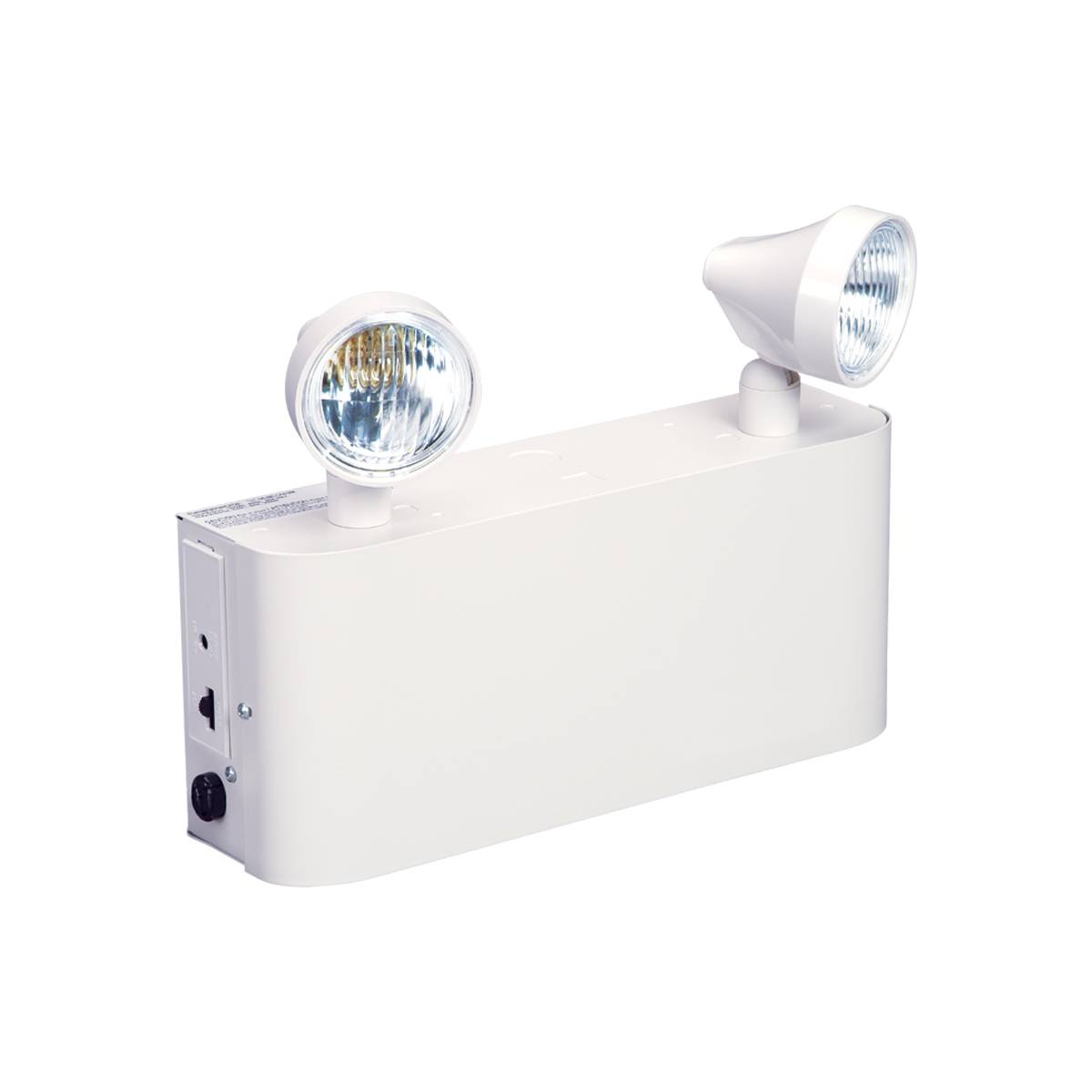

Lumacell® RG12C442LD7 RG12C Battery Unit, Lead Acid, 120 VAC Nominal, 44 W Nominal
Share Share Print Print
ABB

Lumacell® RG12C442LD7 RG12C Battery Unit, Lead Acid, 120 VAC Nominal, 44 W Nominal

Short Description

Lumacell® the leader in emergency lighting and exit signs in Canada, Lumacell® provides architectural, commercial and industrial products to meet the Hest requirements. Lumacell® uses the latest technologies to maximize the efficiency of its environmentally friendly products designed and manufactured in Canada.

Lumacell® Battery Unit, Series: RG12C, Lead Acid Chemical System, 120 VAC Nominal, 44 W Nominal, Steel Case, For Use With: Emergency Light, 12-3/4 in H x 3-1/4 in W x 9-1/8 in D Dimensions
MFG #: RG12C442LD7

EECO #: TBRG12C442LD7

Brand: Lumacell®
UPC #: 624616242311
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111709
Series
RG12C
Dimensions
12-3/4 in H x 3-1/4 in W x 9-1/8 in D
Case Material
Steel
Suitable For Use With
Emergency Light
Features
  • Universal spider knockout pattern for junction box mounting
  • MR16 LED, 12 VAC, 4 W, 2 heads
  • White color
  • Compact steel cabinet with corrosion resistant undercoating
  • Quick and easy installation pre assembled cordset, no batteries or board to remove before installation
  • Fully automatic solid state charger with test switch and AC on pilot light
  • Sealed dust proof transfer relay circuit and low voltage disconnect
  • Long life, maintenance free sealed lead acid battery
  • Heads require no tools for orientation
  • The charger shall be factory set with a charging voltage tolerance of +/-1% to enable a longer battery life
  • The emergency light heads shall require no tools for adjusting or aiming
  • The metal cabinet shall be made of steel with anti-corrosion undercoating
  • The unit equipped with the auto test micro controller board shall self test 1 min every 30 days, 10 min in the 6th month and 30 min every 12 months
  • The unit shall be supplied with a test switch and diagnostic LED indicator lights to continuously monitor the status of the unit battery failure, battery disconnect, charger failure, lamp failure, service alarm, main voltage AC "ON", charger high rate
