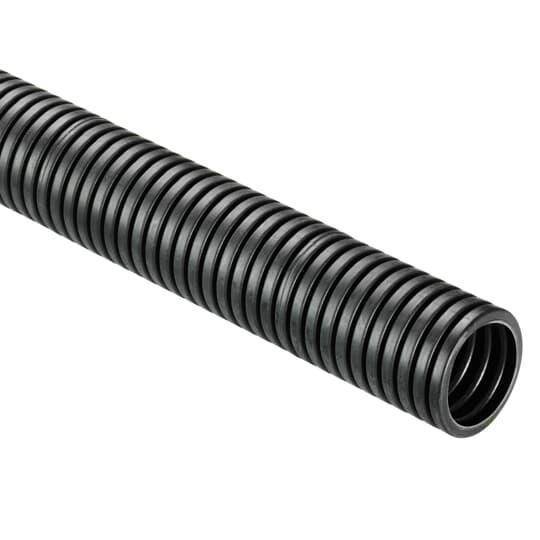

PMA PHTT-10B.50 Fine Profile Medium Wall Heavy Duty Flexible Conduit, NW10 Trade, 9.6 mm ID x 0.51 in OD, 50 m L, Polyamide Elastomer
Share Share Print Print
ABB

PMA PHTT-10B.50 Fine Profile Medium Wall Heavy Duty Flexible Conduit, NW10 Trade, 9.6 mm ID x 0.51 in OD, 50 m L, Polyamide Elastomer

Short Description

PMAFLEX® covers more than 20 different conduit types for a variety of applications in cable protection. The PMAFLEX® range offers conduits for technically demanding applications and special requirements.

PMA Flexible Conduit, Fine Profile Medium Wall Heavy Duty, Series: PHTT, NW10, 9.6 mm Inside Dia, 0.51 in Outside Dia, 50 m Length, 20 mm Bend Radius, Highly Flexible Flexibility, -50 to 135 deg C, Polyamide Elastomer, Black

MFG #: PHTT-10B.50

EECO #: TBPHTT10B.50

Brand: PMA
UPC #: 786209967725
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Length
50
UNSPSC
39131706
Material
Polyamide Elastomer
Trade Size
NW10
Application
For machine building, applications at high and very low temperatures and robotics
Temperature Rating
-50 to 135
Type
Fine Profile Medium Wall Heavy Duty
Series
PHTT
Bend Radius
20
Inside Diameter
9.6
Outside Diameter
0.51
Features
  • Excellent resistance to ultra violet (UV) rays and atmospheric corrosion
  • Both excellent flexibility and high compression strength
  • Extremely good impact resistance at very low temperatures
  • Enhanced temperature range when compared to standard polyamides
  • Free from halogens and cadmium
  • Not sheathed
  • EC001175 corrugated plastic hose
  • 12 mm Dia nominal
  • 20 mm static/ 55 mm dynamic
PMA_CYFHG_36B_30_Catalog
PMA_PHTT_10B_50_Specification_Sheet
