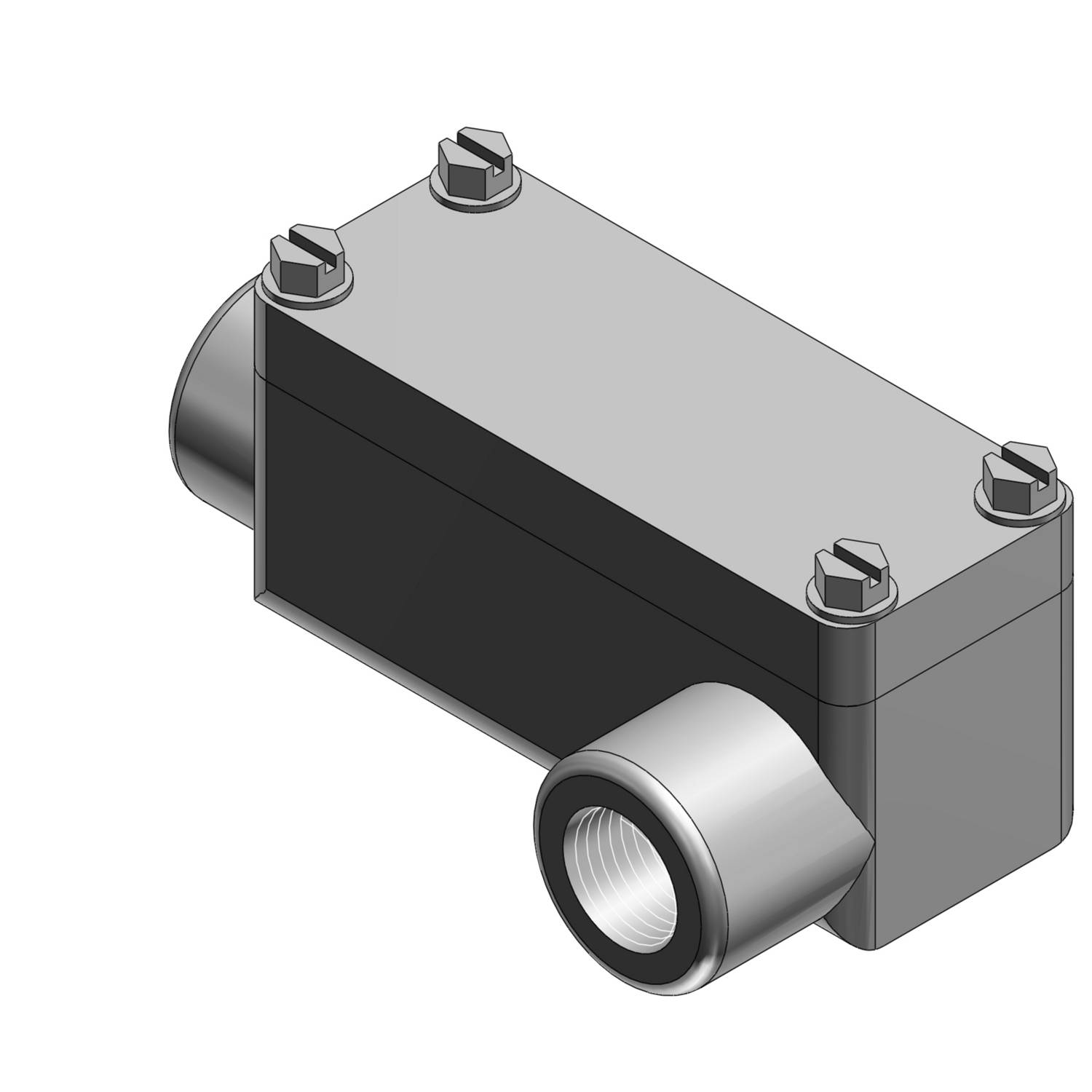

T&B® OEC1-TB Explosionproof Conduit Body With Die-Cast Aluminum Cover, C Body, 3/4 in Hub, 13.3 cu-in Capacity, Ductile Iron
Share Share Print Print
ABB

T&B® OEC1-TB Explosionproof Conduit Body With Die-Cast Aluminum Cover, C Body, 3/4 in Hub, 13.3 cu-in Capacity, Ductile Iron

Short Description

Ensure safety and durability with the T&B® OEC1-TB Explosionproof Conduit Body. Featuring a robust die-cast aluminum cover and a generous 13.3 cu-in capacity, this conduit body is designed for reliable performance in hazardous environments.Enhanced by AI

T&B® Conduit Body, Explosionproof, Series: OE Series, C Body Type, 3/4 in Hub, 2 Hubs, 13.3 cu-in Capacity, NEMA 3/4/7C/7D/9E/9F/9G Enclosure, Ductile Iron, Aluminum Acrylic Painted/Electro Galvanized
MFG #: OEC1-TB

EECO #: TBOEC1TB

Brand: Thomas & Betts
UPC #: 786210912394
Attributes
Features
Documents
Product Information
Attributes
Finish
Aluminum Acrylic Painted/Electro-Galvanized
UNSPSC
39131707
Hub Size
3/4
Material
Ductile Iron
Application
Installed In conduit systems within hazardous areas to protect conductors in threaded rigid conduit, act as pulling and splice fittings, interconnect lengths of conduit, change direction of conduit, provide access for maintenance and future system changes
Number of Hubs
2
Enclosure
NEMA 3/4/7C/7D/9E/9F/9G
Type
Explosionproof
Series
OE Series
Capacity
13.3
Features
  • Tapered threaded hubs for ground continuity
  • Smooth integral hub bushings to protect conductor insulation when pulling
  • Most compact design of all hazardous area outlet bodies
  • Accurately machined body with blind tapped screw holes
