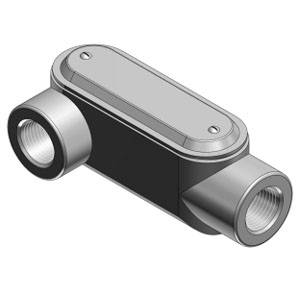

T&B® LR47CG-TB Pre-Assembled Conduit Body, 1-1/4 in Hub, Form 7 Form, Iron, Epoxy Powder Coated/Zinc Plated

Short Description

1-1/4", PTFE Based BlueKote Coated Internal/Class 30 Zinc Plated with Epoxy Powder Coated Gray Iron Alloy, Threaded, 2-Hub, LR-Type, Form 7, Conduit Body with Cover and Gasket

T&B® Conduit Body, Pre-Assembled, Series: LR Series, 1-1/4 in Hub, 2 Hubs, Form 7, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.44 in L x 2.35 in W
MFG #: LR47CG-TB

EECO #: TBLR47CGTB

Brand: Thomas & Betts
UPC #: 786210916958
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
1-1/4
Material
Iron
Form Type
Form 7
Application
For connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
90 Degree
Installation
Threaded
Access Opening
90 Degree Right Side
Number of Hubs
2
Type
Pre-Assembled
Style
LR
Series
LR Series
Cover Type
Zinc Plated Stamped Steel with Clear Chromate Coating
Dimensions
6.44 in L x 2.35 in W
Features
  • BlueKote PTFE based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic in capacity
  • T&B® form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's form 7 bodies and covers
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
ABB_Thomas_Betts_00179_65_71_CAT
ABB_Thomas_Betts_00462_1_SPEC
ABB_Thomas_Betts_00537_1_3_CAD
IDW_DOCUMENT_1520570086381
IDW_DOCUMENT_b10d551245e70beb802848a46ea6b872b8d9118582ccca146adc5a9a51bd9f18
Qty Unit price
Ea
1 $50.47

Slqt
1 $50.47

Stpk
1 $50.47

Unit
1 $50.47
