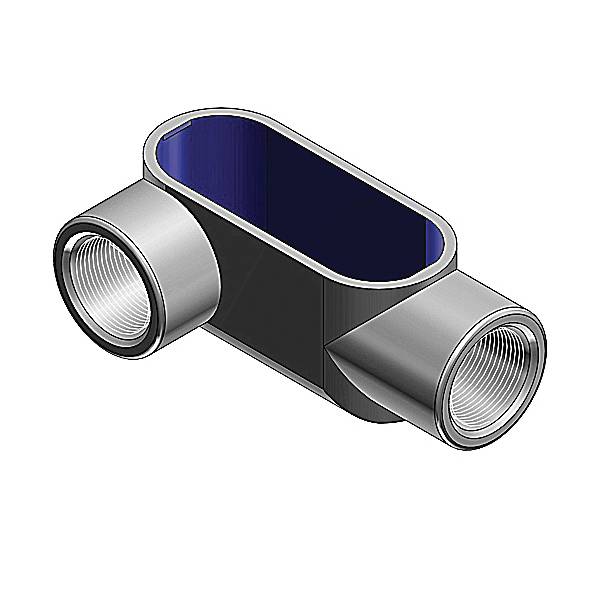

T&B® BlueKote® LR47 Type LR Conduit Body, 1-1/4 in Hub, Form 7 Form, 18.8 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated

Short Description

Enhance your electrical installations with the T&B® BlueKote® LR47 Type LR Conduit Body. Designed for durability and efficiency, this conduit body features a robust iron construction with a sleek epoxy powder coating, ensuring long-lasting performance in any environment.Enhanced by AI

T&B® BlueKote® Conduit Body, Type LR, 1-1/4 in Hub, 18.8 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.45 in L x 2.3 in W x 3.05 in H
MFG #: LR47

EECO #: TBLR47

Brand: Thomas & Betts
UPC #: 786210933528
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Hub Size
1-1/4
Material
Iron
Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Connection Type
Tapered NPT
Type
Type LR
Capacity
18.8
Dimensions
6.45 in L x 2.3 in W x 3.05 in H
Features
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton® form 7 bodies and covers
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
