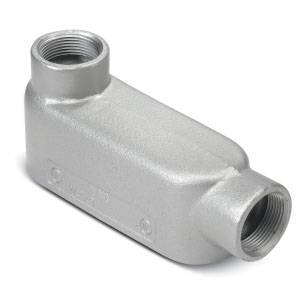

T&B® LL75M 35 Series Type LL Conduit Body, 3/4 in Hub, Form 35 Form, 7.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Conduit Body, Type LL, Series: 35 Series, 3/4 in Hub, 2 Hubs, 7.5 cu-in Capacity, Form 35, Tapered NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, Gray, 5-3/8 in L x 1-11/16 in W x 2-1/4 in H

MFG #: LL75M

EECO #: TBLL75M

Brand: Thomas & Betts
UPC #: 786210961255
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Aluminum Acrylic Coated/Zinc Plated
UNSPSC
39131708
Hub Size
3/4
Material
Malleable Iron
Form Type
Series 35
Application
For connect conduit sections and rigid/IMC conduit
Hub Location
90 Degree
Access Opening
90 Degree Left Side
Number of Hubs
2
Connection Type
Tapered NPT
Type
Type LL
Series
35 Series
Capacity
7.5
Dimensions
5-3/8 in L x 1-11/16 in W x 2-1/4 in H
Features
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
  • Features tapered, threaded NPT hubs
  • Suitable for use in concrete
  • Left side access opening, 90 deg hub location
  • To connect conduit sections
  • Serve as pulling outlets during conductor installation
  • Provide easy access for splices in branch conductors, make 90 deg bends in conduit runs
  • Act as mounting outlets for wiring devices and lighting fixtures
  • Provide access to conductors for maintenance and future system changes
