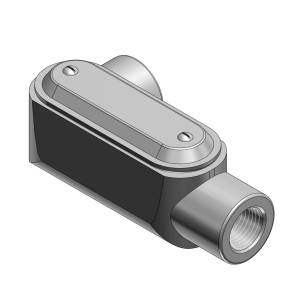

T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
Share Share Print Print
ABB

T&B® BlueKote® LL67CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® BlueKote® Conduit Body, Type LL Pre-Assembled, 2 in Hub, 2 Hubs, 51 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 8.3 in L x 3.2 in W x 4.25 in H

MFG #: LL67CG-TB

EECO #: TBLL67CGTB

Brand: Thomas & Betts
UPC #: 786210916903
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
2
Material
Iron
Form Type
Form 7
Application
For connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
90 Degree
Installation
Threaded
Access Opening
90 Degree Left Side
Number of Hubs
2
Connection Type
Tapered NPT
Type
Type LL Pre-Assembled
Style
LL
Capacity
51
Cover Type
Zinc Plated Stamped Steel with Clear Chromate Coating
Dimensions
8.3 in L x 3.2 in W x 4.25 in H
Features
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton® form 7 bodies and covers
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Stamped steel/zinc plating cover material and finish
ABB_Thomas_Betts_00179_65_71_CAT
ABB_Thomas_Betts_00453_1_2_SPEC
IDW_DOCUMENT_b10d551245e70beb802848a46ea6b872b8d9118582ccca146adc5a9a51bd9f18
Ocal_500_G_Catalog
