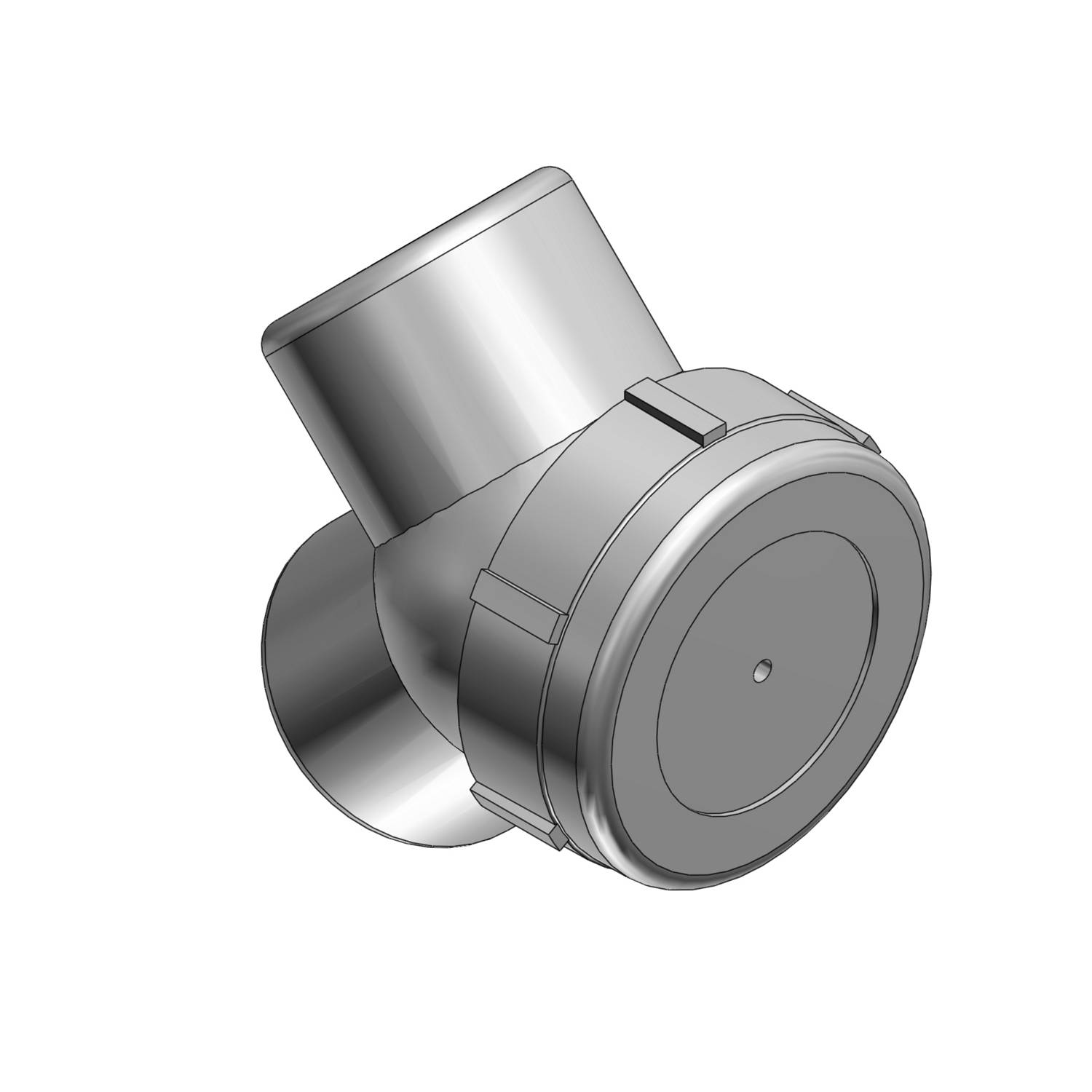

T&B® LBY55-TB Explosionproof Capped Elbow, 1-1/2 in Trade, 90 deg, Ductile Iron
Share Share Print Print
ABB

T&B® LBY55-TB Explosionproof Capped Elbow, 1-1/2 in Trade, 90 deg, Ductile Iron

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Capped Elbow, Explosionproof, 1-1/2 in, 90 deg, For Use With: Rigid/IMC Conduits, Screw-On Mount, Ductile Iron, 3-3/8 in OD x 4-1/4 in L

MFG #: LBY55-TB

EECO #: TBLBY55TB

Brand: Thomas & Betts
UPC #: 786210689180
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39131717
Material
Ductile Iron
Trade Size
1-1/2
Application
For providing access to conductors for maintenance and future system changes, hazardous and wet locations
Mounting Type
Screw-On
Type
Explosionproof
Angle
90
Dimensions
3-3/8 in OD x 4-1/4 in L
Suitable For Use With
Rigid/IMC Conduits
Features
  • Maximum volume for bends within a compact overall size
  • Explosion proof, dust ignitionproof, raintight
  • Act as pull outlets
  • Screw-on cover for ease of installation and removal
  • Cover opening on an angle, permitting conductors to be pulled Straight-through either hub and tapered threaded hubs and integral bushing for rigid threaded conduit
  • Female to female connection
  • Make 90 deg bends in conduit systems where space is limited
  • 1.47 to 1.59 in throat
