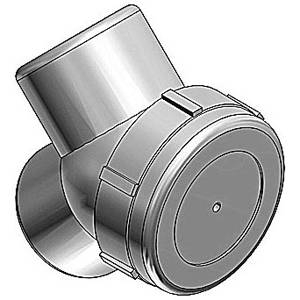

T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron
Share Share Print Print
ABB

T&B® LBY15-TB Explosionproof Capped Elbow, 1/2 in Trade, 90 deg, Ductile Iron

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Capped Elbow, Explosionproof, 1/2 in, 90 deg, For Use With: Rigid/IMC Conduits, Screw-On Mount, Ductile Iron, 2 in OD x 2-9/16 in L

MFG #: LBY15-TB

EECO #: TBLBY15TB

Brand: Thomas & Betts
UPC #: 786210689142
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39131717
Approval
UL
Material
Ductile Iron
Bend Angle
90 Degree
Trade Size
1/2
Application
For providing access to conductors for maintenance and future system changes, hazardous and wet locations
Mounting Type
Screw-On
Connection Type
Female, Female
Type
Explosionproof
Angle
90
Dimensions
2 in OD x 2-9/16 in L
Suitable For Use With
Rigid/IMC Conduits
Features
  • Maximum volume for bends within a compact overall size
  • Explosion proof, dust ignitionproof, raintight
  • Act as pull outlets
  • Screw-on cover for ease of installation and removal
  • Cover opening on an angle, permitting conductors to be pulled Straight-through either hub and tapered threaded hubs and integral bushing for rigid threaded conduit
  • Female to female connection
  • Make 90 deg bends in conduit systems where space is limited
  • 0.57 to 0.61 in throat
THOBETE32474_1_2
THOBETE68451_E108
IDW_DOCUMENT_dfb967ea2939b6c23728a36949c162d733e4752c7a68c4566203bab469a58655
Qty Unit price
Ea
1 $36.46

Slqt
1 $36.46

Stpk
1 $1,823.00

Unit
1 $36.46
