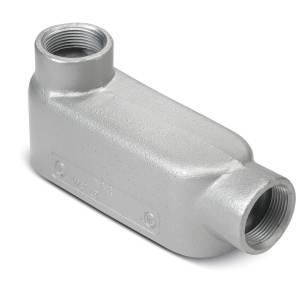

T&B® LB75M-TB 35 Series Type LB Conduit Body, 3/4 in Hub, 7.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Conduit Body, Type LB, Series: 35 Series, 3/4 in Hub, 2 Hubs, 7.5 cu-in Capacity, Tapered NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, Gray, 5-3/8 in L x 2-1/4 in W x 1-1/2 in H

MFG #: LB75M-TB

EECO #: TBLB75MTB

Brand: Thomas & Betts
UPC #: 786210960531
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Aluminum Acrylic Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
3/4
Material
Malleable Iron
Form Type
Series 35
Application
For connect conduit sections, provide easy access to conductors for maintenance and future system changes
Hub Location
90 Degree
Installation
Threaded
Access Opening
Back
Number of Hubs
2
Connection Type
Tapered NPT
Size
5.37 Inch Length x1.5 Inch Width x 2.25 Inch Height
Type
Type LB
Style
LB
Series
35 Series
Capacity
7.5
Cover Type
Iron/Stamped Steel
Dimensions
5-3/8 in L x 2-1/4 in W x 1-1/2 in H
Features
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
  • Features tapered, threaded NPT hubs
  • Suitable for use in concrete
  • To connect conduit sections
  • Serve as pulling outlets during conductor installation
  • Provide easy access for splices in branch conductors
  • Make 90 deg bends in conduit runs
