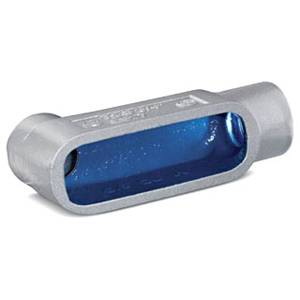

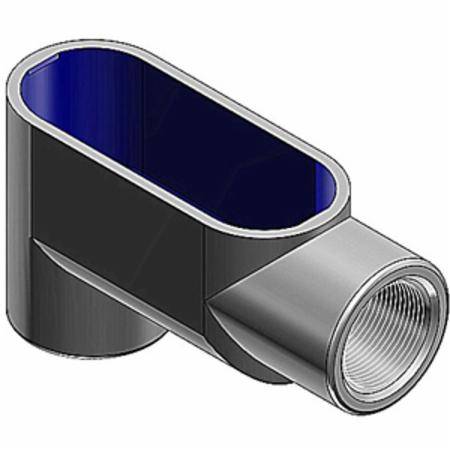

T&B® BlueKote® LB37 Type LB Conduit Body, 1 in Hub, Form 7 Form, 10.6 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® BlueKote® Conduit Body, Type LB, 1 in Hub, 2 Hubs, 10.6 cu-in Capacity, Form 7, Tapered NPT, Gray Iron, Epoxy Powder Coated/Zinc Plated, 6 in L x 1.8 in W x 2.65 in H

MFG #: LB37

EECO #: TBLB37

Brand: Thomas & Betts
UPC #: 786210924625
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL 514A, UL 514B, CSA 22.2
Hub Size
1
Material
Gray Iron
Form Type
Form 7
Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
90 Degree
Installation
Threaded
Access Opening
Back
Number of Hubs
2
Connection Type
Tapered NPT
Size
6 Inch Length x1.8Inch Width x 2.65 Inch Height
Type
Type LB
Style
LB
Capacity
10.6
Cover Type
Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On

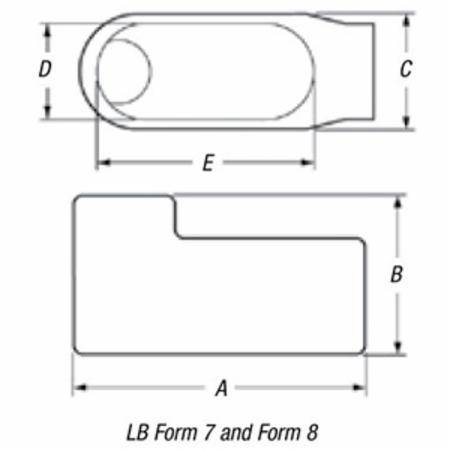

Dimensions
6 in L x 1.8 in W x 2.65 in H
Features
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
