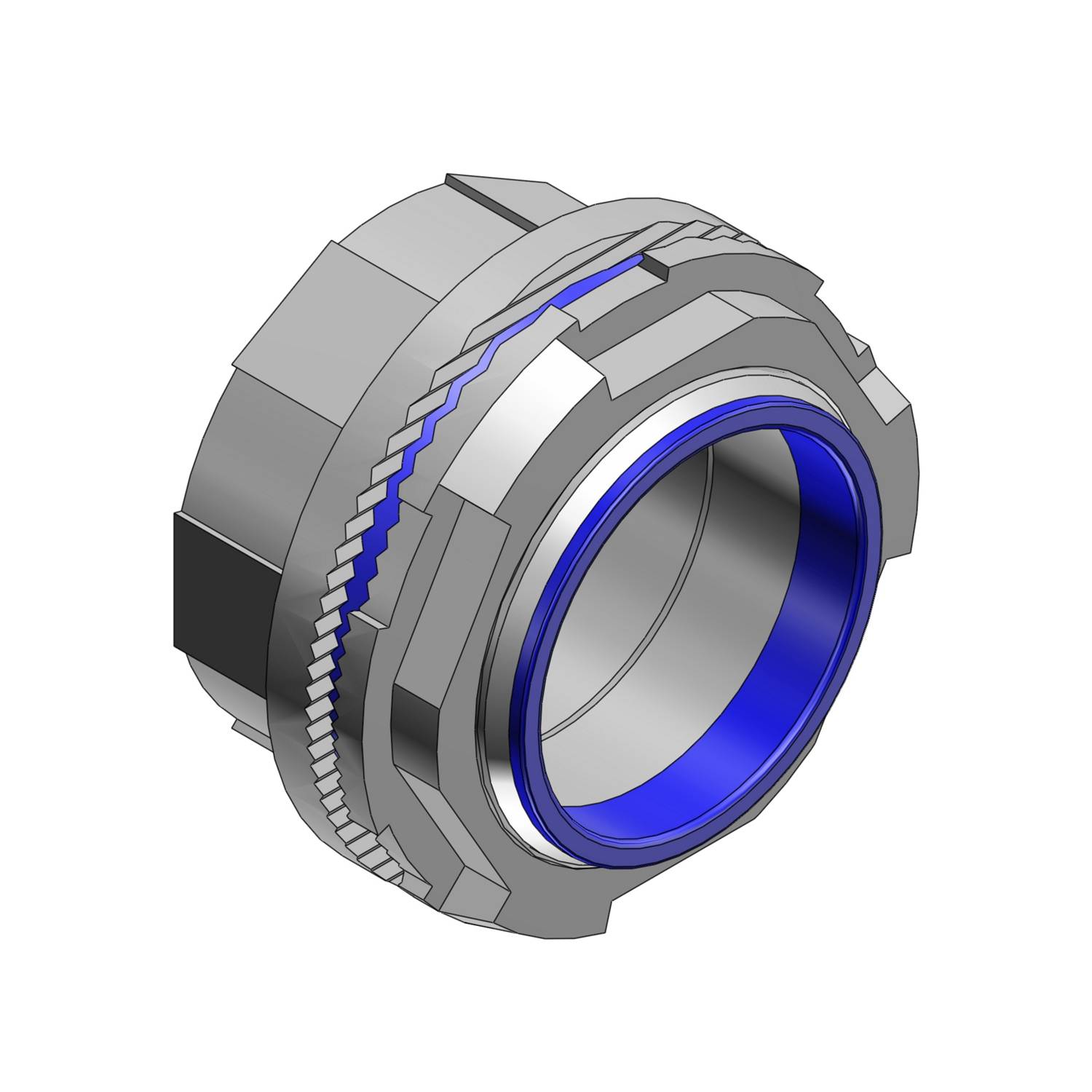

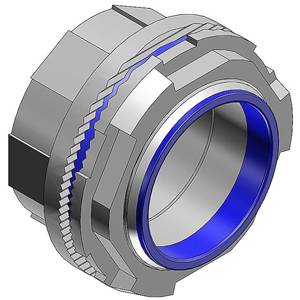

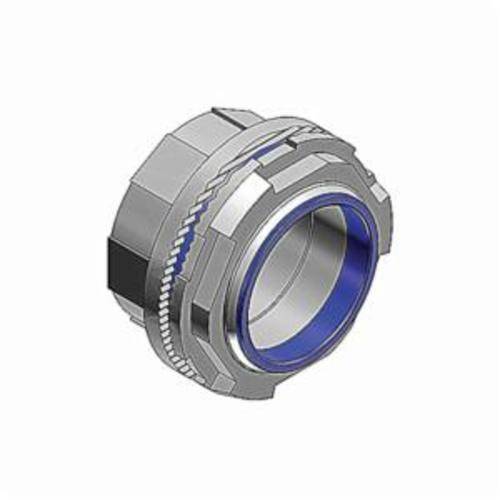

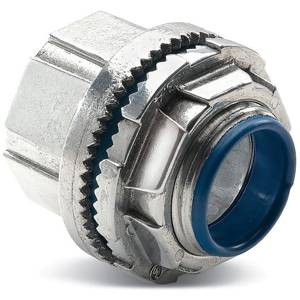

T&B® H125A Hub Connector With Thermoplastic Insulated Throat, 1-1/4 in, For Use With Rigid/IMC Conduits, Aluminum

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Hub Connector, 1-1/4 in, For Use With: Rigid/IMC Conduits, Aluminum, 2-3/8 in W x 1-7/8 in H

MFG #: H125A

EECO #: TBH125A

Brand: Thomas & Betts
UPC #: 786210903460
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121311
Used On
Rigid/IMC
Approval
UL, CSA
Material
Aluminum
Trade Size
1 1/4 Inch
Application
For use to connect threaded metal conduit to a threadless opening in a box or enclosure
Throat Type
Thermoplastic Insulated
Size
1-1/4
Type
Tapered Female Threaded, Bulkhead
Dimensions
2-3/8 in W x 1-7/8 in H
Suitable For Use With
Rigid/IMC Conduits
Constructional Feature
NEMA 3R/4/13, Water Tight, Dust Tight
Features
  • Sealing ring and groove with innovative profile better than standard O-ring
  • Sealing ring is captive before installation and resists buckling or slipping during installation
  • The seal groove is designed for optimum compression of the sealing ring
  • The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
  • Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
  • Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
  • Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
  • Precision machined tapered threads designed to create watertight union
  • Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
  • Nitrile (Buna N) sealing ring
  • 1 -5/16 in dia throat
  • 1/4 in THK maximum panel
  • 105 deg C temperature
THOBETE16135_1
THOBETE68451_E45_E47
Qty Unit price
C
1 $1,605.66

Ea
1 $16.0566

Slqt
1 $16.06

Stpk
1 $16.06

Unit
1 $16.06
