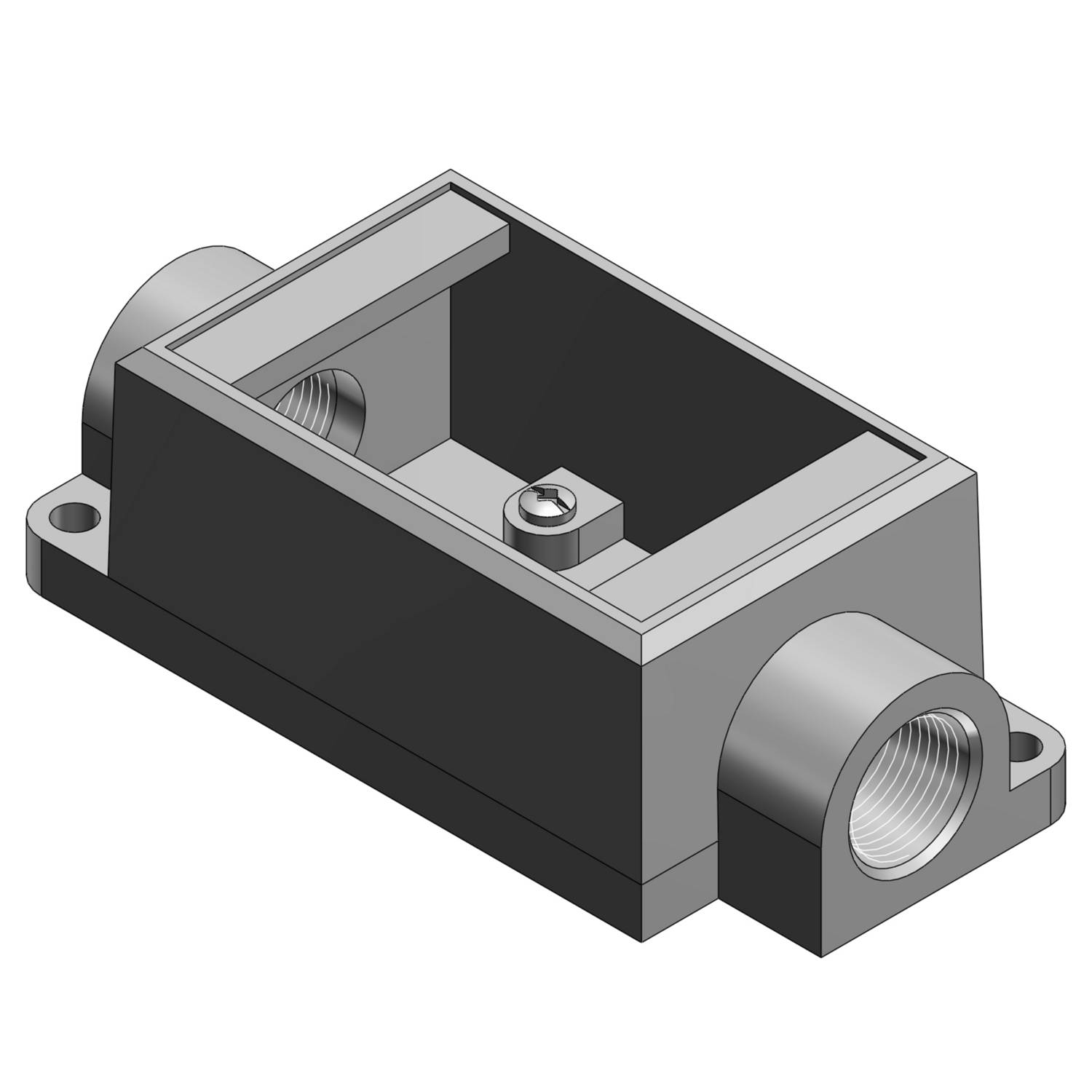

T&B® FSC2-TB Type FSC Feed-Through Shallow Style Cast Device Box, Iron Alloy, 1 Gangs

Short Description

3/4" NPT End Hub, 1-Gang, Aluminum Acrylic Painted Over Zinc Plated Iron, Wall Mount, Shallow, Through-Feed, FSC-Type, Cast Hub Device Box with Ground Screw

T&B® Cast Device Box, Type FSC Feed-Through Shallow Style, 1 Gangs, 3/4 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron Alloy, Zinc Plated, Gray, 2-3/4 in W x 2 in D x 4-9/32 in H
MFG #: FSC2-TB

EECO #: TBFSC2TB

Brand: Thomas & Betts
UPC #: 786210197012
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Shape
Shallow
Finish
Zinc Plated
UNSPSC
39121315
Approval
UL 514A, CSA 22.2
Hub Size
3/4
Material
Iron Alloy
Application
For protecting wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Hub Location
End
Mounting Type
Lug
Number of Gangs
1
Mounting
Wall
Type
Type FSC Feed-Through Shallow Style
Depth
2 Inch
Width
2.75 Inch
Height
6.04 Inch
Dimensions
2-3/4 in W x 2 in D x 4-9/32 in H
Mounting Hardware
(2) Lug
Configuration Type
FSC
Features
  • All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
  • Suitable for wet locations when used with gasketed covers
  • Use blank bodies where special arrangements of conduit hubs or entrances are required
  • All cover holes are #6-32 AWFG
  • Mounting lugs are standard on all FS and FD boxes
  • Accommodate wiring devices
  • Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
  • Provide openings to make splices and taps in conductors
  • Connect conduit sections
  • Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • 0.755 to 0.810 in Dia throat
  • Sand cast Al alloy and sheet steel covers and neoprene gaskets
  • Zinc plated with aluminum acrylic paint finish
  • Class 30 iron alloy material
  • For used to provide access to conductors for maintenance and future system changes
ABB_Thomas_Betts_00179_88_CAT
ABB_Thomas_Betts_00400_1_2_SPEC
IDW_DOCUMENT_ea5cc97aa678f6271e61646d850e470991cfd9ef38da47955b570bae07d986fd
Qty Unit price
Ea
1 $32.90

Slqt
1 $32.90

Stpk
1 $32.90

Unit
1 $32.90
