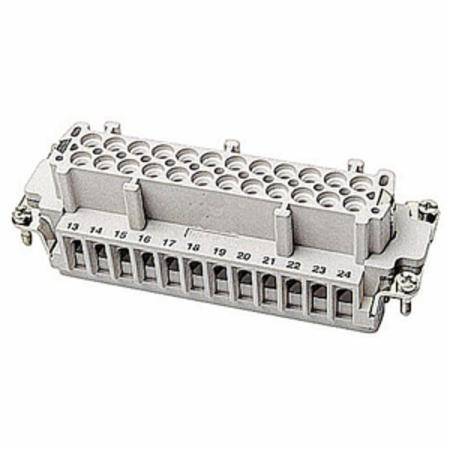

Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Share Share Print Print
ABB

Pos-E-Kon® FS148B B Series Standard Terminal Insert, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic

Short Description

Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

Pos-E-Kon® Terminal Insert, Standard, Series: B Series, 48 Positions, 20 to 14 AWG Wire, Female Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Glass Filled Thermoplastic

MFG #: FS148B

EECO #: TBFS148B

Brand: Pos-E-Kon
UPC #: 786210116426
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Used On
B Series 16 Amp 600 Volt AC Pin and Sleeve Connector
Material
Glass Filled Thermoplastic
Wire Size
20 to 14
Application
For panel base applications
Connection Type
Female Screw
Temperature Rating
-40 to 257
Type
Standard
Series
B Series
Specifications
16 A, 600 VAC
Suitable For Use With
B Series Connector
Features
  • 48 contacts with ground
  • Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
  • Allows single access direction panel build wiring and easy terminal ID for service and testing
  • Standard wire protection saddles prevent cutting of strands during assembly
  • Standard size screw terminal
  • Use small blade screwdriver to push wire entry tab in for easy contact removal
  • IP65 locked positions per DIN VDE 0470
