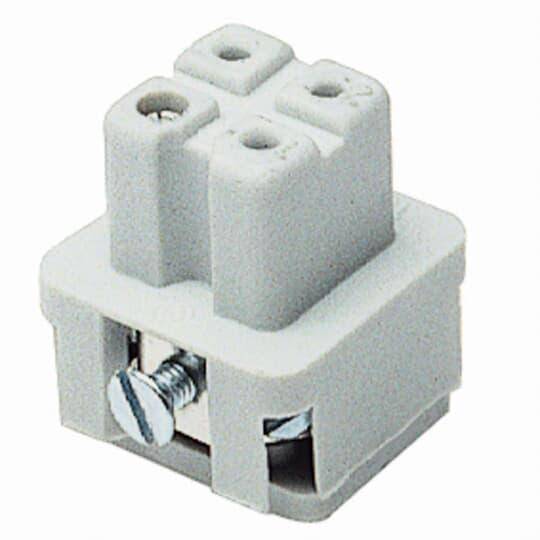

Pos-E-Kon® FS104A A Series Compact Terminal Insert, 4 Positions, 18 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic

Short Description

Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

Pos-E-Kon® Terminal Insert, Compact, Series: A Series, 4 Positions, 18 to 14 AWG Wire, Female Screw Connection, For Use With: A Series Connector, -40 to 257 deg F, Specifications: 10/16 A, 600 VAC, Glass Filled Thermoplastic

MFG #: FS104A

EECO #: TBFS104A

Brand: Pos-E-Kon
UPC #: 786210516493
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121410
Used On
A Series 10 Amp 600 Volt AC Pin and Sleeve Connector
Material
Glass Filled Thermoplastic
Wire Size
18 to 14
Connection Type
Female Screw
Temperature Rating
-40 to 257
Type
Compact
Series
A Series
Specifications
10/16 A, 600 VAC
Suitable For Use With
A Series Connector
Features
  • 4 contacts with ground
  • Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
  • Industrial connector
  • Standard wire protection saddles prevent cutting of strands during assembly
  • Small, compact size screw terminal
  • Use small blade screwdriver to push wire entry tab in for easy contact removal
THOBETE31278_1
THOBETE75839_G109_G116_G146
IDW_DOCUMENT_1520601633812
IDW_DOCUMENT_1520612141891
Qty Unit price
Ea
1 $20.33

Slqt
1 $20.33

Stpk
1 $20.33

Unit
1 $20.33
