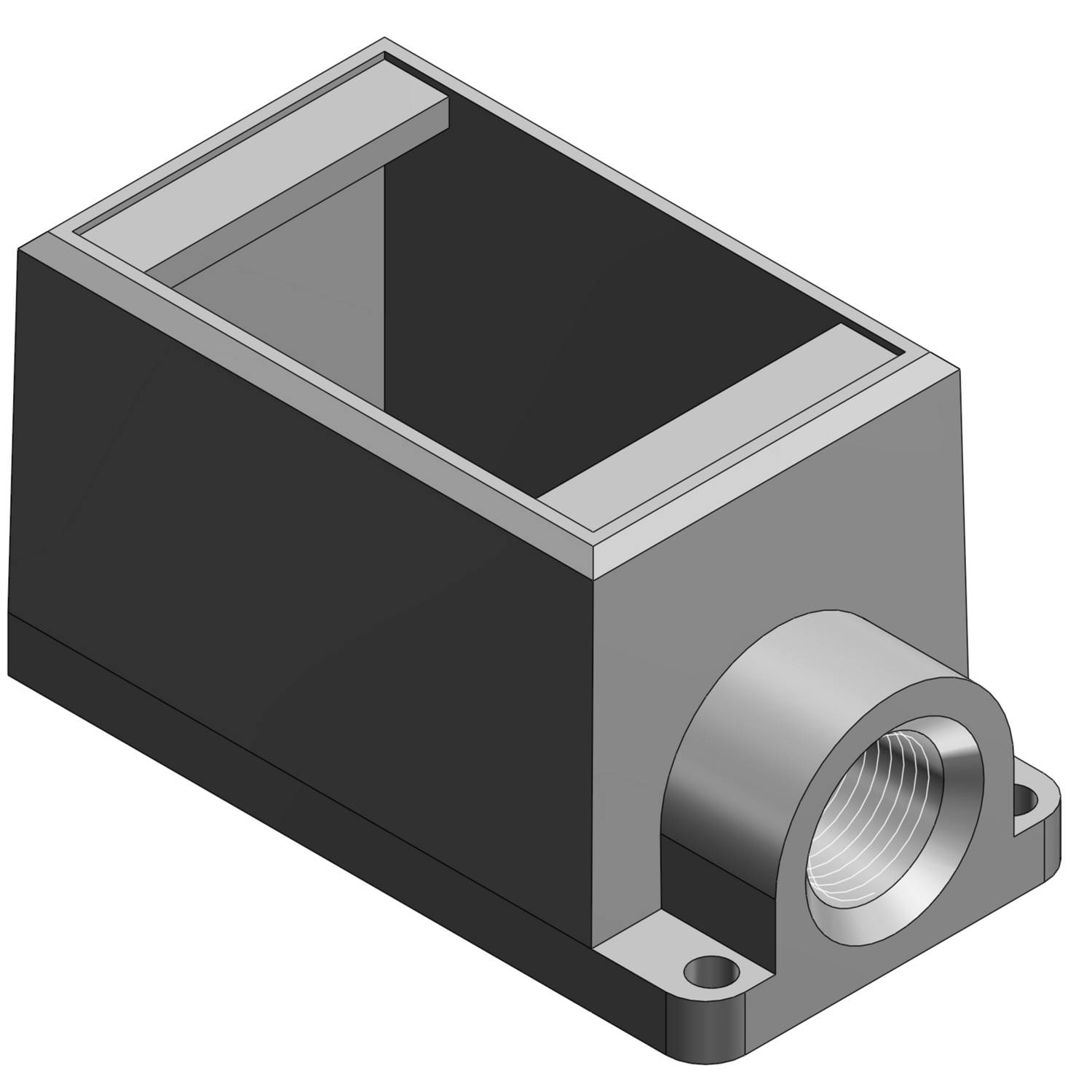

T&B® FD3-TB Type FD Dead End Deep Style Cast Device Box, Iron, 1 Gangs, 1 Outlets, 1 Knockouts, 4-5/8 in W x 2-13/16 in D x 4-9/32 in H

Short Description

(1) 1" NPT End Hub, 1-Gang, Aluminum Acrylic Painted Over Zinc Plated Iron, Wall Mount, Deep, Dead End, FD-Type, Cast Hub Device Box with Ground Screw

T&B® Cast Device Box, Type FD Dead End Deep Style, 1 Outlets, 1 Gangs, 1 Knockouts, 1 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron, Zinc Plated, Gray, 4-5/8 in W x 2-13/16 in D x 4-9/32 in H
MFG #: FD3-TB

EECO #: TBFD3TB

Brand: Thomas & Betts
UPC #: 786210197074
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Shape
Deep
Finish
Zinc Plated
UNSPSC
39121315
Approval
UL 514A, CSA 22.2
Hub Size
1
Material
Iron
Application
For industrial grade device boxes, raintight covers protect wiring devices, switches, electronic components, terminal blocks in dry, damp and wet locations
Hub Location
End
Mounting Type
Lug
Number of Hubs
1
Number of Gangs
1
Mounting
Wall
Number of Outlets
1.0000
Number of Knockouts
1.0000
Type
Type FD Dead End Deep Style
Depth
2.81 Inch
Width
2.75 Inch
Height
5.16 Inch
Dimensions
4-5/8 in W x 2-13/16 in D x 4-9/32 in H
Mounting Hardware
(2) Lug
Configuration Type
FD
Features
  • All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
  • Suitable for wet locations when used with gasketed covers
  • Available in shallow (FS) or deep (FD) boxes. use FD if device to be enclosed exceeds 15/8 in depth
  • Use blank bodies where special arrangements of conduit hubs or entrances are required
  • All cover holes are #6-32 AWFG
  • Mounting lugs are standard on all FS and FD boxes
  • Accommodate wiring devices
  • Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
  • Provide openings to make splices and taps in conductors
  • Connect conduit sections
  • Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • 0.935 to 1.035 in Dia throat
  • (1) end hub cable entry
  • Sand cast Al alloy and sheet steel covers and neoprene gaskets
  • Zinc plated with aluminum acrylic paint finish
  • Class 30 iron alloy material
ABB_Thomas_Betts_00179_88_CAT
ABB_Thomas_Betts_00396_1_2_SPEC
IDW_DOCUMENT_ea5cc97aa678f6271e61646d850e470991cfd9ef38da47955b570bae07d986fd
Qty Unit price
Ea
1 $38.73

Slqt
1 $38.73

Stpk
1 $77.46

Unit
1 $38.73
