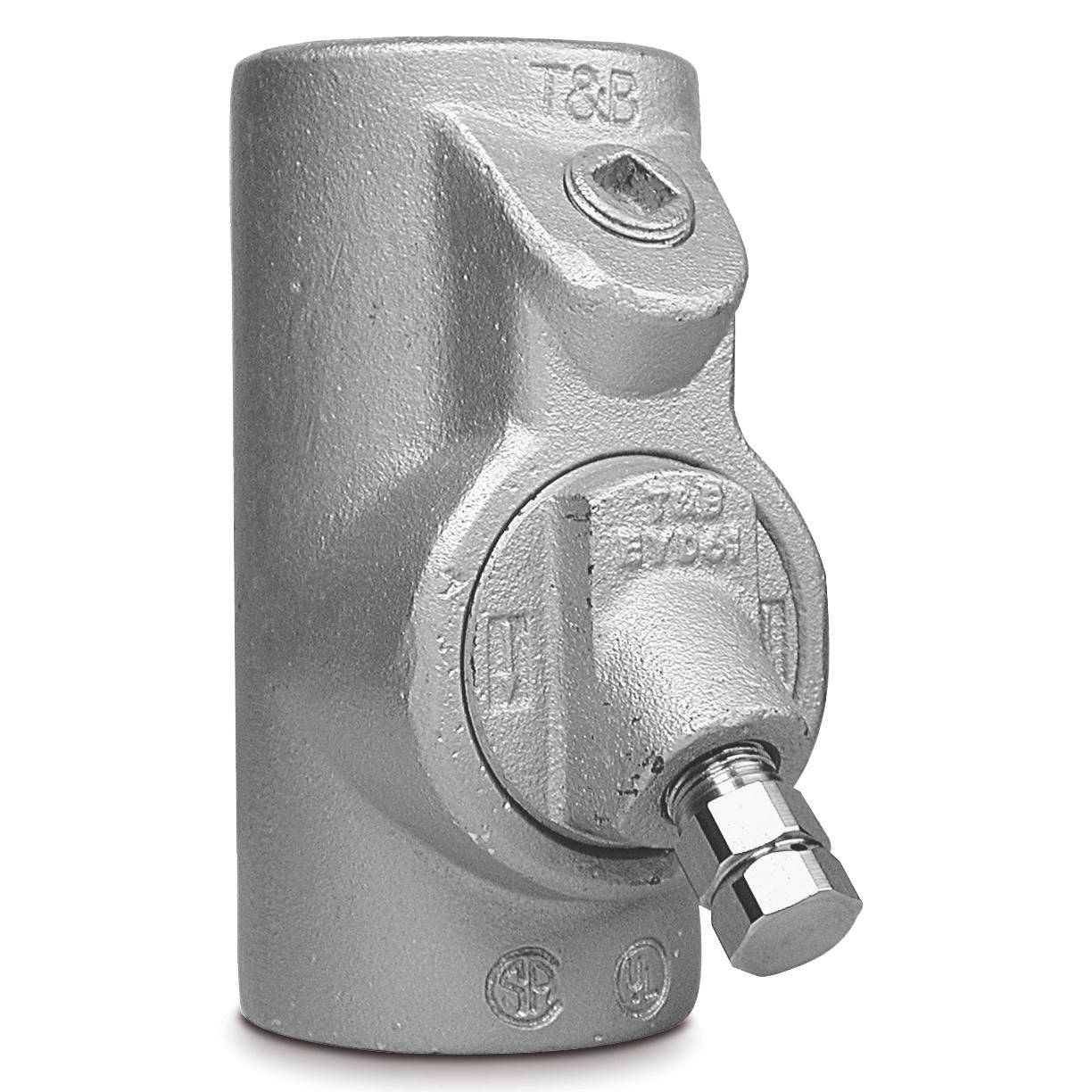

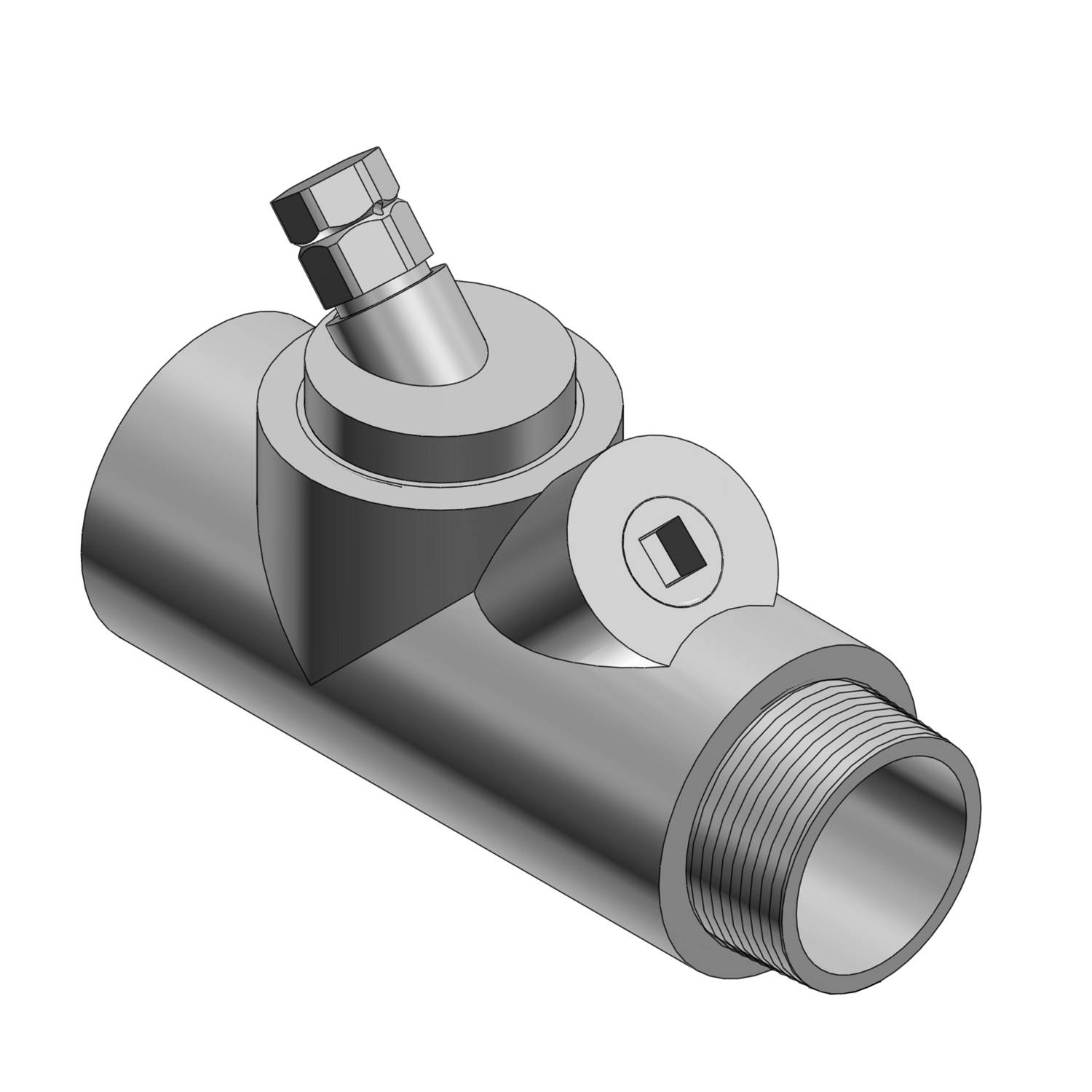

T&B® EYD11-TB Explosionproof Drain and Sealing Fitting, 1/2 in, For Use With Conduits, Iron, Aluminum Acrylic Painted/Electro Galvanized

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Drain and Sealing Fitting, Explosionproof, Series: EYD, 1/2 in, For Use With: Conduits, Iron, Gray, Aluminum Acrylic Painted/Electro Galvanized, 3.81 in L x 1.5 in W

MFG #: EYD11-TB

EECO #: TBEYD11TB

Brand: Thomas & Betts
UPC #: 786210739731
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Aluminum Acrylic Painted/Electro-Galvanized
UNSPSC
39131708
Material
Iron
Application
For use to restrict the passage of gases, vapors or flames from one portion of the electrical installation to another and for wet locations
Size
1/2
Type
Explosionproof
Series
EYD
Dimensions
3.81 in L x 1.5 in W
Suitable For Use With
Conduits
Features
  • EYD drain sealing fittings include drain to provide continuous, automatic drainage of condensation
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings to protect conductor insulation from damage
  • Tapered-tapped hubs to ensure ground continuity
  • 1-3/4 in turning radius
  • Dust-ignition-proof and rain tight
  • Gray iron and/or ductile iron body and inspection or drain cover, aluminum or ductile iron closure for drain, gray iron and/or steel small closure plug, stainless steel drain and steel removable nipples
