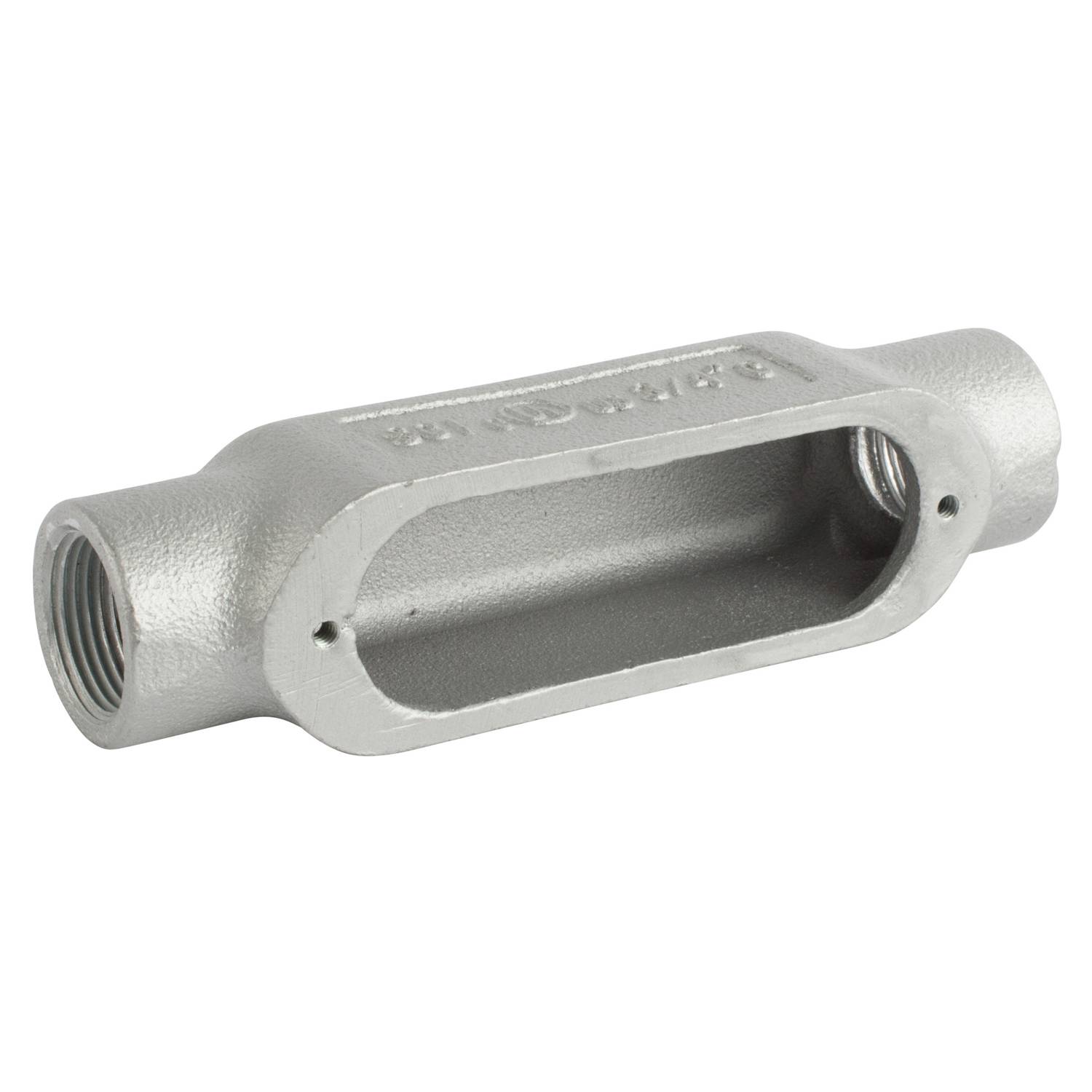

T&B® C75M-TB 35 Series Type-C Conduit Body, 3/4 in Hub, 7.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Conduit Body, Type-C, Series: 35 Series, 3/4 in Hub, 2 Hubs, 7.5 cu-in Capacity, Tapered NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, Gray, 6 in L x 1-11/16 in W x 1-1/2 in H

MFG #: C75M-TB

EECO #: TBC75MTB

Brand: Thomas & Betts
UPC #: 786210961934
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Aluminum Acrylic Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
3/4
Material
Malleable Iron
Form Type
Series 35
Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
Straight
Installation
Threaded
Access Opening
Straight Side
Number of Hubs
2
Connection Type
Tapered NPT
Size
6 Inch Length x1.5Inch Width x 1.7 Inch Height
Type
Type-C
Style
C
Series
35 Series
Capacity
7.5
Cover Type
Iron/Stamped Steel
Dimensions
6 in L x 1-11/16 in W x 1-1/2 in H
Features
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
  • Suitable for use in concrete
  • Thru feed design
