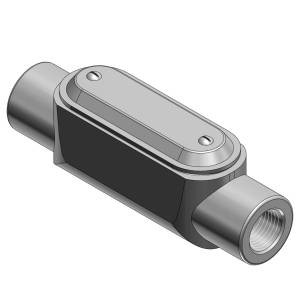

T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated
Share Share Print Print
ABB

T&B® BlueKote® C67CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 2 in Hub, Form 7 Form, 51 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® BlueKote® Conduit Body, Type C Pre-Assembled, 2 in Hub, 2 Hubs, 51 cu-in Capacity, Form 7, Tapered NPT, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 9.5 in L x 3.05 in W x 3.2 in H

MFG #: C67CG-TB

EECO #: TBC67CGTB

Brand: Thomas & Betts
UPC #: 786210916842
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
2
Material
Malleable Iron
Form Type
Form 7
Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
Straight
Installation
Threaded
Access Opening
Straight Side
Number of Hubs
2
Connection Type
Tapered NPT
Type
Type C Pre-Assembled
Style
C
Capacity
51
Includes
Cover and Gasket
Cover Type
Zinc Plated Stamped Steel with Clear Chromate Coating
Dimensions
9.5 in L x 3.05 in W x 3.2 in H
Features
  • Bluekote® teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Thru-feed design
  • Connect conduit sections
  • Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
ABB_Thomas_Betts_00179_65_71_CAT
ABB_Thomas_Betts_00384_1_2_SPEC
IDW_DOCUMENT_b10d551245e70beb802848a46ea6b872b8d9118582ccca146adc5a9a51bd9f18
Qty Unit price
Ea
1 $98.81

Slqt
1 $98.81

Stpk
1 $98.81

Unit
1 $98.81
