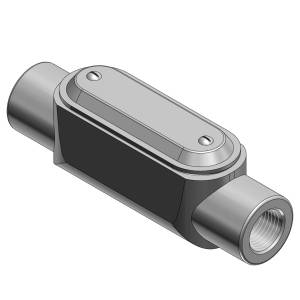

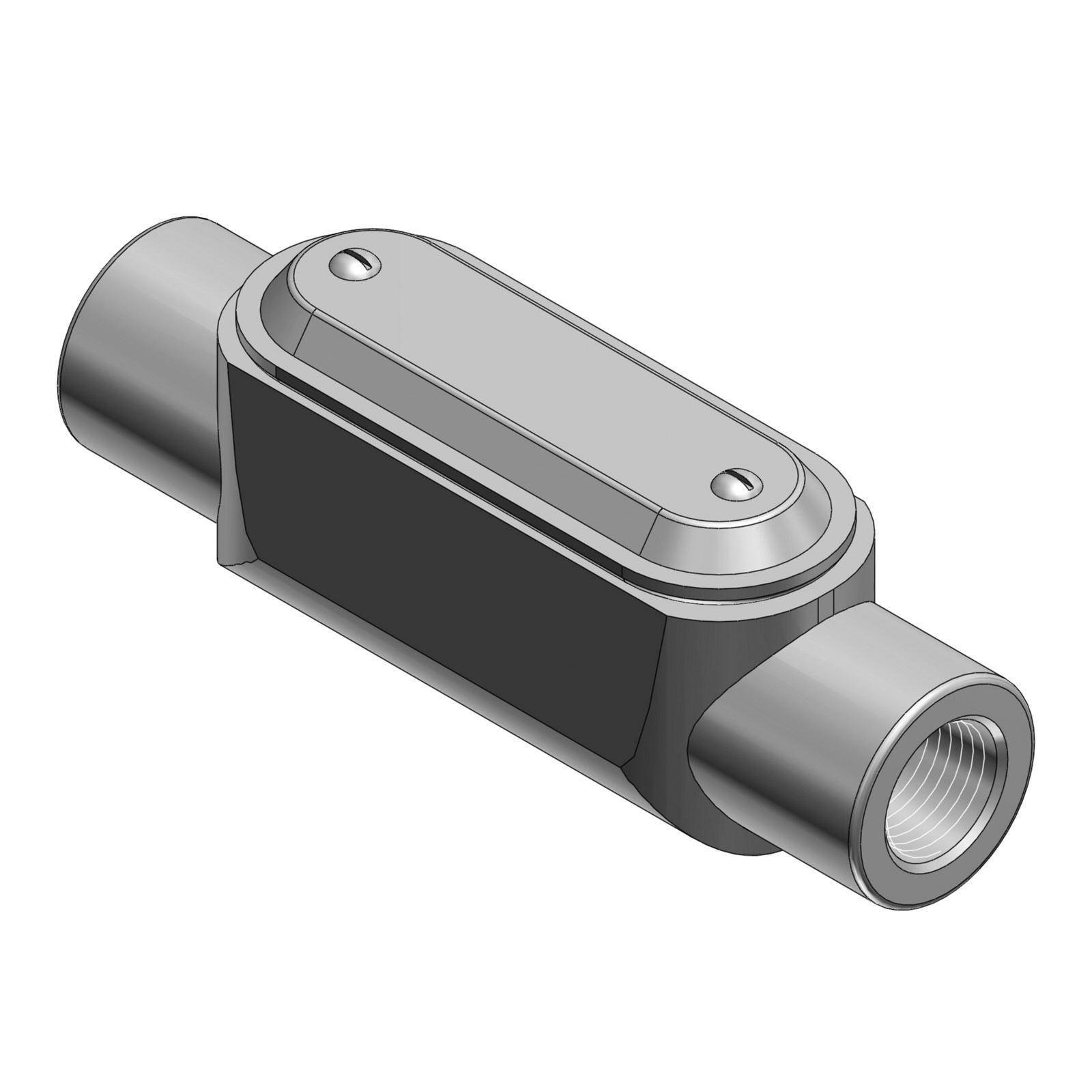

T&B® BlueKote® C57CG-TB Type C Pre-Assembled Conduit Body With Cover, Gasket, 1-1/2 in Hub, Form 7 Form, 27.5 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated

Short Description

1-1/2", PTFE Based BlueKote Coated Internal/Class 30 Zinc Plated with Epoxy Powder Coated Malleable Iron, Threaded, 2-Hub, C-Type, Form 7, Conduit Body with Cover and Gasket

T&B® BlueKote® Conduit Body, Type C Pre-Assembled, 1-1/2 in Hub, 27.5 cu-in Capacity, Form 7, Thread, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 2.54 in W x 8.57 in H
MFG #: C57CG-TB

EECO #: TBC57CGTB

Brand: Thomas & Betts
UPC #: 786210916835
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Epoxy Powder Coated/Zinc Plated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
1-1/2
Material
Malleable Iron
Form Type
Form 7
Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Hub Location
Straight
Installation
Threaded
Access Opening
Straight Side
Number of Hubs
2
Connection Type
Thread
Type
Type C Pre-Assembled
Style
C
Capacity
27.5
Includes
Cover and Gasket
Cover Type
Zinc Plated Stamped Steel with Clear Chromate Coating
Dimensions
2.54 in W x 8.57 in H
Features
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • T&B® Form 7™ bodies and covers are interchangeable with Crouse-Hinds and Appleton® Form 7™ bodies and covers
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Bluekote® teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Connect conduit sections
  • Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
