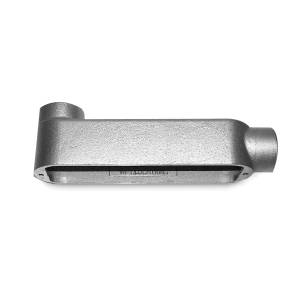

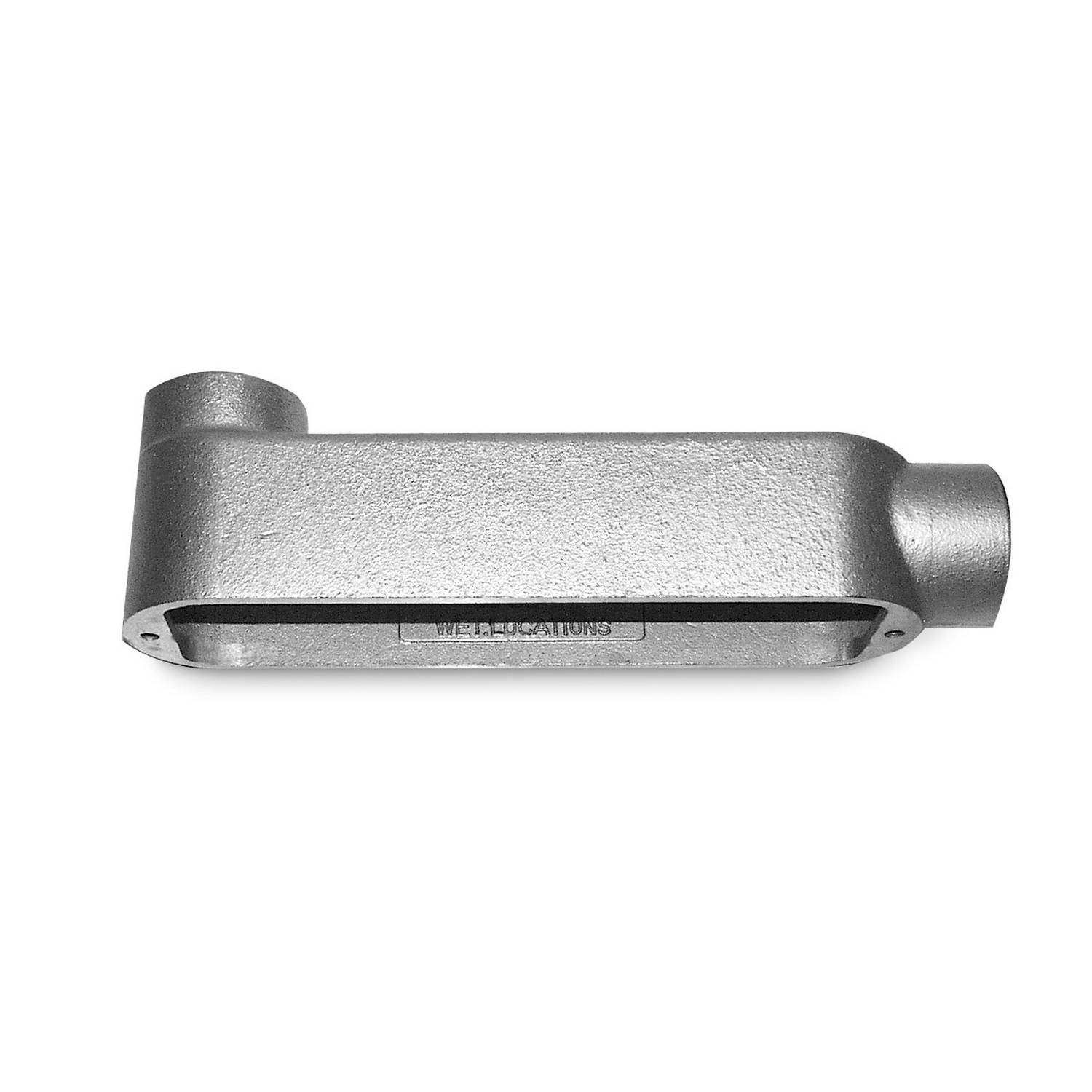

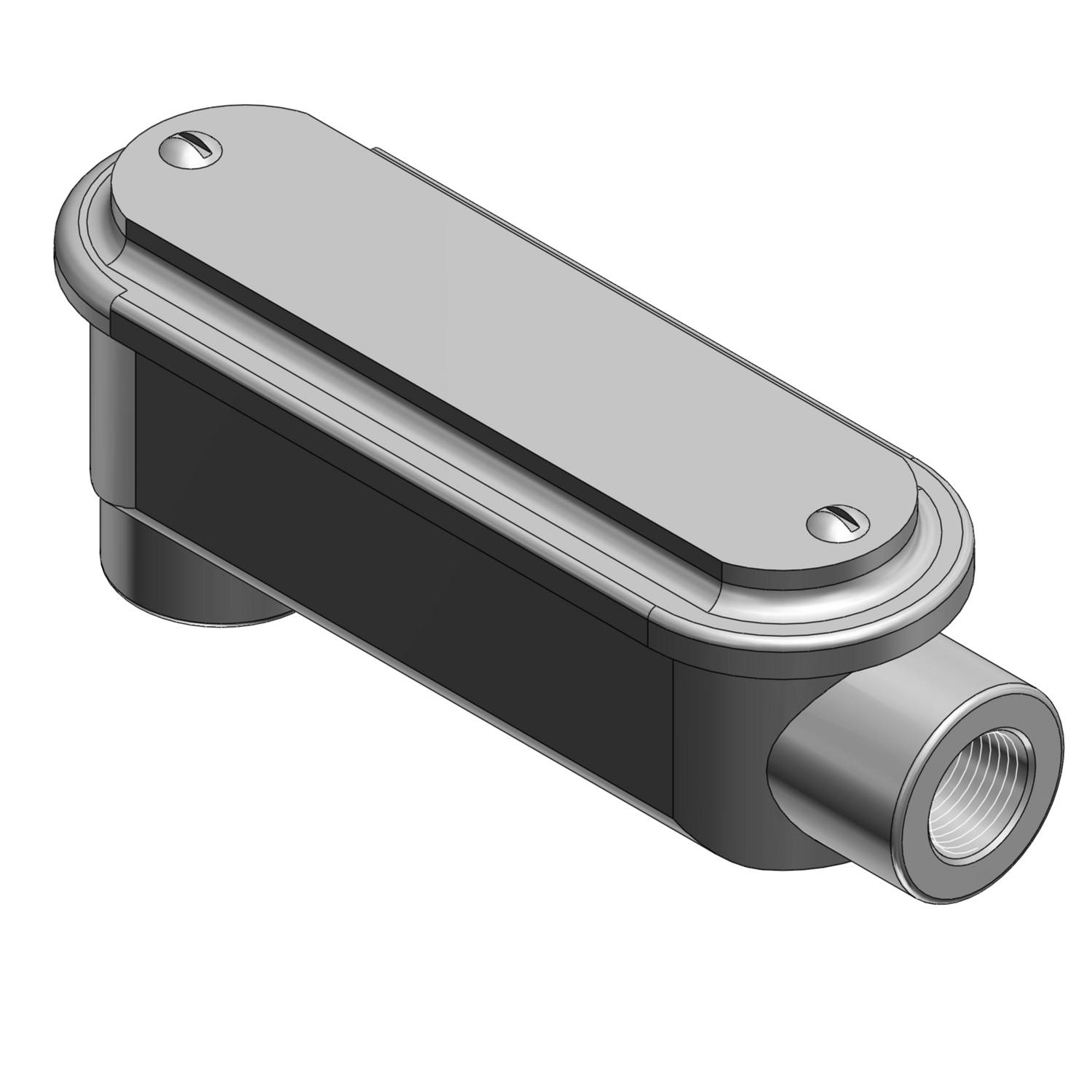

T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized
Share Share Print Print
ABB

T&B® BLB6-TB Type LB Conduit Body With Cover, Gasket, 2 in Hub, Mogul Form, 78 cu-in Capacity, Gray Iron, Electro Galvanized

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Conduit Body, Type LB, Series: BLB, 2 in Hub, 2 Hubs, 78 cu-in Capacity, Mogul, Thread, Gray Iron, Electro Galvanized, 12.58 in L x 4.16 in W x 3 in H

MFG #: BLB6-TB

EECO #: TBBLB6TB

Brand: Thomas & Betts
UPC #: 786210088815
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro-Galvanized
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Hub Size
2
Material
Gray Iron
Form Type
Mogul
Application
For rigid/IMC conduit and installed in conduit systems to act as pull outlets for conductors that are stiff, due to large size or type of insulation
Hub Location
90 Degree
Installation
Threaded
Access Opening
Back
Number of Hubs
2
Connection Type
Thread
Size
12.58 Inch Length x3 Inch Width x 4.16 Inch Height
Type
Type LB
Style
LB
Series
BLB
Capacity
78
Cover Type
Class 30 Gray Iron Alloy
Dimensions
12.58 in L x 4.16 in W x 3 in H
Features
  • Long openings, provision for easy bends, tapered tapped hubs with integral bushings
  • Thru feed design
  • Provide the longer openings needed when pulling large conductors
  • Prevent sharp bends and kinks in large conductors which protects insulation during installation
  • Provide access to wiring for maintenance and future system changes
  • Stainless steel cover screws and neoprene gasket
  • Back opening
