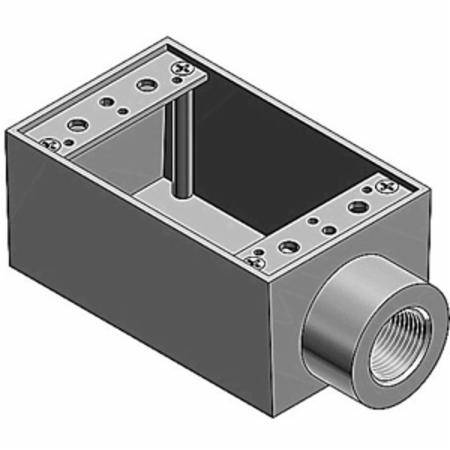

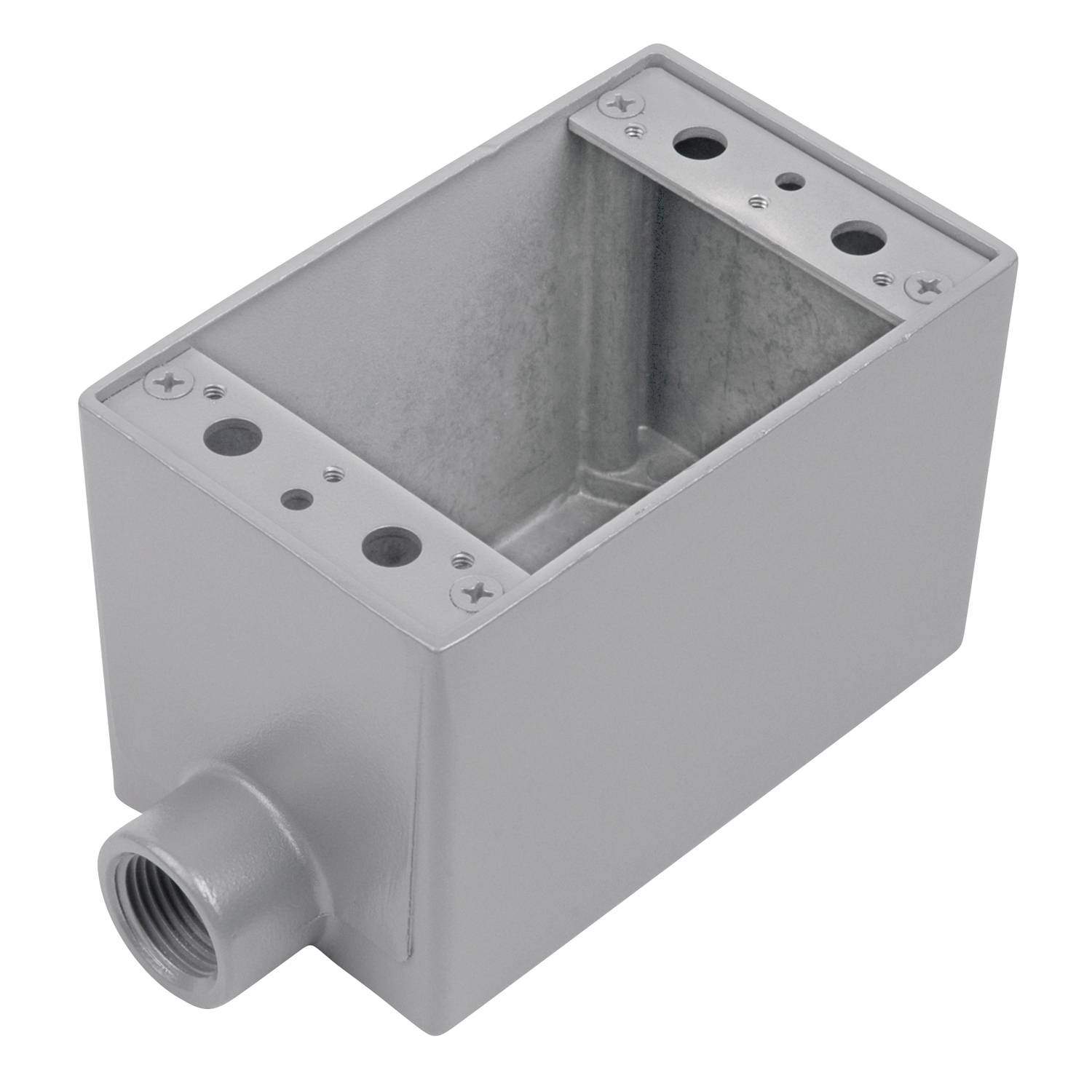

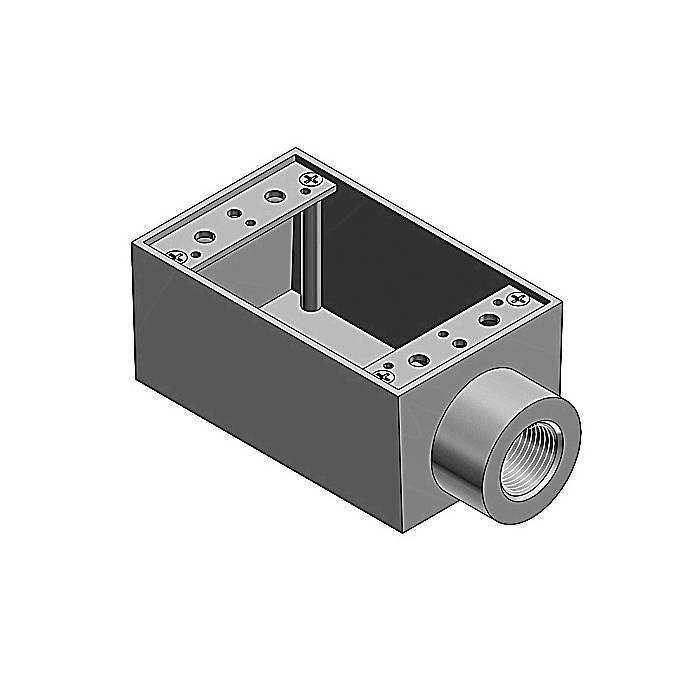

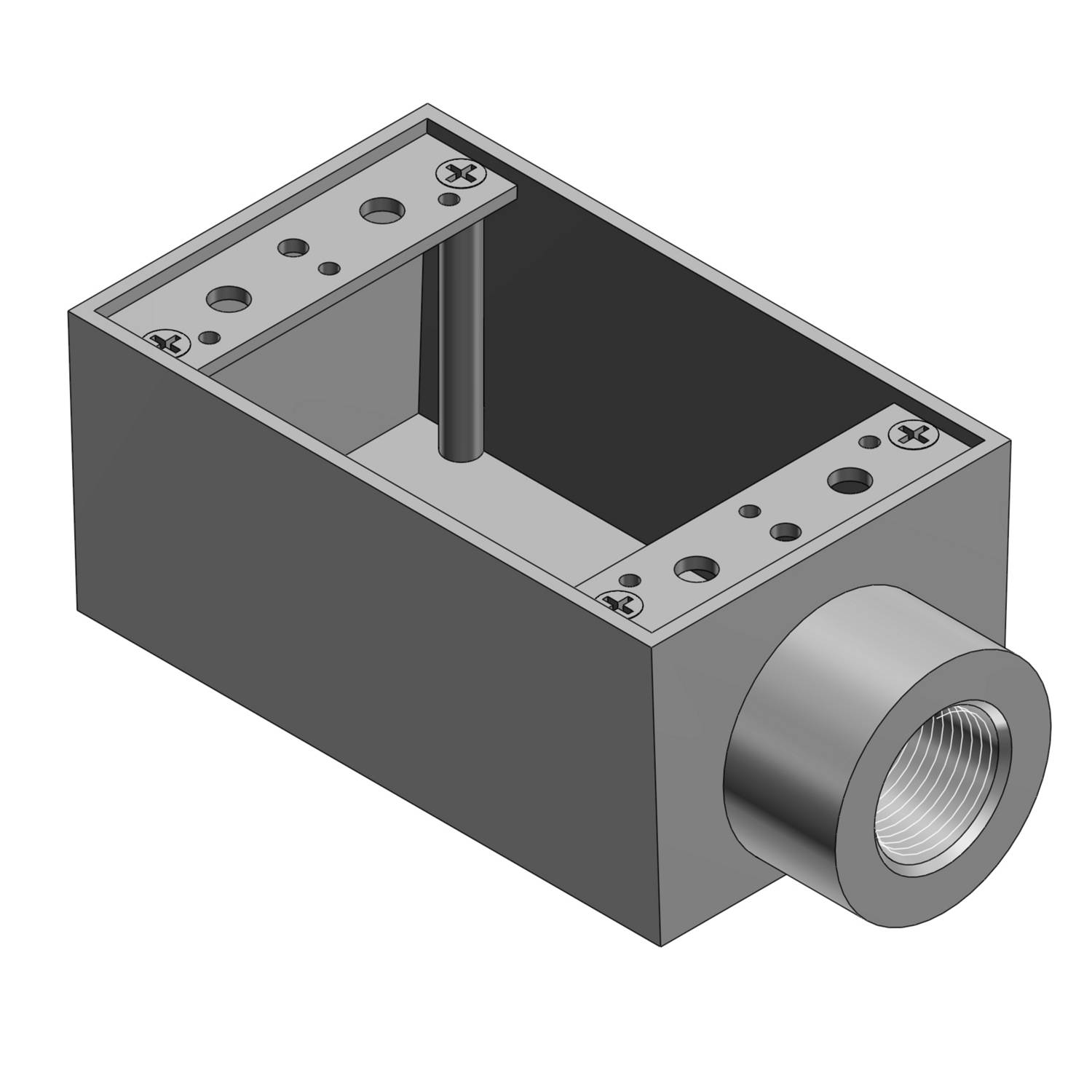

T&B® AFS-1 Type FS Dead End Shallow Style Device Box, Die Cast Aluminum, 21.6 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 2-13/16 in W x 2-1/16 in D x 4-9/16 in H

Short Description

2-13/16" x 2-1/16" x 4-9/16", 1-Gang, 1-Hub, Die-Cast Aluminum, FS, Weatherproof Device Box

T&B® Device Box, Type FS Dead End Shallow Style, 1 Outlets, 1 Gangs, 1 Knockouts, 1/2 in Hub, NPT Hub, Hub Cable Entry Size, Surface Mount, 21.6 cu-in, Die Cast Aluminum, Aluminum Lacquered, 2-13/16 in W x 2-1/16 in D x 4-9/16 in H
MFG #: AFS-1

EECO #: TBAFS1

Brand: Thomas & Betts
UPC #: 042269304109
Attributes
Features
Documents
Product Information
Attributes
Finish
Aluminum Lacquered
UNSPSC
39121315
Approval
UL, CSA
Hub Size
1/2
Material
Die Cast Aluminum
Application
For industrial grade device boxes, raintight covers protect wiring devices, switches, electronic components, terminal blocks in dry, damp and wet locations
Hub Location
(1) One End
Mounting Type
Surface
Number of Hubs
1
Number of Gangs
1
Number of Outlets
1.0000
Number of Knockouts
1.0000
Type
Type FS Dead End Shallow Style
Depth
2-1/16 Inch
Width
2-13/16 Inch
Height
4-9/16 Inch
Capacity
21.6
Dimensions
2-13/16 in W x 2-1/16 in D x 4-9/16 in H
Mounting Hardware
Plate
Features
  • Copper-free aluminum, stainless steel cover springs and hinge pins provide increased corrosion-resistance
  • Die cast construction, boxes with securely fastened mounting plates and industrial designed covers combine to produce a rugged protective enclosure for devices on industrial and OEM applications
  • Clean cover edges provide good gasket sealing
  • Precision NPT threaded hubs allow trouble-free field installation for rigid or IMC conduit
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Boxes external hub design provides increased wiring room
  • Covers ship complete with gaskets and screws
  • Industrial grade FS/FD device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations
  • Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction for branch conduit
  • Aluminum boxes can be used with steel rigid conduit
  • (1) end hub cable entry
  • Raintight when used with appropriate cover
THOBETE68451_E87_E88
IDW_DOCUMENT_923522b0d34cae87560d62ef0eb07926b743dc56337ebdbfd7ba4f1ab5a7486e
Qty Unit price
Ea
1 $24.47

Slqt
1 $122.35

Stpk
1 $122.35

Unit
1 $122.35
