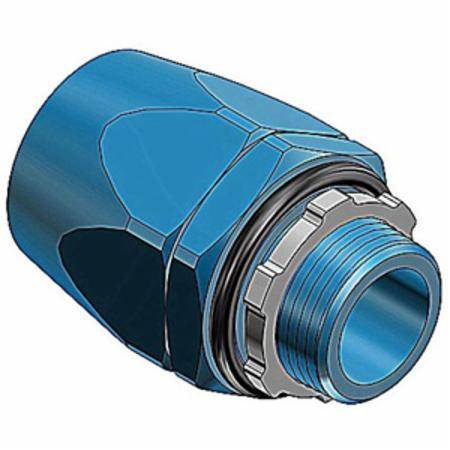

T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated
Share Share Print Print
ABB

T&B® 6303 Straight Conduit Connector With Captive Sealing O-Ring, Tapered Hub Thread, 3/4 in Trade, Thermoplastic, Electro-Zinc Plated

Short Description

T&B® Liquid Tight® fittings for flexible conduits are suitable for a wide range of installations. Our Liquid Tight® Fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

T&B® Conduit Connector, Straight, 3/4 in, For Use With: Type A Liquid Tight Flexible Non-Metallic Conduits, Thermoplastic, Electro-Zinc Plated

MFG #: 6303

EECO #: TB6303

Brand: Thomas & Betts
UPC #: 786210063034
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121420
Material
Thermoplastic
Trade Size
3/4
Application
For provide a liquid tight, dusttight connection between flexible, non-metallic conduit and a box or an enclosure
Throat Type
Insulated
Type
Straight
Suitable For Use With
Type A Liquid Tight Flexible Non-Metallic Conduits
Features
  • Serrated design provides high mechanical pull-out strength
  • Unique component parts (body/gland) design ensures positive seal between conduit and connector
  • Tapered threaded hub and furnished neoprene sealing O-ring provide a liquid tight, dust tight seal to a box or enclosure
  • Smooth insulated body throughout for maximum dielectric strength
  • Captive o-ring and reduced number of parts save installation time
  • 0.61 in L thread
