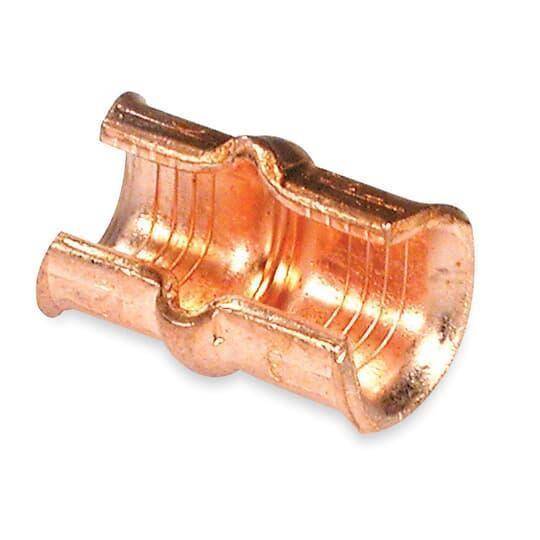

Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper
Share Share Print Print
ABB

Color-Keyed® 54610 Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in L, Copper

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high-quality connection.

Color-Keyed® Wire Joint, 600 VAC, 12 to 10 AWG Wire, 0.407 in Length, 90 deg C, For Use With: Pigtailing, Tapping Multiple Conductor or 2-Way Splicer, Specifications: 24 Die Code, Copper, Blue, Tin Plated, 0.37 in Dia

MFG #: 54610

EECO #: TB54610

Brand: Color-Keyed
UPC #: 786210546100
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
Finish
Tin Plated
Length
0.407
UNSPSC
39121452
Material
Copper
Wire Size
12 to 10
Application
Pigtailing, Tapping Multiple Conductors or 2-Way Splicing
Voltage Rating
600
Temperature Rating
90
Dimensions
0.37 in Dia
Specifications
24 Die Code
Suitable For Use With
Pigtailing, Tapping Multiple Conductor or 2-Way Splicer
Features
  • Offers lowest installed cost
  • Form a permanent installation in minimal space, easily insulated
  • Color coded to dies for positive matching and compression
  • All-around compression ensures high conductivity, low resistance and high pull-out values exceeding CSA requirements
  • Application tool TBM25S, TBM8, TBM8S, TBM5, TBM5S, TBM6, TBM6S
  • 19590 to 27290 circular mil area
  • (3) 12 AWG solid/stranded, (2) 10 AWG with (1) 12 AWG solid/stranded
Color_Keyed_54610_Specification_Sheet
