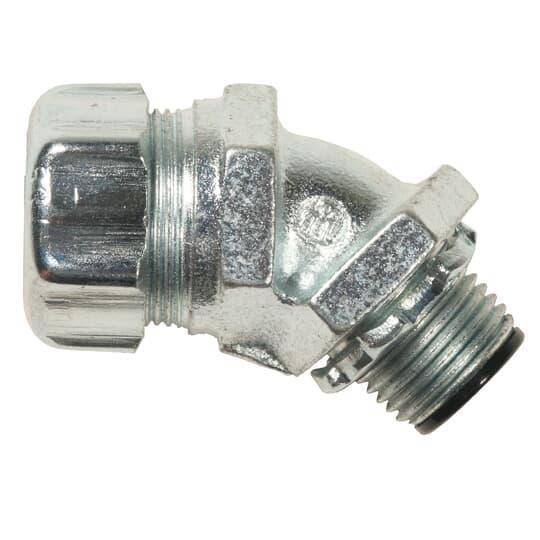

T&B® 5344-HT High Temperature Insulated Conduit Connector, 1 in Trade, 45 deg, Malleable Iron, Clear Chromate Coated/Zinc Plated

Short Description

T&B® Liquid Tight® fittings for flexible conduits are suitable for a wide range of installations. Our Liquid Tight® Fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

T&B® Conduit Connector, High Temperature Insulated, Series: 53 Series, 1 in, 45 deg, For Use With: Liquid Tight Flexible Metal Conduits, Malleable Iron, Clear Chromate Coated/Zinc Plated

MFG #: 5344-HT

EECO #: TB5344HT

Brand: Thomas & Betts
UPC #: 786210910321
Attributes
Features
Documents
Product Information
Attributes
Finish
Clear Chromate Coated/Zinc Plated
UNSPSC
39121420
Used On
Liquidtight Flexible Metallic Conduit
Approval
UL, CSA, CE
Material
Malleable Iron
Trade Size
1
Application
For applications where termination into a threaded opening is required the fitting shall have external tapered NPT threads and where termination into a threadless opening is required use an acceptable sealing ring
Throat Type
Insulated
Type
High Temperature Insulated
Angle
45
Series
53 Series
Suitable For Use With
Liquid Tight Flexible Metal Conduits
Features
  • Double beveled sealing ring designed with 5 unique sealing mechanisms and cannot be installed backwards
  • Sure-tight gland deflects water away from connector and prevents pooling of moisture
  • Safe Edge® ground cone provides superior bonding, stronger pull-out, easy threading and conductor protection
  • Double plating for superior corrosion protection
  • Heat curled insulator molded inside body provides excellent wire protection and easier glide of conductors through and into the fitting
  • Where liquid tight flexible metal fittings are required in high temperature environments up to 150 deg C
  • The fitting shall have a plastic throat insulator to protect conductors
  • 3/4 in L thread
