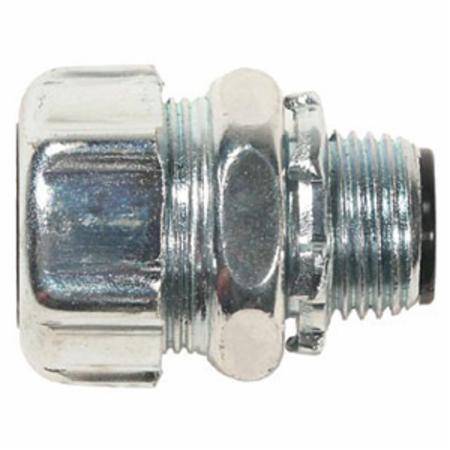

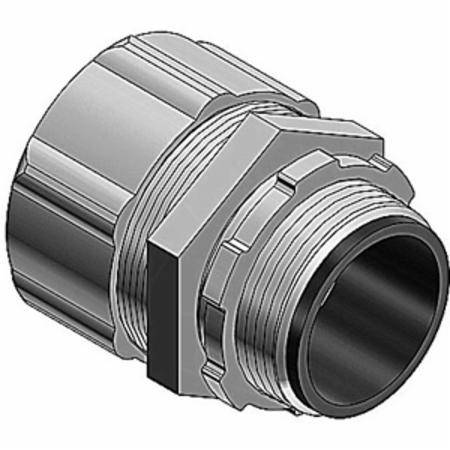

T&B® 5333-HT High Temperature Insulated Straight Conduit Connector, 3/4 in Trade, Steel, Clear Chromate Coated/Zinc Plated

Short Description

T&B® Liquid Tight® fittings for flexible conduits are suitable for a wide range of installations. Our Liquid Tight® Fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

T&B® Conduit Connector, High Temperature Insulated Straight, Series: 53 Series, 3/4 in, For Use With: Liquid Tight Flexible Metal Conduits, Steel, Clear Chromate Coated/Zinc Plated, 1-5/8 in L x 1-21/32 in W

MFG #: 5333-HT

EECO #: TB5333HT

Brand: Thomas & Betts
UPC #: 786210909493
Attributes
Features
Documents
Product Information
Attributes
Finish
Clear Chromate Coated/Zinc Plated
UNSPSC
39121420
Material
Steel
Trade Size
3/4
Application
For applications where termination into a threaded opening is required the fitting shall have external tapered NPT threads and where termination into a threadless opening is required use an acceptable sealing ring
Throat Type
Thermoplastic Insulated
Type
High Temperature Insulated Straight
Series
53 Series

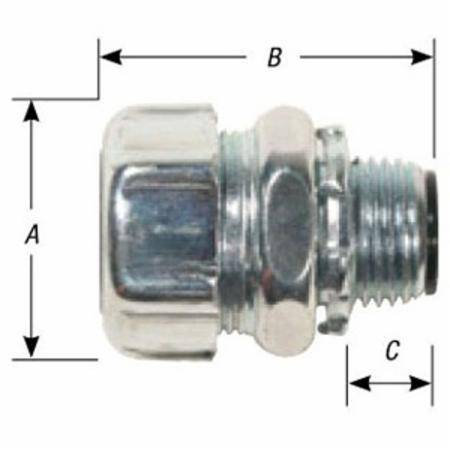

Dimensions
1-5/8 in L x 1-21/32 in W
Suitable For Use With
Liquid Tight Flexible Metal Conduits
Features
  • Double beveled sealing ring designed with 5 unique sealing mechanisms and cannot be installed backwards
  • Sure-tight gland deflects water away from connector and prevents pooling of moisture
  • Safe Edge® ground cone provides superior bonding, stronger pull-out, easy threading and conductor protection
  • Double plating for superior corrosion protection
  • Heat curled insulator molded inside body provides excellent wire protection and easier glide of conductors through and into the fitting
  • Where liquid tight flexible metal fittings are required in high temperature environments up to 150 deg C
  • The fitting shall have a plastic throat insulator to protect conductors
  • 9/16 in L thread
THOBETE35552_1_2
THOBETE68463_E5_E7
THOBETE78478_1
T_B_5354_HT_Specification_Sheet_CA
