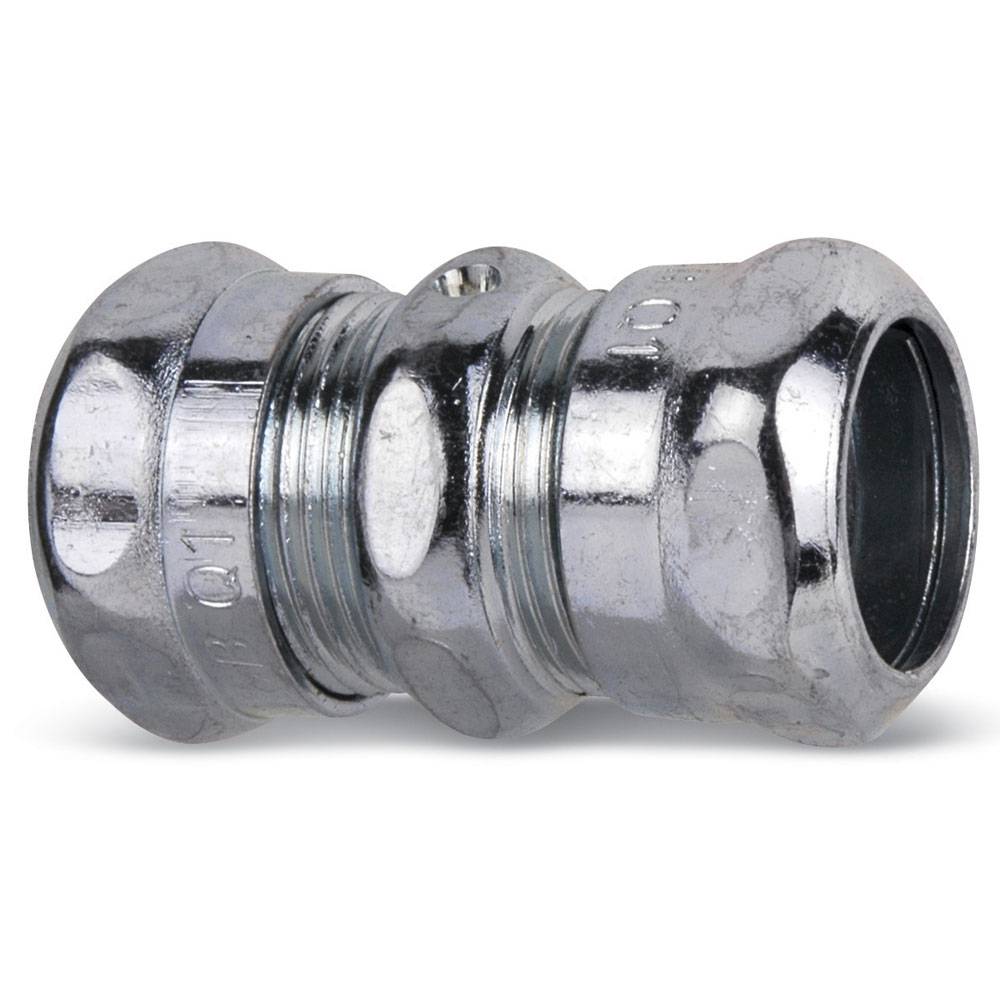

T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated
Share Share Print Print
ABB

T&B® 5220 Conduit Coupling, 3/4 in, For Use With EMT Conduits, Steel, Electro-Zinc Plated

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Conduit Coupling, 3/4 in, For Use With: EMT Conduits, Steel, Electro-Zinc Plated, 1-5/16 in OD x 2-1/8 in L

MFG #: 5220

EECO #: TB5220

Brand: Thomas & Betts
UPC #: 786210052205
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121434
Used On
EMT Conduit
Approval
UL, CSA
Material
Steel
Trade Size
3/4 inch
Application
For use to connect and effectively bond electrical metallic tubing to a box or an enclosure
Size
3/4
Type
Compression
Diameter
1-5/16 Inch
Dimensions
1-5/16 in OD x 2-1/8 in L
Suitable For Use With
EMT Conduits
Constructional Feature
Rain Tight
Features
  • Rugged all steel construction
  • Rings designed to positively bond conduit to fitting, unique locknut design provides effective bond between fitting and box or enclosure, ground continuity is assured
  • Nylon insulator firmly secured in place protects conductors, reduces wire pulling effort and prevents thread damage in handling
  • Locknuts are designed with extended reach to lock fitting on to a thin box or an enclosure
  • Locknuts tighten without deformation; will not vibrate loose
  • To provide a connection between tubing and the connector and to couple ends of tubing
ABB_Thomas_Betts_00177_A102_CAT
ABB_Thomas_Betts_00298_1_SPEC
ABB_Thomas_Betts_00528_1_2_CAD
IDW_DOCUMENT_ae5138bbdaf3d5269a0a510cf7fbc703f8763892ff7a6dbf61741bb68d54eeb8
T_B_5120_Catalog
Qty Unit price
C
1 $526.98

Ea
1 $5.2698

Slqt
1 $5.27

Stpk
1 $263.49

Unit
1 $5.27
