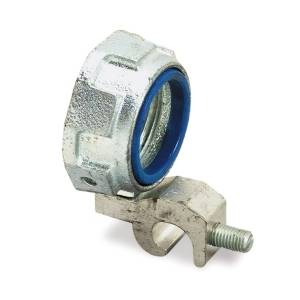

T&B® 3884 Insulated Threaded Grounding Bushing With Aluminum Lug, 1-1/2 in Trade, 8 AWG Wire Min, 2/0 AWG Wire Max, 2.468 in Dia, Malleable Iron

Short Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Grounding Bushing, Insulated Threaded, 1-1/2 in, 8 AWG Minimum Wire Size, 2/0 AWG Maximum Wire Size, 1.449 in, Lay-In Lug Type, 2.468 in Dia, 0.77 in Height, 2.074 in Turning Radius, Malleable Iron, Electro-Zinc Plated

MFG #: 3884

EECO #: TB3884

Brand: Thomas & Betts
UPC #: 786210038841
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121312
Used On
IMC/Rigid Conduit
Approval
CSA, UL (Canada and US)
Material
Malleable Iron
Wire Size
8 to 2/0 AWG
Trade Size
1-1/2
Application
For quick installation of bonding jumper to multiple metal conduit (rigid and IMC), designed to bush conductors and prevent insulation damage
Throat Type
Insulated
Conductor Material
Aluminum/Copper
Type
Insulated Threaded
Height
0.77
Diameter
2.468
Lug Type
Lay-In
Turning Radius
2.074
Maximum Wire Size
2/0
Minimum Wire Size
8
Features
  • Thermoplastic insulator for use with Rigid/IMC conduit
  • Ease of installation, lay-in lug design
  • Cast malleable iron body designed to lock insulator in place within body, reducing common assembly problem resulting in dislodging of insulator
  • Insulator rated for 150 deg C/302 deg F application with 94V-0 flammability
  • 1.675 in L lug
ABB_Thomas_Betts_00011_INST
ABB_Thomas_Betts_00179_11_CAT
ABB_Thomas_Betts_00286_1_SPEC
IDW_DOCUMENT_7fd4fe3c1e0e66c1822e5534a499be7b76fa361348e8f994ffbe127a20554cad
