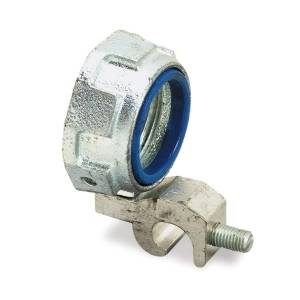

T&B® 3879 Insulated Threaded Grounding Bushing With Aluminum Lug, 4 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 5.328 in Dia, Malleable Iron

Short Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Grounding Bushing, Insulated Threaded, 4 in, 14 AWG Minimum Wire Size, 4 AWG Maximum Wire Size, 3.623 in, Lay-In Lug Type, 5.328 in Dia, 0.98 in Height, 3.314 in Turning Radius, Malleable Iron, Electro-Zinc Plated

MFG #: 3879

EECO #: TB3879

Brand: Thomas & Betts
UPC #: 786210038797
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121312
Used On
IMC/Rigid Conduit
Approval
CSA, UL (Canada and US)
Material
Malleable Iron
Wire Size
14 to 4 AWG
Trade Size
4
Application
For quick installation of bonding jumper to multiple metal conduit (rigid and IMC), designed to bush conductors and prevent insulation damage
Throat Type
Insulated
Conductor Material
Aluminum/Copper
Type
Insulated Threaded
Height
0.98
Diameter
5.328
Lug Type
Lay-In
Turning Radius
3.314
Maximum Wire Size
4
Minimum Wire Size
14
Features
  • Thermoplastic insulator for use with Rigid/IMC conduit
  • Ease of installation, lay-in lug design
  • Cast malleable iron body designed to lock insulator in place within body, reducing common assembly problem resulting in dislodging of insulator
  • Insulator rated for 150 deg C/302 deg F application with 94V-0 flammability
  • 1.31 in L lug
ABB_Thomas_Betts_00011_INST
ABB_Thomas_Betts_00179_11_CAT
ABB_Thomas_Betts_00285_1_SPEC
