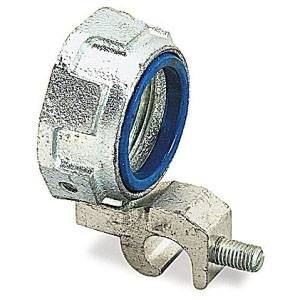

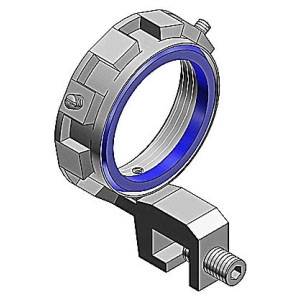

T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron
Share Share Print Print
ABB

T&B® 3875 Insulated Threaded Grounding Bushing With Aluminum Lug, 2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 3.031 in Dia, Malleable Iron

Short Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Grounding Bushing, Insulated Threaded, 2 in, 14 AWG Minimum Wire Size, 4 AWG Maximum Wire Size, 1.86 in, Lay-In Lug Type, 3.031 in Dia, 0.77 in Height, 2.165 in Turning Radius, Malleable Iron, Electro-Zinc Plated

MFG #: 3875

EECO #: TB3875

Brand: Thomas & Betts
UPC #: 786210038759
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121312
Used On
Rigid/IMC Conduit
Approval
UL E3060, CSA
Material
Malleable Iron
Wire Size
14 to 4 AWG
Trade Size
2
Application
For quick installation of bonding jumper to multiple metal conduit (rigid and IMC), designed to bush conductors and prevent insulation damage
Throat Type
Insulated
Conductor Material
Copper/Aluminum
Type
Insulated Threaded
Height
0.77
Diameter
3.031
Lug Type
Lay-In
Turning Radius
2.165
Maximum Wire Size
4
Minimum Wire Size
14
Features
  • Thermoplastic insulator for use with Rigid/IMC conduit
  • Ease of installation, lay-in lug design
  • Cast malleable iron body designed to lock insulator in place within body, reducing common assembly problem resulting in dislodging of insulator
  • Insulator rated for 150 deg C/302 deg F application with 94V-0 flammability
  • 1.31 in L lug
TB3875INST
IDW_DOCUMENT_7fd4fe3c1e0e66c1822e5534a499be7b76fa361348e8f994ffbe127a20554cad
Qty Unit price
C
1 $2,702.19

Ea
1 $27.0219

Slqt
1 $27.02

Stpk
1 $135.11

Unit
1 $27.02
