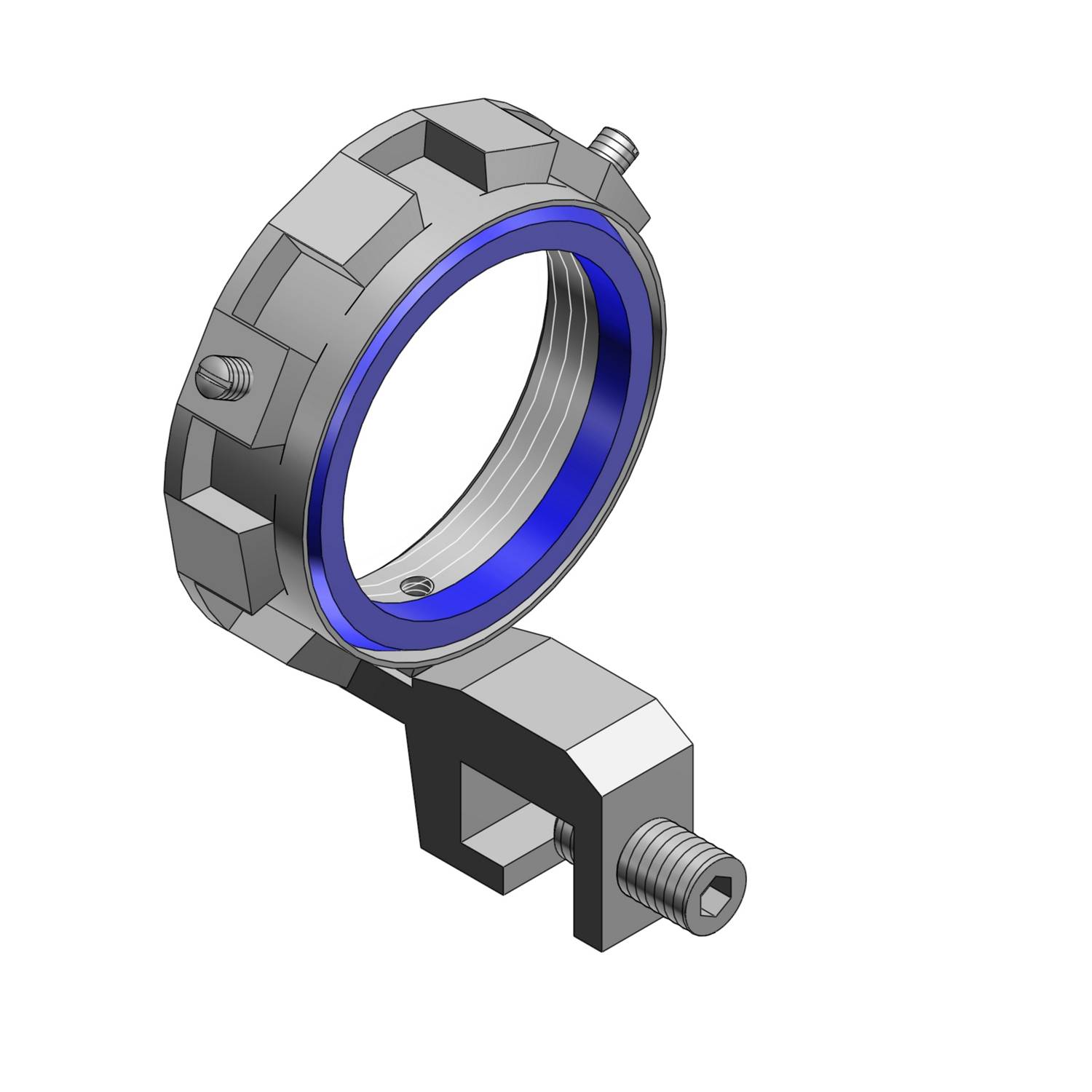

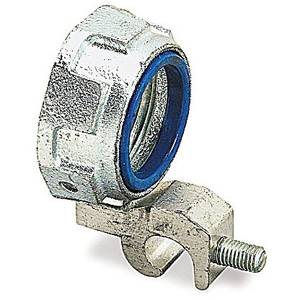

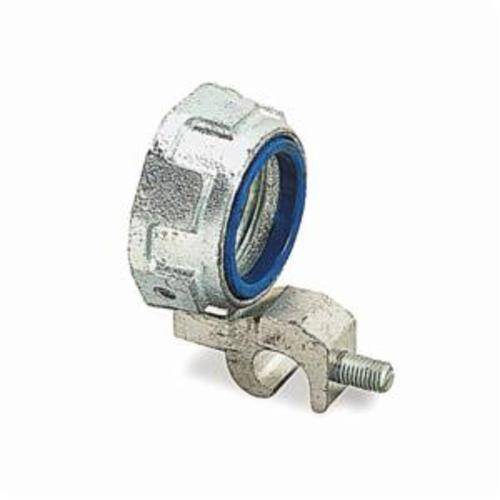

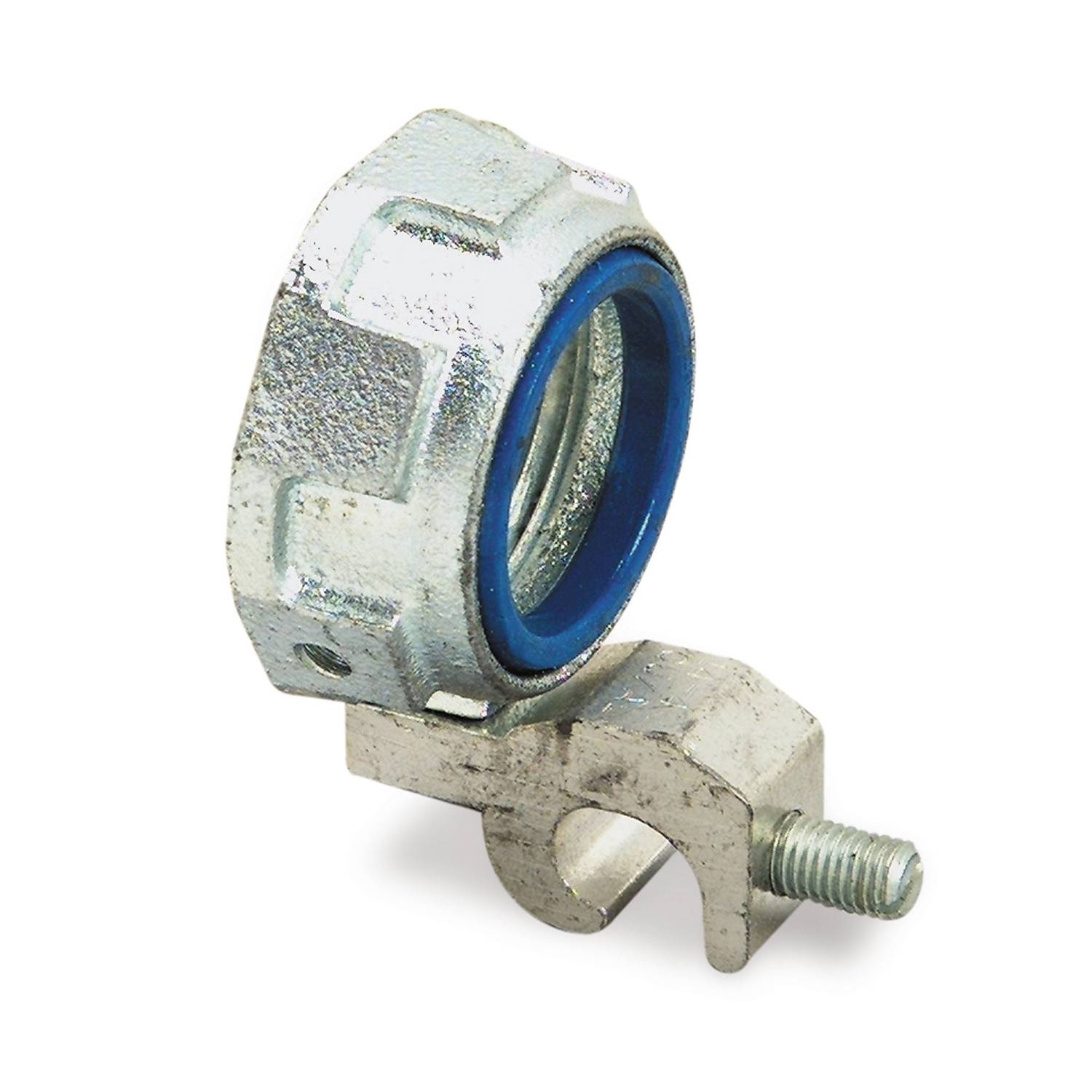

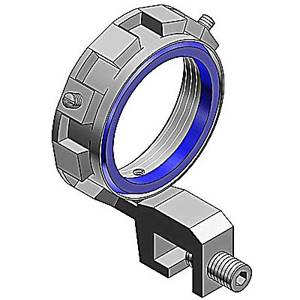

T&B® 3874 Insulated Threaded Grounding Bushing With Aluminum Lug, 1-1/2 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 2.468 in Dia, Malleable Iron

Short Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Grounding Bushing, Insulated Threaded, 1-1/2 in, 14 AWG Minimum Wire Size, 4 AWG Maximum Wire Size, 1.449 in, Lay-In Lug Type, 2.468 in Dia, 0.77 in Height, 1.884 in Turning Radius, Malleable Iron, Electro-Zinc Plated

MFG #: 3874

EECO #: TB3874

Brand: Thomas & Betts
UPC #: 786210038742
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro Zinc Plated
UNSPSC
39121312
Used On
IMC/Rigid Conduit
Approval
UL, CSA
Material
Malleable Iron
Wire Size
14 to 4 AWG
Trade Size
1-1/2
Application
For quick installation of bonding jumper to multiple metal conduit (rigid and IMC), designed to bush conductors and prevent insulation damage
Throat Type
Insulated
Conductor Material
Copper/Aluminum
Type
Insulated Threaded
Height
0.77
Diameter
2.468
Lug Type
Lay-In
Turning Radius
1.884
Maximum Wire Size
4
Minimum Wire Size
14
Features
  • Thermoplastic insulator for use with Rigid/IMC conduit
  • Ease of installation, lay-in lug design
  • Cast malleable iron body designed to lock insulator in place within body, reducing common assembly problem resulting in dislodging of insulator
  • Insulator rated for 150 deg C/302 deg F application with 94V-0 flammability
  • 1.31 in L lug
