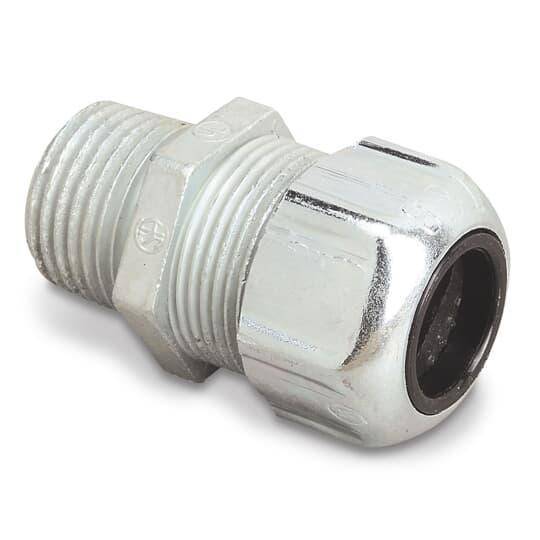

T&B® 2238 Underground Feeder Service Entrance Cable Connector, 3/4 in Knockout, 0.235 x 0.465 in Clamp Opening, Die Cast Zinc
Share Share Print Print
ABB

T&B® 2238 Underground Feeder Service Entrance Cable Connector, 3/4 in Knockout, 0.235 x 0.465 in Clamp Opening, Die Cast Zinc

Short Description

Ensure reliable connections with the T&B® 2238 Underground Feeder Service Entrance Cable Connector. Designed for durability and ease of use, this die cast zinc connector features a 3/4 in knockout and a precise clamp opening for secure installation.Enhanced by AI

T&B® Service Entrance Cable Connector, Underground Feeder, 3/4 in Knockout, 0.235 x 0.465 in Clamp Opening, 0.75 in x 14.288 mm Thread, Die Cast Zinc, Metallic
MFG #: 2238

EECO #: TB2238

Brand: Thomas & Betts
UPC #: 786210022383
Attributes
Features
Documents
Product Information
Attributes
Finish
Metallic
UNSPSC
39121431
Material
Die Cast Zinc
Application
For use to connect non-metallic sheathed cable and flexible cord to a box or enclosure
Knockout Size
3/4
Type
Underground Feeder
Specifications
0.75 in x 14.288 mm Thread
Features
  • Neoprene bushing
  • Resists oil and water
  • Grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
  • Taper threaded body, stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
  • Rugged ribbed steel gland nut is strong and easily tightened with a wrench to make a connection of high strength
  • Suitable for 5.969 to 11.811 mm Dia cable
  • Galvanic/electrolytic zinc plated surface protection
  • Sealing ring
  • 0.235 x 0.465 in cable opening
