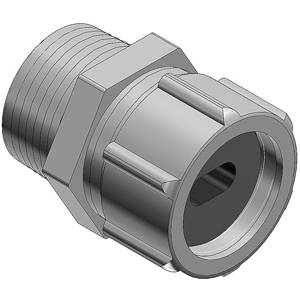

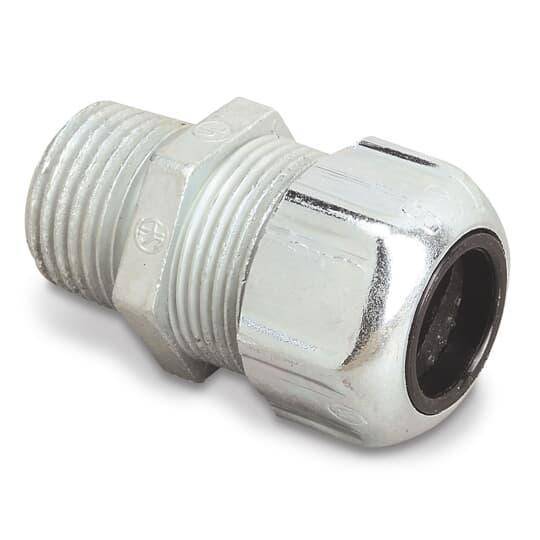

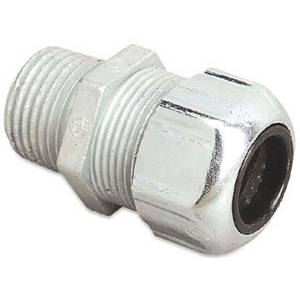

T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc
Share Share Print Print
ABB

T&B® 2116-TB Underground Feeder Service Entrance Cable Connector, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, Die Cast Zinc

Short Description

1/2", 1" x 1-11/16", Die-Cast Zinc, Gland, Tapered Thread, Service Entrance Cable Connector

T&B® Service Entrance Cable Connector, Underground Feeder, 1/2 in Knockout, 0.235 x 0.5 in Clamp Opening, For Use With: Underground Liquidtight Feeder Cable Fitting, 1/2 in Hub, 5/8 in Thread, Die Cast Zinc, Metallic, 1-11/16 in L x 1 in W
MFG #: 2116-TB

EECO #: TB2116TB

Brand: Thomas & Betts
UPC #: 786210021164
Attributes
Features
Documents
Product Information
Attributes
Finish
Metallic
UNSPSC
39121431
Approval
UL
Material
Die Cast Zinc
Trade Size
1/2 Inch
Application
For connecting service entrance cables to a meter box or an enclosure
Knockout Size
1/2
Type
Underground Feeder
Diameter
1 Inch
Dimensions
1-11/16 in L x 1 in W
Thread Length
5/8 Inch
Specifications
1/2 in Hub, 5/8 in Thread
Maximum Opening
0.235 Inch x 0.5 Inch
Minimum Opening
0.06 Inch x 0.35 Inch
Suitable For Use With
Underground Liquidtight Feeder Cable Fitting
Constructional Feature
Liquidtight, Oil Resistant, Water Resistant
Features
  • Grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
  • Oil and water resistant neoprene bushing is especially designed for sealing around underground feeder cable
  • Stainless steel retaining ring provides a bearing surface for the gland nut and eliminates cable twist
  • Ribbed gland nut is strong and easily tightened with a wrench to make a connection of high strength
  • 0.06 in min to 0.235 in max and 0.35 in min to 0.5 in max opening
  • 1-1/8 in maximum gland corners
  • 1-1/8 in maximum body corners
THOBETE17684_1
THOBETE68451_E149_E150
T_B_2433_Specification_Sheet
