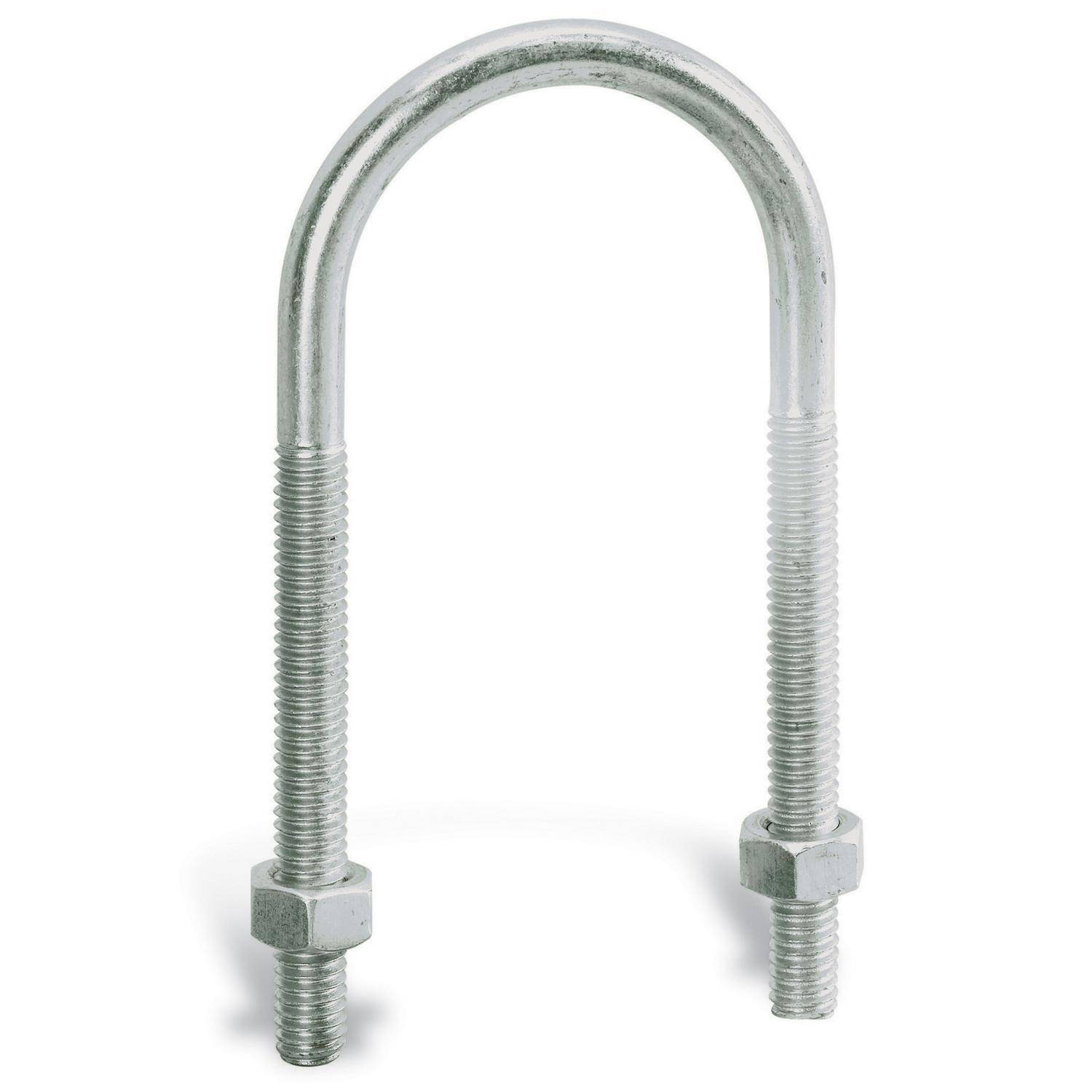

Superstrut® H115-5 H115 Standard U-Bolt, 5 in Trade, 1/2 in Thread, 4000 lb Load, Steel

Short Description

Our standard U-bolt are recommended for use as supports or guides for piping. They are supplied with four hex nuts. The H-115SS is recommended for support of stainless steel piping. Please specify the grade of stainless steel you require when ordering. Load ratings shown are for carbon steel. PVC coating should not exceed 140 deg F/60 deg C.

Superstrut®, H115-5, U-Bolt, Standard, Series: H115, 5 in Trade, 1/2 in Thread, 4000 lb Load, For Use With: 5 in Pipe/Rigid Conduit, Specifications: 2-1/4 in L Thread, Steel, GoldGalv®, 8-5/32 in L Dimensions, 650 deg F
MFG #: H115-5

EECO #: SZH1155

Brand: Superstrut
UPC #: 616013304969
Attributes
Features
Documents
Product Information
Attributes
Finish
GoldGalv®
UNSPSC
31161616
Material
Steel
Trade Size
5
Application
To support anchor or guide pipe lines
Temperature Rating
650
Type
Standard
Series
H115
Includes
(2) Hex Nuts
Warranty
2 years Limited
Dimensions
8-5/32 in L
Thread Size
1/2
Load Capacity
4000
Specifications
2-1/4 in L Thread
Suitable For Use With
5 in Pipe/Rigid Conduit
Features
  • Side loads are given for the H-115 for a maximum temperature of 650 deg F/343 deg C
  • When the loading condition requires the simultaneous application of a normal load and side load, the following interaction equation must be used to determine if the H-115 can be used
  • (Actual load/maximum design load) + (actual side load/maximum side load), the result of this equation cannot exceed the value of 1 if the H-115 is to be used
