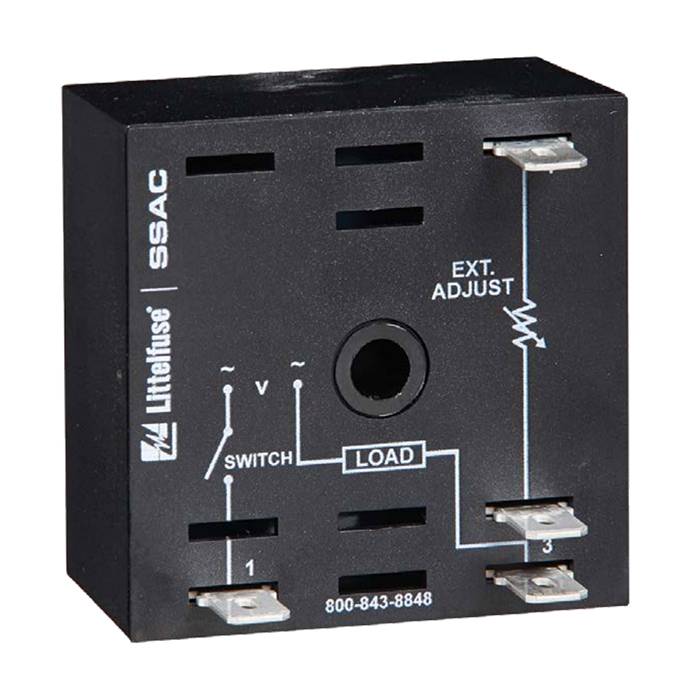

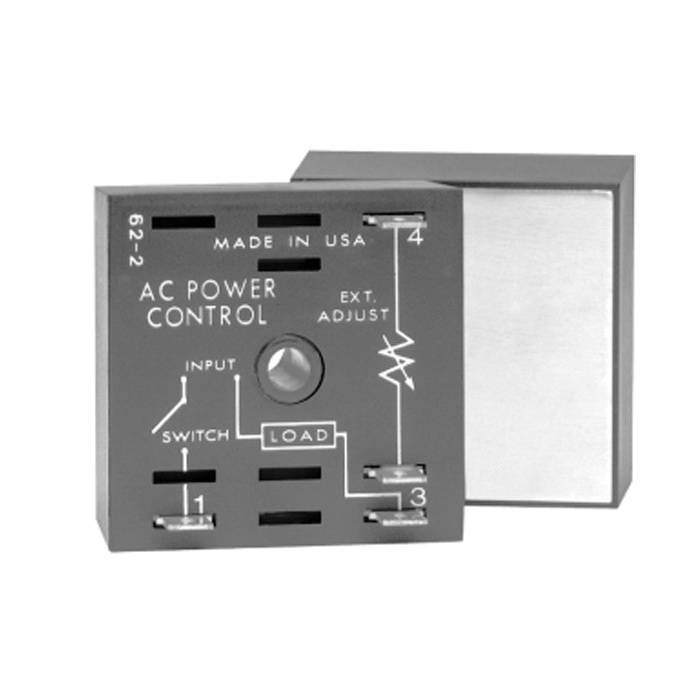

Littelfuse® SSAC® PHS120A20 Phase Control Relay, 20 A, SPST/NO (1 Form A) Contact

Short Description

The PHS series is an ideal method of changing lamp intensity, varying the speed of a fan/motor or controlling the temperature of a heater. The effective output voltage is adjusted with an accessory external potentiometer suitable for line voltage applications.

Littelfuse® SSAC® Phase Control Relay, Series: PHS, 20 A, 50/60 Hz Frequency, SPST/NO (1 Form A) Contact Form, Surface Mounting, Male Quick-Connect Terminal, -20 to 60 deg C, 2 in H x 2 in W x 1.51 in D Dimensions

MFG #: PHS120A20

EECO #: SVPHS120A20

Brand: Littelfuse
UPC #: 079458997804
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122333
Mounting Type
Surface
Terminal Type
Male Quick-Connect
Frequency Rating
50/60
Temperature Rating
-20 to 60
Series
PHS
Warranty
10 Years
Dimensions
2 in H x 2 in W x 1.51 in D
Amperage Rating
20
Features
  • External adjustment 230 VAC rated potentiometer allows control of heavy loads directly, solid state design will provide long life
  • Up to 20 A steady state, 200 A inrush allows control of heavy loads directly, solid state design will provide long life
  • Single hole surface mounting provides quick and easy installation
IDW_DOCUMENT_90029a6cc5c5bc5aa63b523506ce55722345a63a8e65d6ca345335fc9c0d51be
Qty Unit price
Ea
1 $30.54
