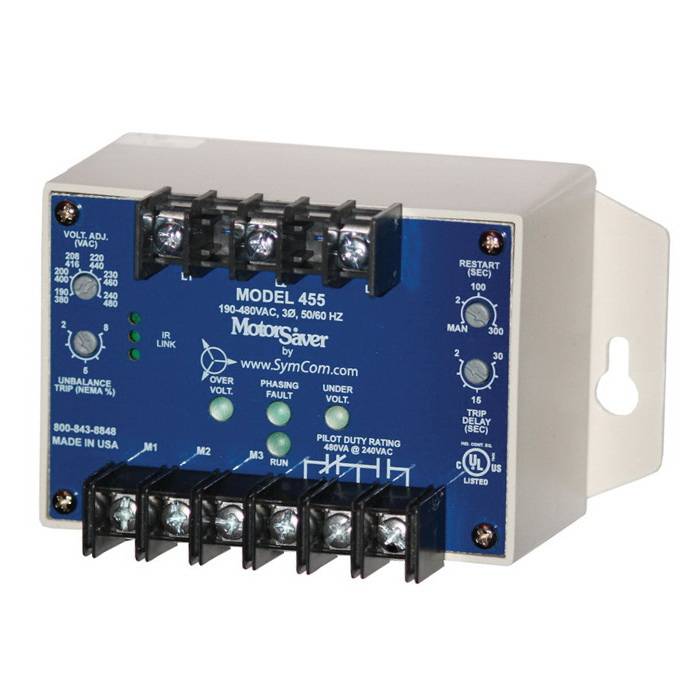

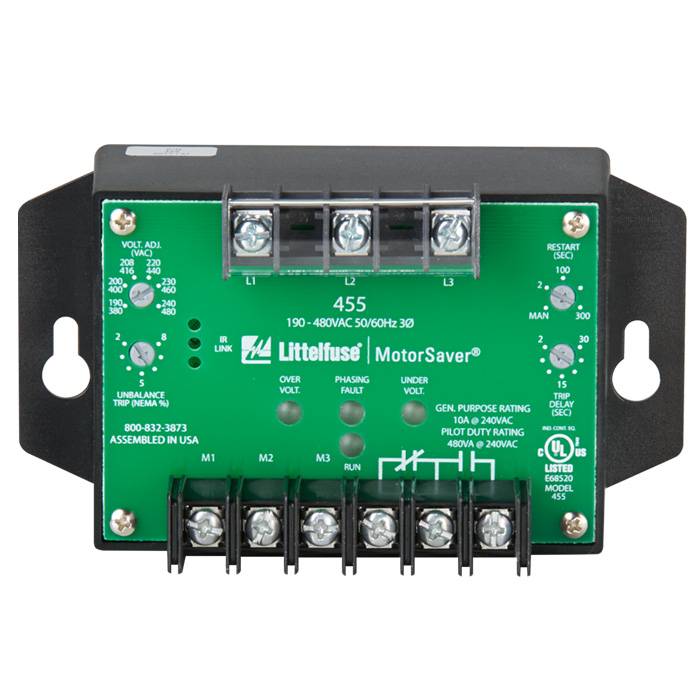

Littelfuse® Symcom 455 3-Phase Dual Range Voltage Monitoring Relay, 190 to 480 VAC, SPDT 1 Form C Contact

The 455 series are 3-phase voltage monitors that combine load and line side monitoring to offer complete protection. Monitoring the load side will alert the user of contactor failure or impending contactor failure. Line side monitoring will also protect the motor from damaging fault conditions that may be present prior to the motor starting. With other line/load side monitors, the motor must be started before a voltage fault is detected. With the 455, your motor is fully protected at all times. The 455 series are 3-phase, dual range voltage monitors that protect 190 to 480 VAC, 50/60 Hz motors, regardless of their size. It automatically selects between the 200 VAC and 400 VAC range when the user selects the nominal voltage set point. Other adjustments include a 2 to 30 s trip delay, a 2 to 300 s restart delay (and manual restart) and a voltage unbalance trip point of 2 to 8%. The voltage monitor's circuitry is powered through the line side connections, so there is no need for separate control power, making it easy to install. Equipped with an infrared LED, the 455 series can communicate to the optional hand held diagnostic tool, Informer-MS to obtain valuable information such as real time voltage, voltage unbalance on both line and load sides, motor run hours, last 20 faults, last 32 motor starts, high and low voltage trip points, voltage unbalance trip point, restart and trip delay settings, LED status and more.

Littelfuse® Symcom Voltage Monitoring Relay, 3-Phase Dual Range, Series: 455, 190 to 480 VAC, 50/60 Hz Frequency, SPDT 1 Form C Contact Configuration, Threaded Mounting, 2 to 30 s Trip Delay, 5.27 in W x 2.95 in D x 2.93 in H Dimensions
